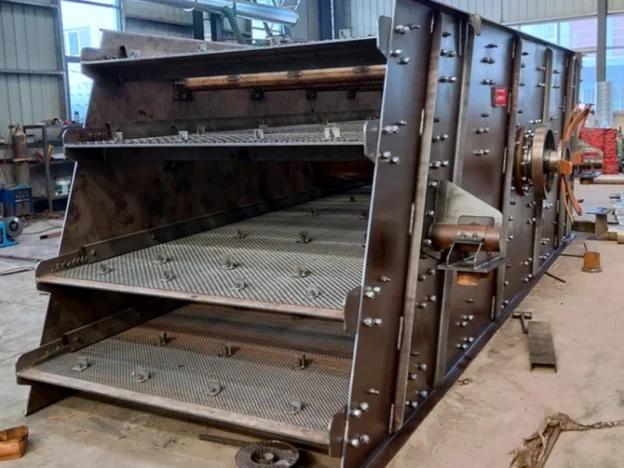

Three-Deck Circular Vibrating Screen (Heavy-Duty Mining Model)

Product Overview

The three-deck circular vibrating screen (heavy-duty mining model) is a heavy-duty screening equipment specially designed for multi-particle size classification. Driven by a top eccentric block exciter, the screen body makes circular motion vibration, and is equipped with three layers of differentiated screen surfaces (upper punched screen plate, middle woven screen mesh, lower fine screen mesh), focusing on the three-stage accurate classification of ore, sand and gravel and other materials. The equipment has large processing capacity and high classification accuracy, suitable for heavy working conditions such as large-scale mines and sand and gravel plants. It can separate three kinds of finished materials with different particle sizes at one time, and has the advantages of wear resistance, durability and stable operation.

Core Specifications

Model	Screen Surface Size (L×W) mm	Processing Capacity (t/h)	Excitation Frequency (r/min)	Motor Power (kW)	Equipment Weight (t)
YS1836	1800×3600	100-250	700-850	22	8.2-9.0
YS2040	2000×4000	150-350	700-850	30	10.5-11.5
YS2448	2400×4800	200-450	700-850	37	14.5-15.8

Product Advantages & Technical Highlights

Three-stage Classification: Multi-screen surface combination, completing three-stage screening at one time
Durable Structure: Heavy-duty frame + spring shock absorption, withstanding harsh working conditions
Accurate Screening: Circular vibration trajectory, fast material stratification and high classification accuracy
Efficient Processing: Large flow design, adapting to heavy production needs
Wide Adaptability: Suitable for multi-particle size materials and compatible with various industries

Applicable Scenarios & Materials

Applicable Scenarios

Large-scale mines: Multi-stage classification of ore raw materials, separation of oversize lumps
Large-scale sand and gravel plants: Fine classification of sand and gravel raw materials, standardized processing of aggregates
Building material factories: Multi-stage classification of crushed construction waste, purification of recycled materials
Coal mines: In-depth classification of raw coal, fine separation of gangue

Applicable Materials

Core materials: Ore raw materials, sand and gravel rough materials, construction waste blocks
Adaptable materials: Raw coal, tailings coarse materials, multi-specification aggregates

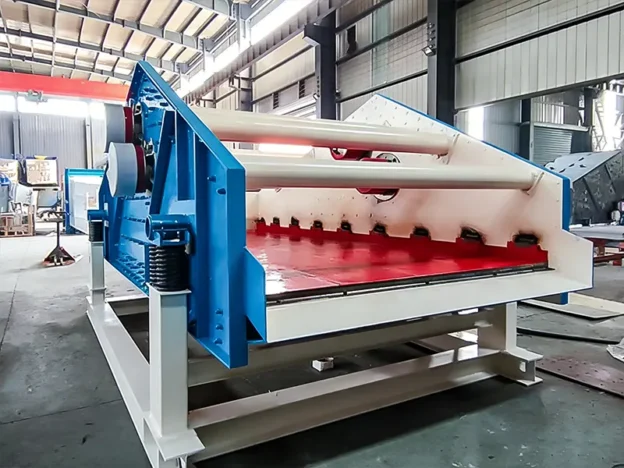

High Frequency Dewatering Vibrating Screen – Industrial Dewatering Equipment

Leave a reply

Product Overview

High frequency dewatering vibrating screen is a special equipment for dewatering and dry discharge of high water content materials, suitable for mining, sand and gravel, coal washing and other industries, focusing on the dewatering treatment of tailings, sand and gravel, slime and other materials. The equipment is driven by double exciter high frequency, equipped with polyurethane wear-resistant anti-blocking screen surface and modular structure, with convenient disassembly, assembly and maintenance, and excellent dewatering efficiency. Multiple models cover the processing capacity of 20-220t/h, which can flexibly adapt to different working conditions, and has the advantages of energy saving, low consumption and environmental compliance, helping the resource utilization of materials.

Core Parameters

Model	Screen Surface Size (L×W) mm	Processing Capacity (t/h)	Excitation Frequency (r/min)	Vibration Amplitude (mm)	Motor Power (kW)	Equipment Weight (t)	Overall Dimensions (L×W×H) mm
TS1530	1500×3000	20-40 / 30-60 / 15-30	2800	1.8-2.2	2×5.5	3.2-3.8	4500×2200×2500
TS1836	1800×3600	40-70 / 60-100 / 30-50	2800	2.0-2.5	2×7.5	5.5-6.2	5200×2600×2800
TS2040	2000×4000	60-100 / 80-150 / 40-70	2800	2.2-2.8	2×11	7.8-8.5	5800×2900×3000
TS24482	2400×4800	100-160 / 120-220 / 70-120	2800	2.5-3.0	2×15	11.5-12.8	6800×3500×3300

Product Advantages & Technical Highlights

Excellent structure: Modular design for easier disassembly, assembly and maintenance
Hard core material: Polyurethane wear-resistant screen surface, anti-blocking and durable
High efficient dewatering: High frequency excitation technology with outstanding dry discharge effect
Energy-saving operation: Driven by low-consumption motor to save operation cost
Scene adaptation: Full coverage of multiple models for screening various materials

Applicable Scenarios & Materials

Scenarios

Mining: Mine tailings dry discharge, concentrate dewatering
Sand and gravel: Washed sand dewatering, fine sand recovery and dewatering
Coal: Slime dewatering, raw coal desliming and screening
Environmental protection: Sludge dewatering, construction waste fine material dewatering

Materials

Core materials: Tailings, washed sand, slime, fine sand
Adaptable materials: Sludge, raw coal, construction waste fine material, ore fine powder

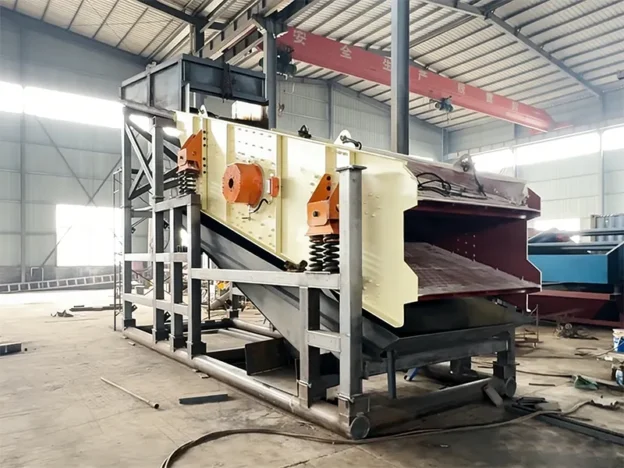

Single-layer Sand and Gravel Dewatering Screen

Leave a reply

Product Overview

The single-layer sand and gravel dewatering screen is a high-frequency vibrating screen specially designed for sand and gravel dewatering. It is equipped with a cloth roller shaft on the top to realize uniform feeding, matched with a red polyurethane wear-resistant screen surface and a side-mounted exciter, focusing on the dewatering and dry discharge of high water content materials such as washed sand, fine sand and tailings. The equipment runs stably with high dewatering efficiency, suitable for sand and gravel plants, mineral processing plants and other scenarios. It can reduce the water content of sand and gravel to 8%-12%, and has the advantages of wear resistance, anti-blocking, low consumption and energy saving.

Core Specifications

Model	Screen Surface Size (L×W) mm	Processing Capacity (t/h)	Excitation Frequency (r/min)	Motor Power (kW)	Equipment Weight (t)
TS1530S	1500×3000	20-40 / 30-60 / 15-30	2800	2×5.5	3.5-4.0
TS1836S	1800×3600	40-70 / 60-100 / 30-50	2800	2×7.5	5.8-6.5
TS2040S	2000×4000	60-100 / 80-150 / 40-70	2800	2×11	8.0-8.8

Product Advantages & Technical Highlights

Excellent structure: Modular design for convenient disassembly, assembly and maintenance
Hard core material: Polyurethane wear-resistant screen surface, anti-blocking and durable
High efficient dewatering: High frequency excitation technology for outstanding dry discharge effect
Energy-saving operation: Driven by low-consumption motor to save operation cost
Scene adaptation: Full coverage of multiple models, suitable for screening various materials

Applicable Scenarios & Materials

Scenarios: Sand and gravel plant, mineral processing plant, building materials plant

Core Materials: Washed sand, fine sand, tailings sand

Adaptable Materials: Manufactured sand, coal slime, ore fine powder

Main Applications: Washed sand dewatering, fine sand recovery, tailings dry discharge, concentrate dewatering, aggregate desliming

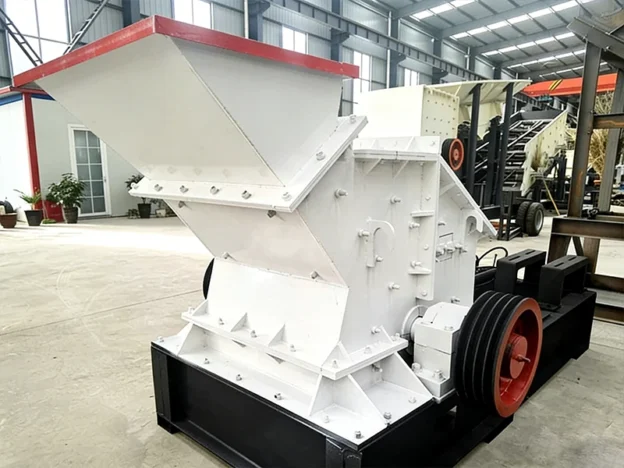

Hydraulic Open-box Sand Making Machine

Leave a reply

Product Overview

The hydraulic open-box sand making machine adopts the composite crushing principle of stone hitting stone and stone hitting iron, and is core equipped with one-key hydraulic open cover structure, focusing on the integrated sand making and shaping operation of medium-hard ores such as river pebbles, granite and basalt. The equipment realizes impact crushing and independent shaping of materials through high-speed rotating hammers. The finished sand has round particle shape and reasonable gradation, fully meeting the requirements of national standard manufactured sand. The hydraulic cover opening design allows the replacement of wearing parts without large hoisting equipment, greatly shortening the downtime. It is suitable for sand and gravel plants, infrastructure project sites, tailings recycling and other scenarios, with the core advantages of high sand making efficiency, convenient maintenance and excellent particle shape, and is the core sand making equipment for small and medium-sized sand and gravel production lines.

Core Parameters

Model	Feed Inlet Size (mm)	Feed Size (mm)	Product Size (mm)	Discharge Adjustment Width (mm)	Capacity (t/h)	Motor Power (kw)
800×400	400×185	<120	<5	5-20	20-30	30
800×800	550×330	<180	<5	5-20	35-45	45
1000×1000	500×350	<180	<5	5-20	45-55	75
1200×1000	700×400	<180	<5	5-20	80-110	132
1200×1200	1200×450	<180	<5	5-20	100-110	132
1400×1200	1500×500	<190	<5	5-20	100-150	160
1600×1600	1600×550	<190	<5	5-20	170-210	200
1800×1800	1800×600	<190	<5	5-20	250-300	315

Product Advantages & Technical Highlights

Hydraulic Quick Opening: One-key hydraulic cover opening, no hoisting equipment needed for wearing parts replacement, disassembly and assembly completed in 5-10 minutes, greatly reducing downtime loss.
Excellent Particle Shape: Stone hitting stone self-shaping process, the finished sand has no needle flake shape and uniform gradation, meeting the sand use standards of high-speed rail, municipal administration, real estate and other scenarios.
Wear Resistant: Hammers and liners are made of high chromium alloy wear-resistant material, with strong impact and wear resistance, greatly improving the service life of wearing parts.
High Efficiency Sand Making: Optimized crushing cavity design, sufficient material crushing without blockage, integrated sand making and shaping, fine crushing and sand making can be completed with a single machine.
Flexible Adaptation: The discharge gap can be accurately adjusted to adapt to the demand of manufactured sand with different specifications of 0-5mm, and even beginners can operate it quickly.

Applicable Scenarios & Materials

Sand and gravel production plant: Sand making from river pebbles, granite, basalt, limestone and other raw materials, mass production of high-quality national standard manufactured sand.
Infrastructure project site: On-site sand making near road, bridge and resettlement housing construction sites, saving raw material transportation costs and improving construction efficiency.
Mine tailings recycling: Crushing and sand making from tailings of metal mines and non-metal mines, realizing secondary utilization of resources and increasing additional income.
Construction waste treatment: Regenerative sand making from concrete blocks, waste brick residue and other construction waste, meeting environmental protection requirements and reducing construction waste treatment costs.

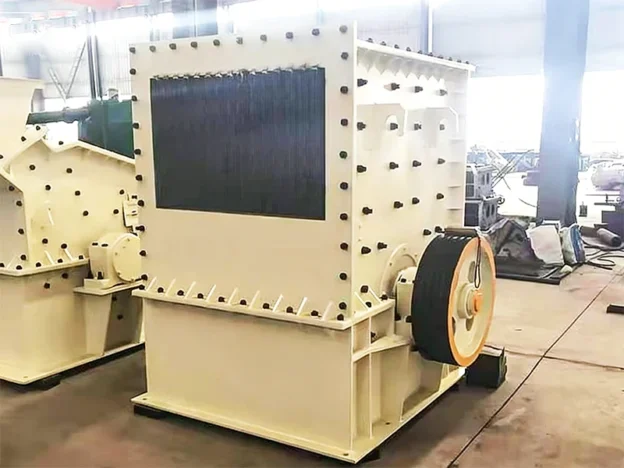

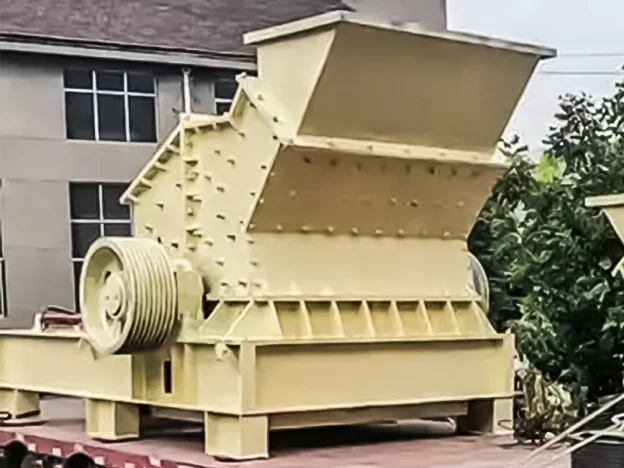

Box Type Sand Making Machine – Heavy Duty Sand Crusher For Large Raw Material

Leave a reply

Product Overview

The box type sand making machine is a heavy-duty box type sand making core equipment specially designed for crushing large raw materials into sand. It adopts the heavy hammer impact crushing principle, combined with a square box type closed crushing cavity and a large torque rotor design, which can directly process large raw stones. The fine sand making of materials is realized through repeated impact and grinding of heavy hammers in the cavity without pre-coarse crushing process. The equipment can process hard and soft materials such as river pebbles, granite, basalt and construction waste. The finished sand has regular particle shape and reasonable gradation, meeting the national standard of manufactured sand requirements. It is suitable for sand production plants, mine crushing, infrastructure engineering and other scenarios, with the advantages of large feed size, high crushing ratio and stable operation, and is the preferred equipment for sand making of large raw materials.

Core Parameter Specification

Specification Model	Rotor Diameter (mm)	Rotor Length (mm)	Output (t/h)	Feed Size (mm)	Power for 300MPa Stone (kw)
700×1000	700	1000	50-80	≤500	45-55
900×1200	900	1200	70-100	≤800	75-90
1000×1000	1000	1000	90-120	≤800	75-90
1200×1200	1200	1200	130-160	≤900	110-132
1400×1400	1400	1400	190-210	≤1000	132-160
1600×1600	1600	1600	250-300	≤1000	160-210
1800×1800	1800	1800	300-400	≤1200	210-280

Product Advantages & Technical Highlights

Large feed inlet design: Can directly process large raw stones without pre-coarse crushing equipment, reducing processes and investment.
Suitable for both hard and soft materials: Heavy hammer + thick-walled crushing cavity with strong impact crushing force, efficient processing of river pebbles, granite, construction waste, etc.
Ultra-high crushing ratio: Fine sand making of large materials can be completed with one feeding, the crushing ratio can reach 50:1, greatly improving sand making efficiency.
Wear-resistant and durable: Hammers and liners are made of high chromium alloy wear-resistant material, with strong impact resistance and wear resistance, greatly extending the service life of wearing parts.
Convenient and efficient maintenance: Side door/upper flip cover design, no large hoisting equipment needed, easy replacement of wearing parts, shortening downtime for maintenance.

Applicable Scenarios & Materials

Sand production plants: Direct sand making of large river pebbles, granite, basalt, limestone and other raw stones, eliminating the coarse crushing link and reducing production investment.
Mine crushing field: Fine sand making of large mine ores, connecting the subsequent mineral processing or building materials production process, improving ore utilization rate.
Infrastructure engineering projects: On-site sand making for roads, bridges, real estate projects, processing large raw materials nearby, saving raw material transportation and coarse crushing costs.
Solid waste recycling: Crushing and sand making of large construction waste, ore tailings, cement blocks, etc., realizing secondary resource utilization and balancing benefits and environmental protection.

Impact Sand Making Machine – High Efficiency PF/PFV Series Sand Maker

Leave a reply

Product Overview

The impact sand making machine is a high-efficiency impact sand making equipment specially designed for crushing and sand making of soft and medium-hard materials. It adopts the impact + counterattack double crushing principle, impacts materials through the high-speed rotating hammer plate, and then repeatedly impacts and grinds through the counterattack plate to realize the integrated operation of fine crushing and shaping of materials. The equipment can process soft and medium-hard materials such as limestone, gangue and construction waste. The finished sand has round particle shape and reasonable gradation, meeting the national standard of manufactured sand. It is suitable for sand and gravel plants, infrastructure projects, solid waste recycling and other scenarios, with the advantages of large crushing ratio, excellent particle shape and convenient maintenance, and is the core equipment for mass production of high-quality manufactured sand.

Core Parameter Specification

Model	Feed Inlet Size (mm)	Feed Particle Size (mm)	Production Capacity (t/h)	Motor Power (kw)
PF-1007	400×730	0-250	15-60	45
PF-1010	400×1080	0-300	50-90	55
PF-1210	450×1060	0-300	80-150	90
PFV-1214	450×1440	0-300	100-200	132
PFV-1315	550×1330	0-350	210-220	185
PFV-1320	610×1900	0-500	220-250	220
PFV-1520	830×2040	0-700	300-500	(220-250)×2

Product Advantages & Technical Highlights

Excellent Particle Shape: Impact + counterattack double crushing, the finished sand is round without needle flakes and uniform in gradation, meeting the sand standard for high-speed railway, bridge and other high-end infrastructure.
Large Crushing Ratio: One crushing can complete coarse crushing + medium crushing + shaping, the crushing ratio can reach 40:1, reducing subsequent processes and production costs.
Wear Resistant: Hammer plate and counterattack plate are made of high chrome alloy material with strong impact resistance, the service life of wearing parts is increased by more than 30% compared with ordinary materials.
Adjustable Particle Size: Precisely control the discharge particle size by adjusting the gap between counterattack plate and hammer plate to meet the sand demand of different scenarios.
Easy Maintenance: Hydraulic cover opening design, the replacement of wearing parts can be completed in 10 minutes without large hoisting equipment, greatly shortening the downtime.

Applicable Scenarios & Materials

Sand and Gravel Production Plant: Shaping and sand making of soft and medium-hard rocks such as limestone, dolomite, shale for mass production of high-quality manufactured sand.
Infrastructure Project: On-site sand making for roads, bridges, real estate, supplying materials nearby to reduce transportation costs.
Construction Waste Recycling: Crushing and sand making of solid waste such as concrete blocks and bricks to realize secondary utilization of resources and help environmental protection.
Mineral Processing Field: Fine crushing and sand making of gypsum, gangue, iron ore and other materials, connecting the subsequent mineral processing or building material production process.

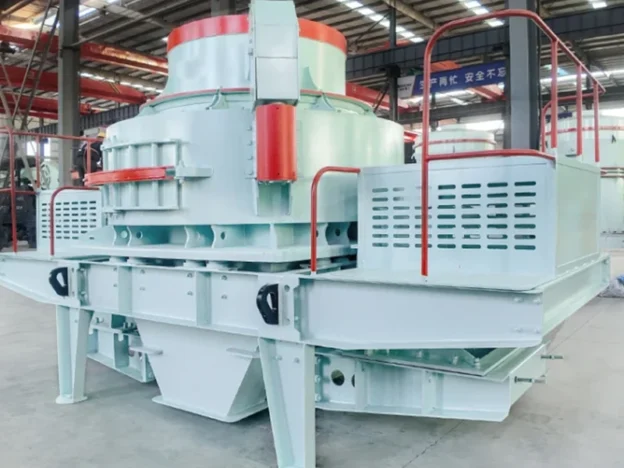

PLS Series Impact Sand Making Machine – High Efficiency Sand Production Equipment

Leave a reply

Product Overview

The PLS Series Impact Sand Making Machine is a professional industrial-grade core equipment for manufactured sand production, adopting a high-torque rotor impact crushing structure and a wear-resistant high-chromium alloy impact block, matched with an optimized three-dimensional crushing cavity. It is mainly for the fine crushing and shaping of medium-hard materials such as river pebbles, granite and basalt to produce high-quality manufactured sand, and can also be used for the recycling of mine tailings and construction solid waste. The equipment achieves efficient sand making and particle shaping through the high-speed impact of the impeller and the mutual collision of materials, with round finished sand particles and reasonable gradation. It is suitable for sand and gravel plants and infrastructure engineering projects, and has the advantages of high production efficiency, low energy consumption and convenient maintenance.

Core Technical Parameters

Model	Working Mode	Max Feed Size (mm)	Impeller Diameter (mm)	Impeller Speed (r/min)	Power (kW)	Capacity (t/h)
PLS-550	Crushing & Sand Making	30	570	2258-2600	30/37/45/55	24-35/30-45/42-60/50-68
PLS-700	Crushing & Sand Making	35	720	1775-1965	75/90/110/140/2×90	64-85/77-100/94-120/153-170/193-195
PLS-850Ⅱ	Crushing & Sand Making	50	880	1320-1720	2×110/2×132/2×160	187-242/225-290/270-345
PLS-850Ⅱ	High-speed Fine Crushing & Shaping	5	880	1795	2×110/2×132/2×160	120-175/150-210/270-375
PLS-1000Ⅱ	Crushing & Sand Making	60	990	1240-1460	2×200/2×220/2×250	340-470/375-520/425-585
PLS-1000Ⅱ	High-speed Fine Crushing & Shaping	5	990	1545	2×160/2×220/2×250	180-256/230-350/430-600
PLS-1200Ⅱ	Crushing & Sand Making	60	1110	1040-1300	2×250/2×280/2×315	430-600/450-640/500-715
PLS-1200Ⅱ	High-speed Fine Crushing & Shaping	5	1110	1400	2×250/2×280	300-400/350-450
PLS-1400Ⅱ	Crushing & Sand Making	60	1400	820-1020	2×450/2×500	765-1000/850-1100
PLS-1400Ⅱ	High-speed Fine Crushing & Shaping	5	1400	1100	2×450/2×500	620-720/700-800

Product Advantages & Technical Highlights

Excellent Particle Shape: Impact crushing + three-dimensional shaping, the finished sand is round without needle flakes and uniform in gradation, meeting the national standard for building sand.
High-efficiency Sand Making: High-torque rotor + optimized cavity design, sufficient material crushing, sand making efficiency is much higher than traditional equipment.
Wear Resistant: Impact blocks and liners are made of high-chromium alloy material with strong wear resistance, greatly improving the service life of wearing parts.
Stable Operation: Heavy welded frame + dynamic balance design, low equipment vibration and noise, supporting 24-hour continuous operation.
Convenient Maintenance: Modular disassembly and assembly design, quick replacement of wearing parts, no professional technicians needed, reducing maintenance costs.

Applicable Scenarios & Materials

Sand and Gravel Production Plants: Sand making and shaping of river pebbles, granite, basalt, limestone and other raw materials to mass produce high-quality manufactured sand.
Infrastructure Projects: On-site sand making for roads, bridges, real estate, water conservancy projects, realizing nearby material supply and saving transportation costs.
Ore Processing Field: Fine crushing and sand making of medium-hard ores such as iron ore, copper ore, quartz stone, connecting the subsequent mineral processing process.
Tailings Recycling: Crushing and sand making of mine tailings and construction solid waste, realizing secondary resource utilization, increasing income and reducing environmental pressure.

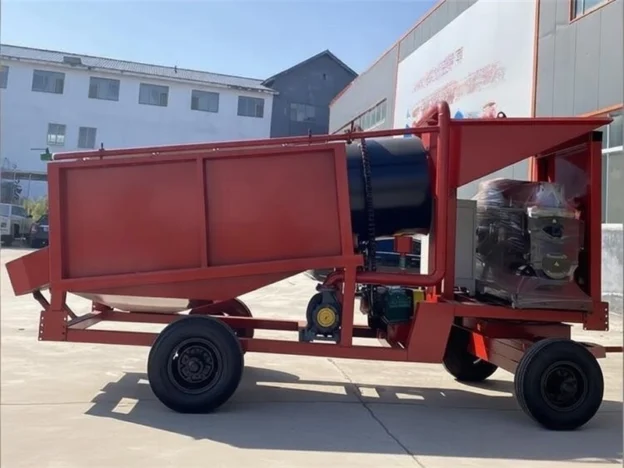

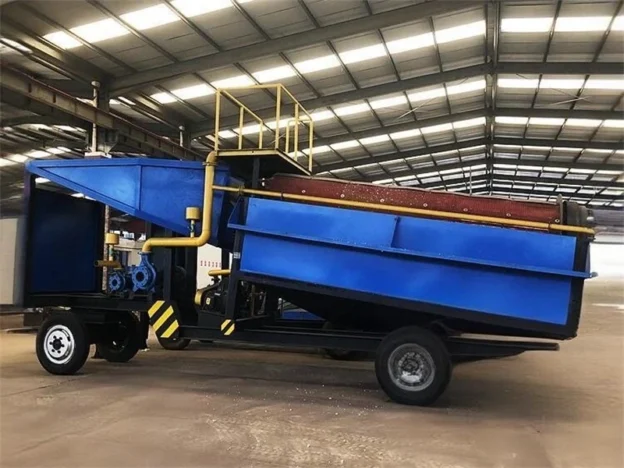

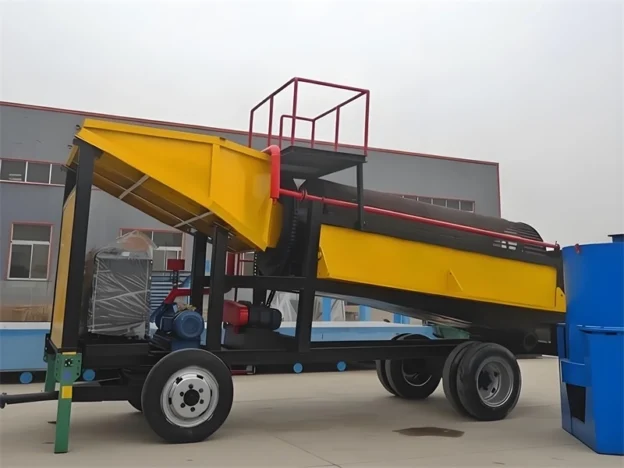

Medium Drum Screen Gold Washing Plant – Mobile Sand Gold Mining Equipment

Leave a reply

Product Overview

The medium drum screen gold washing plant is a core outdoor gold mining equipment that balances medium production capacity and flexible operation. Adopting the integrated design of mobile chassis + drum screening + gold separation, it is driven by motor or diesel dual power to realize the screening of large impurities in sand ore, clay washing and sand gold enrichment recovery. With a processing capacity of 25-90 t/h, it is suitable for medium-scale operation, with the advantages of solid structure, wear resistance, energy saving, anti-silting, anti-blocking, intelligence, convenience and strong adaptability. It can be transferred flexibly without fixed sites, which can meet the large-scale needs of small and medium-sized enterprises and adapt to the operation of scattered outdoor ore spots. With outstanding cost performance, it is the preferred equipment for medium-scale sand gold mining and high-efficiency recovery.

Core Specifications

Model	Drum Specification (Dia×Length) mm	Processing Capacity (t/h)	Drum Speed (r/min)	Total Power (kW)	Sand Gold Recovery (%)	Overall Dimension (L×W×H) mm	Movement Mode/Speed
ZDT-1000 (Medium)	Φ1000×3500	25-50	23-30	15-22 (40-50HP diesel power optional)	≥91	7800×2500×2900	Tire traction type, ≤14km/h
ZDT-1200 (Medium)	Φ1200×4000	35-80	22-28	18.5-30 (40-60HP diesel power optional)	≥92	8500×2800×3200	Tire traction/semi-self-propelled, ≤12km/h
ZDT-1300 (Medium)	Φ1300×4500	50-90	20-26	22-37 (50-70HP diesel power optional)	≥93	9200×3000×3300	Semi-self-propelled, ≤11km/h

Product Advantages & Technical Highlights

Easy Mobility: Wheel traction chassis, flexible transfer, strong site adaptability
Integrated Design: One-stop completion of feeding, screening, washing, gold separation and tailing discharge
No Infrastructure Needed: No pouring foundation required, put into production immediately after landing
High Gold Recovery: Equipped with vibrating chute/gold separator, high recovery for fine and flake gold
High Cost Performance: Moderate cost, low energy consumption, short payback period

Applicable Scenarios & Materials

Applicable Scenarios

Medium-scale placer gold mining, river and beach gold panning
Dry land placer gold beneficiation, tailings reprocessing
Small and medium mobile gold panning production lines, medium mountain ore spots

Applicable Materials

Placer gold ore, river sand ore, mountain sand ore, weathered sand
Mud-containing gold ore, fine gold, flake gold, granular gold
Low-grade gold ore tailings

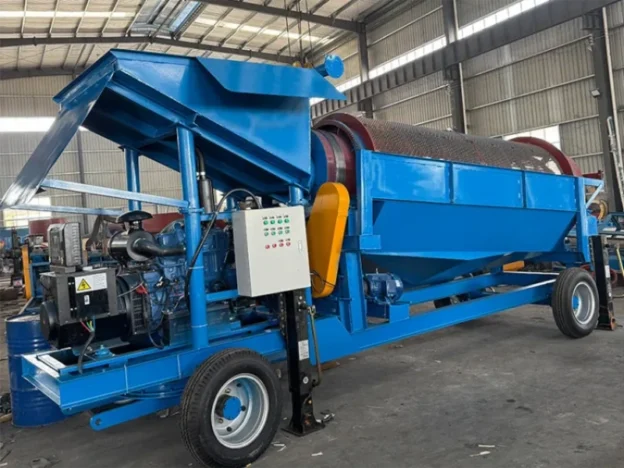

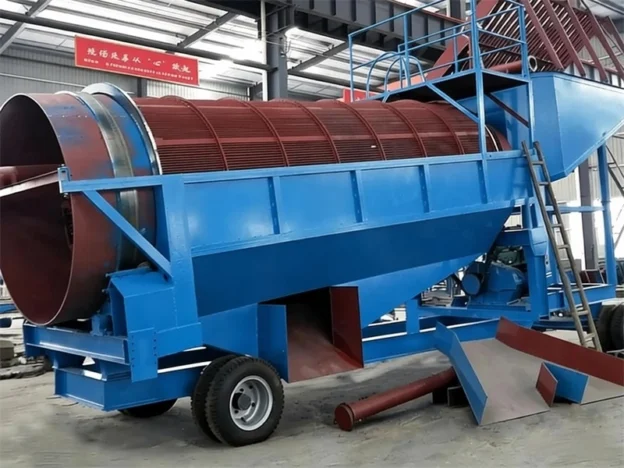

Mobile Trommel Screen Gold Washing Plant

Leave a reply

Product Overview

The mobile trommel screen gold washing plant is a core outdoor gold mining equipment with flexible transfer and no fixed installation, adopting the integrated design of mobile chassis + trommel screening + gold separation. Driven by motor or diesel engine, it realizes large impurity screening, clay washing and alluvial gold enrichment and recovery in sand ore. The equipment has both convenient mobility and high separation efficiency, with firm structure, wear resistance, energy saving, anti-silting and anti-blocking. It can adapt to various complex outdoor scenes, support customization and automatic operation, no fixed site and power grid required, high transfer and operation efficiency. It can meet the needs of small and medium-sized large-scale operations and adapt to the needs of scattered outdoor ore spots, which is the first choice for outdoor mobile gold mining and high-efficiency alluvial gold recovery.

Core Specifications

Model	Trommel Specification (Dia×Length) mm	Processing Capacity (t/h)	Trommel Speed (r/min)	Total Power (kW)	Gold Recovery Rate (%)	Overall Dimension (L×W×H) mm	Movement Mode / Speed
YDT-800 (Mobile)	Φ800×3000	15-35	25-32	11-15 (30-40HP diesel power optional)	≥90	7000×2300×2700	Tire traction type, ≤15km/h
YDT-1200 (Mobile)	Φ1200×4000	35-80	22-28	18.5-30 (40-60HP diesel power optional)	≥92	8500×2800×3200	Tire traction/semi-self-propelled, ≤12km/h
YDT-1500 (Mobile)	Φ1500×5000	80-150	18-25	37-55 (60-100HP diesel power optional)	≥93	10000×3200×3500	Self-propelled/large traction type, ≤10km/h

Product Advantages & Technical Highlights

Flexible movement: Wheel traction chassis, free transfer, no site restrictions
Ready to use: No cement foundation required, start working immediately after power connection
Integrated design: Integrate feeding, screening, washing, gold separation and tailing discharge
Strong adaptability: Operable in river courses, dry lands, mountainous areas and tailings areas
High efficiency & labor saving: Automatic process, manageable by single person, stable output
High gold recovery: Equipped with shaking chute, high recovery for fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

Mobile alluvial gold mining, river and beach gold panning, dry land mobile gold separation
Scattered mountain ore spots, tailings re-selection, small mobile gold panning production line

Applicable Materials

Alluvial gold ore, river sand ore, mountain sand ore, weathered sand, muddy gold-bearing ore
Fine gold, flake gold, granular gold, low-grade gold ore tailings

Small Trommel Screen Gold Washing Machine – Portable Gold Mining Equipment

Leave a reply

Product Overview

The small trommel screen gold washing machine is a lightweight and low-cost mobile gold mining equipment specially designed for individuals and small cooperatives. It adopts a small trommel screening structure as the core, integrates simple sand washing and separation functions, and is driven by a small motor (diesel power optional) to realize the separation of sand ore and impurities and sand gold recovery. The equipment has the advantages of compact volume, light weight, convenient transfer, simple operation, low energy consumption, low maintenance cost, wear resistance, anti-silting, anti-blocking and strong adaptability. No professional technology and fixed site are needed, and the operation can be completed by 1-2 people. It is the first choice for personal gold panning and sand gold recovery in small scattered mining sites, taking into account practicality and economy.

Core Parameters

Model	Trommel Specification (D×L) mm	Processing Capacity (t/h)	Trommel Speed (r/min)	Total Power (kW)	Gold Recovery Rate (%)	Overall Dimension (L×W×H) mm	Movement Mode
XDT-600 (Mini)	Φ600×2000	5-15	28-35	5.5 (22HP diesel optional)	≥88	5000×1800×2200	Small tire traction (manual assisted)
XDT-800 (Small)	Φ800×2500	15-30	25-32	11 (30HP diesel optional)	≥90	6500×2200×2600	Small tire traction (for agricultural tractor)
XDT-1000 (Small)	Φ1000×3000	30-50	22-28	18.5 (40HP diesel optional)	≥91	7500×2500×2800	Small tire traction / manual moving

Product Advantages & Technical Highlights

Compact & Flexible: Small volume, light weight, easy traction, suitable for mountainous and narrow sites
Lower Investment: Economical cost, fast cost recovery, ideal for individuals and small mining sites
Integrated Design: Integrates screening, ore washing, gold separation and tailing discharge in one unit
No Foundation Needed: Start working immediately after landing, no cement foundation, simple installation
Easy Operation: One-key start, operable by a single person, labor-saving
High Recovery Rate: Equipped with vibrating chute, stable recovery of fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

Small placer gold mines, scattered mountain mining sites, river and beach gold panning
Dry land small-scale gold separation, tailings reprocessing, personal mobile gold panning operations

Applicable Materials

Placer gold ore, river sand ore, mountain sand ore, weathered sand, fine gold, flake gold, granular gold
Mud-containing gold-bearing ore materials

River Gold Special Rotary Screen Gold Washing Plant For River Channel

Leave a reply

Product Overview

This rotary screen gold washing plant is a mobile gold mining industrial equipment adapted to the high water and high mud content scenarios of river channels. It adopts a river channel exclusive waterproof and anti-silt rotary drum design, integrating screening, sand washing, desliming, separation, conveying and wastewater recovery in one. Equipped with a high-pressure flushing system and driven by electric motor (waterproof diesel power optional), it realizes the separation of river wet sand from sludge and large impurities. Combined with the combined separation system, it efficiently recovers coarse, fine and micro particle sand gold. The equipment has the advantages of waterproof and anti-silt, wear and corrosion resistance, energy saving and high efficiency, intelligent and convenient operation, strong adaptability, and convenient off-road transfer. It can be directly docked at the river bank for operation without fixed site and additional water supply facilities. It is the core exclusive equipment for river sand gold mining and scattered mine gold panning, taking into account environmental protection and operation efficiency.

Core Parameters & Specifications

Model	Rotary Drum Specification (D×L) mm	Processing Capacity (t/h)	Rotary Drum Speed (r/min)	Total Power (kW)	Gold Recovery Rate (%)	Overall Dimension (L×W×H) mm	Movement Mode
HDT-1200 (River Special)	Φ1200×3500	50-80	22-30	37 (Diesel power optional, waterproof design)	≥92	10000×2800×3800	Tire traction (waterproof tire)
HDT-1500 (River Special)	Φ1500×4000	80-120	20-28	55 (Diesel power optional, waterproof design)	≥93	11500×3000×4000	Tire traction/Semi-trailer traction (waterproof chassis)
HDT-1800 (River Special)	Φ1800×5000	120-180	18-25	75 (Diesel power optional, waterproof design)	≥94	13000×3200×4200	Semi-trailer traction/Self-propelled (amphibious chassis)
HDT-2200 (River Special)	Φ2200×6000	180-250	16-22	90 (Diesel power optional, waterproof design)	≥95	14500×3500×4500	Self-propelled (hydraulic drive, amphibious)

Product Advantages & Technical Highlights

River Channel Special: Specially designed for river beach, river channel and near-water sand gold mines with strong working condition adaptability
Flexible Movement: Wheel-type traction chassis, free transfer along the river bank and on-site operation
Efficient Water Washing: Take water nearby for cleaning, thorough separation of mud and sand, and cleaner gold separation
Integrated Design: One-stop completion of feeding, screening, water washing, mineral processing and tailing discharge
No Infrastructure Needed: Start operation immediately after landing, no foundation required, fast commissioning
High Gold Recovery: Equipped with jigging chute/centrifuge, high recovery rate of fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

River sand gold mining
River beach gold panning
Near-water sand gold ore dressing
River bank tailings reprocessing
River sand mining and gold panning

Applicable Materials

River sand gold ore, river sand gold-bearing ore, fine gold, flake gold, granular gold
Mud-containing river sand, river bed sand and stone mixture

Dry Land Placer Gold Special Trommel Screen Gold Washing Machine

Leave a reply

Product Overview

This dry land placer gold special trommel screen gold washing machine is a mobile gold mining industrial equipment adapted to waterless/less water dry land scenarios. It adopts a special anti-clogging trommel design for dry land, integrating screening, crushing, separation and conveying. Without a large amount of water supply, driven by electric motor (diesel power optional), it realizes the separation of dry sand and large impurities in dry land. Equipped with an exclusive separation system, it efficiently recovers coarse, fine and micro-fine placer gold. The equipment has the advantages of anti-silting and anti-clogging, wear resistance and weather resistance, energy saving and high efficiency, intelligence and convenience, strong adaptability, etc. It features off-road and convenient transfer, adapts to various dry land placer sand mine scenarios, no fixed site and large water supply required, and is the core exclusive equipment for dry land placer gold mining and gold panning in remote waterless mine sites.

Core Parameters

Model	Trommel Specification (D×L) mm	Processing Capacity (t/h)	Trommel Speed (r/min)	Total Power (kW)	Gold Recovery Rate (%)	Overall Dimension (L×W×H) mm	Movement Mode
HDT-1200 (Dry Land Special)	Φ1200×3500	50-80	22-30	37 (Diesel power optional)	≥91	10000×2800×3800	Tire traction type
HDT-1500 (Dry Land Special)	Φ1500×4000	80-120	20-28	55 (Diesel power optional)	≥92	11500×3000×4000	Tire traction/Semi-trailer traction
HDT-1800 (Dry Land Special)	Φ1800×5000	120-180	18-25	75 (Diesel power optional)	≥93	13000×3200×4200	Semi-trailer traction/Self-propelled
HDT-2200 (Dry Land Special)	Φ2200×6000	180-250	16-22	90 (Diesel power optional)	≥94	14500×3500×4500	Self-propelled (Hydraulic drive)

Product Advantages & Technical Highlights

Dry Land Special: Exclusively designed for dry land placer gold mines, adapted to waterless working conditions such as Gobi, mountain and hilly areas
Flexible Movement: Wheeled traction chassis for convenient site transfer and instant working point replacement
Large Processing Capacity: High-efficiency screening with large trommel, applicable for dry ore, wet ore and muddy ore
Integrated & High-efficiency: Integrating feeding, screening, gold separation and tailing discharge, a single machine forms a complete production line
No Infrastructure Required: No foundation construction and no large amount of water needed, start working immediately after landing
High Gold Recovery: Adapted to vibrating sluice box, with excellent recovery effect for fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

Dry land placer gold mining, Gobi gold panning, mountain placer gold beneficiation, hilly dry area gold separation
Tailing dry separation and re-separation, mobile gold panning in waterless areas

Applicable Materials

Dry land placer gold ore, mountain sand ore, weathered sand, Gobi sand ore, muddy gold-bearing dry material
Fine gold, flake gold, granular gold, low-grade dry land gold mine tailings
