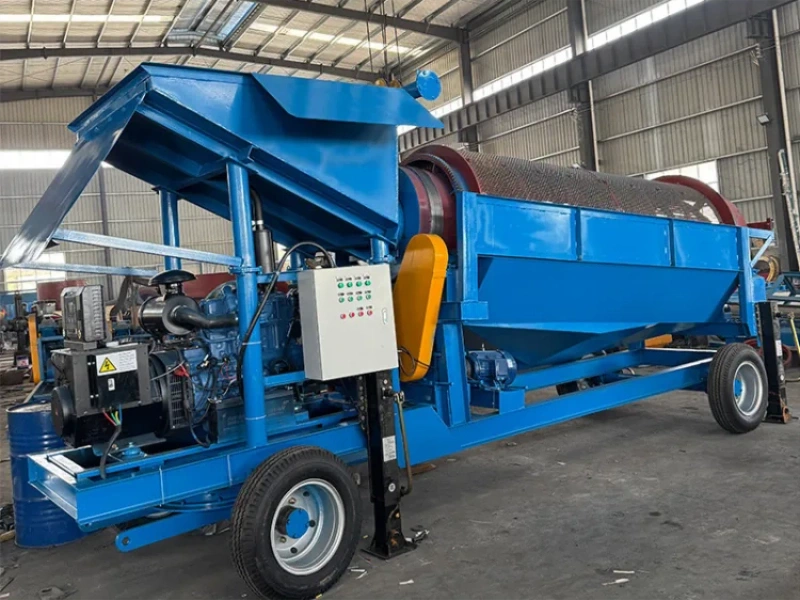

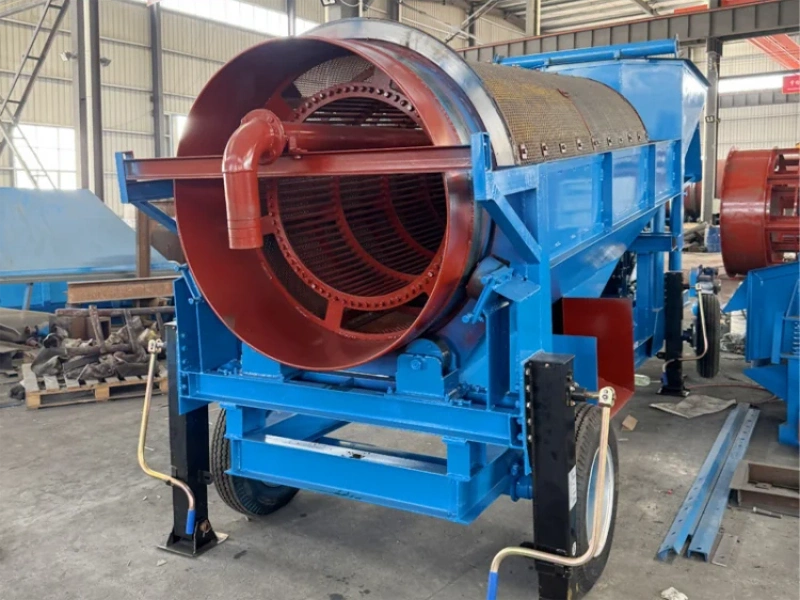

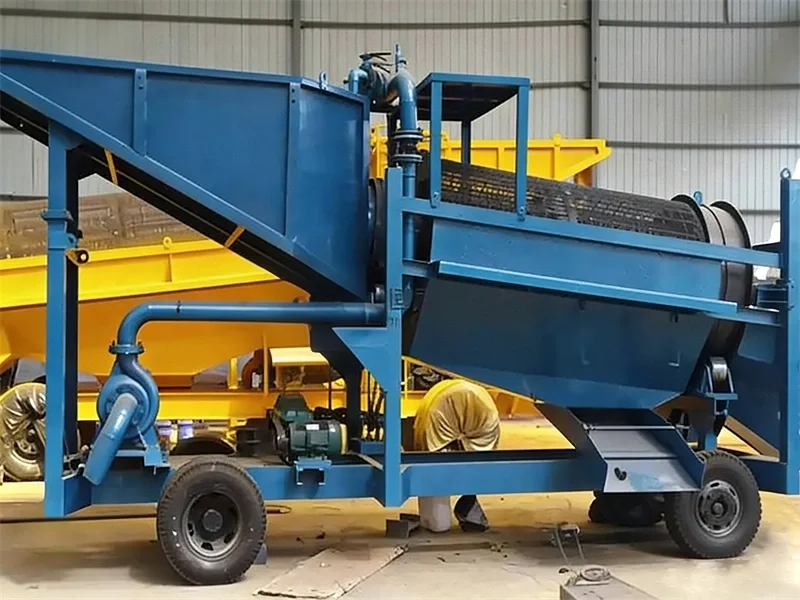

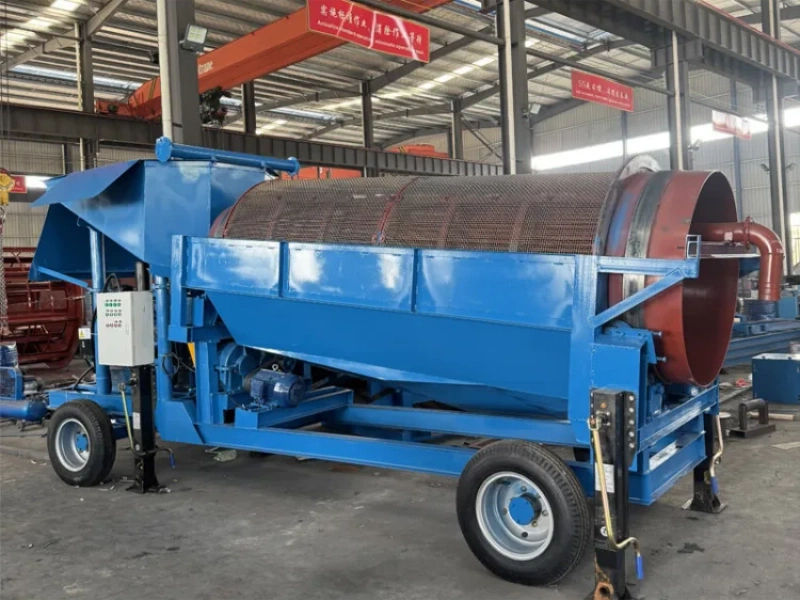

Mobile Trommel Screen Gold Washing Plant

It is a core outdoor gold mining equipment with flexible transfer and no fixed installation, integrating feeding, screening, washing, gold separation and tailing discharge.
With high gold recovery rate (≥90%), it is adaptable to river courses, dry lands, mountainous areas and tailings areas for alluvial gold mining and tailings re-selection.
It features automatic process, stable output, easy operation by single person, and can be driven by motor or diesel engine without cement foundation.

Inquiry Now

Product Overview

The mobile trommel screen gold washing plant is a core outdoor gold mining equipment with flexible transfer and no fixed installation, adopting the integrated design of mobile chassis + trommel screening + gold separation. Driven by motor or diesel engine, it realizes large impurity screening, clay washing and alluvial gold enrichment and recovery in sand ore. The equipment has both convenient mobility and high separation efficiency, with firm structure, wear resistance, energy saving, anti-silting and anti-blocking. It can adapt to various complex outdoor scenes, support customization and automatic operation, no fixed site and power grid required, high transfer and operation efficiency. It can meet the needs of small and medium-sized large-scale operations and adapt to the needs of scattered outdoor ore spots, which is the first choice for outdoor mobile gold mining and high-efficiency alluvial gold recovery.

Core Specifications

Model	Trommel Specification (Dia×Length) mm	Processing Capacity (t/h)	Trommel Speed (r/min)	Total Power (kW)	Gold Recovery Rate (%)	Overall Dimension (L×W×H) mm	Movement Mode / Speed
YDT-800 (Mobile)	Φ800×3000	15-35	25-32	11-15 (30-40HP diesel power optional)	≥90	7000×2300×2700	Tire traction type, ≤15km/h
YDT-1200 (Mobile)	Φ1200×4000	35-80	22-28	18.5-30 (40-60HP diesel power optional)	≥92	8500×2800×3200	Tire traction/semi-self-propelled, ≤12km/h
YDT-1500 (Mobile)	Φ1500×5000	80-150	18-25	37-55 (60-100HP diesel power optional)	≥93	10000×3200×3500	Self-propelled/large traction type, ≤10km/h

Product Advantages & Technical Highlights

Flexible movement: Wheel traction chassis, free transfer, no site restrictions
Ready to use: No cement foundation required, start working immediately after power connection
Integrated design: Integrate feeding, screening, washing, gold separation and tailing discharge
Strong adaptability: Operable in river courses, dry lands, mountainous areas and tailings areas
High efficiency & labor saving: Automatic process, manageable by single person, stable output
High gold recovery: Equipped with shaking chute, high recovery for fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

Mobile alluvial gold mining, river and beach gold panning, dry land mobile gold separation
Scattered mountain ore spots, tailings re-selection, small mobile gold panning production line

Applicable Materials

Alluvial gold ore, river sand ore, mountain sand ore, weathered sand, muddy gold-bearing ore
Fine gold, flake gold, granular gold, low-grade gold ore tailings
