Drum + Screen Bar Composite Sand Washer

Product Overview

The Drum + Screen Bar Composite Sand Washer is a high-efficiency composite sand washing equipment that integrates the dual principles of drum rotation cleaning and screen bar classification screening. It adopts a core “drum + screen bar” integrated structure, which drives materials to collide and rub through low-speed drum rotation to achieve cleaning and desliming, and simultaneously uses screen bars to complete the classification of materials of different particle sizes, realizing three functions of cleaning, desliming and classification in one step. It is divided into three specifications: industrial small, industrial medium and industrial large. The equipment has the advantages of compact structure, stable operation, wear resistance, energy saving, intelligent control, strong adaptability, synchronous cleaning and classification, safety and environmental protection, with high sand washing efficiency and low energy consumption. It is good at processing difficult-to-wash sand, stone and ore with high mud content and high viscosity, and can process a variety of sand, stone and ore materials. It is easy to operate, with low maintenance cost, small floor area and low investment cost. It can not only independently complete sand washing and classification operations, but also be combined with crushing, grinding and sorting equipment to form a complete production line. It is widely used in mining, metallurgy, building materials, environmental protection, hydropower and other industries, which can effectively improve the material cleanliness and classification accuracy, reduce resource waste, lower the comprehensive operation cost, and is the preferred composite equipment for sand washing classification and ore desliming pretreatment.

Product Details

Model Drum Size (D×L) mm Liner Thickness mm Screen Bar Spacing mm Feeding Granularity mm Processing Capacity (t/h) Motor Power (kW) Drum Speed (r/min) Water Pressure (Mpa) Water Consumption (m³/t) Machine Weight (kg) Sand Washing Efficiency (%)
YTS-1030 (Small) 1000×3000 15-20 1-5 ≤50 30-70 30 22-26 0.3-0.5 1.0-3.2 10800 ≥95
YTS-1530 (Medium) 1500×3000 20-25 2-8 ≤80 70-140 55 20-24 0.3-0.5 1.0-3.2 17800 ≥96
YTS-1836 (Medium) 1800×3600 20-25 3-10 ≤100 120-200 75 16-20 0.3-0.5 1.0-3.2 24700 ≥97
YTS-2145 (Large) 2100×4500 25-30 5-12 ≤150 180-250 110 16-18 0.3-0.5 1.0-3.2 32618 ≥97
YTS-2450 (Large) 2400×5000 25-30 6-15 ≤200 230-300 160 15-17 0.3-0.5 1.0-3.2 48700 ≥98

Product Advantages & Technical Highlights

  • Composite Cleaning: Drum rolling + screen bar friction for more thorough cleaning
  • Integrated Washing & Screening: Synchronous completion of cleaning, screening and desliming
  • Large Processing Capacity: Continuous feeding, suitable for high mud content sand and stone
  • Not Easy to Block: Reasonable screen bar spacing for smooth discharge
  • Wear Resistant: Thickened cylinder and sturdy screen bar for long service life
  • Wide Application: Suitable for sand, stone, ore and mineral materials

Applicable Scenarios & Materials

Application Scenarios

  • Sand washing in sand yards
  • Ore desliming
  • River sand cleaning
  • Beneficiation plant pretreatment
  • Tailing cleaning

Applicable Materials

  • River sand, mountain sand, weathered sand
  • Cobblestone, limestone, quartz sand
  • Various muddy mineral materials

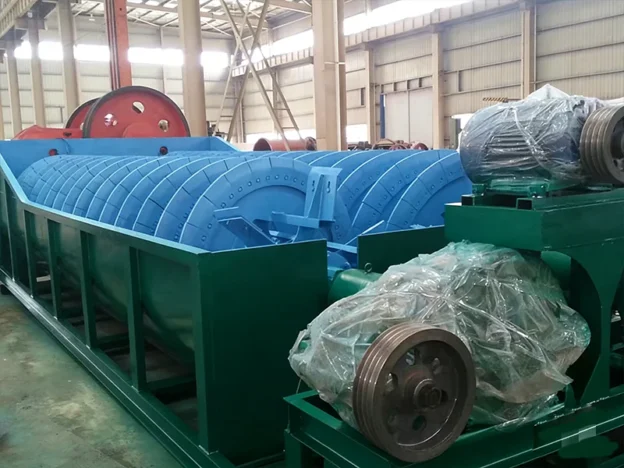

Double Spiral Ore Washer – High Efficiency Mineral Washing Equipment

Product Overview

The double spiral ore washer is a high-efficiency medium and large-sized coarse and medium-grain mineral washing and classifying equipment based on the principles of gravity sedimentation and hydraulic classification. It adopts a core design of double spiral symmetric layout + high weir type trough. Through the synchronous reverse rotation of two spiral blades, it drives the materials to fully tumble and scrub, and completes multiple operations of desliming, classification, washing and dehydration synchronously. It is divided into four specifications: industrial small, industrial medium, industrial large and mobile. The equipment has the advantages of firm structure, high efficiency of double shaft synchronization, wear resistance and energy saving, intelligent control, strong adaptability, accurate classification, safety and environmental protection. Different from the single spiral ore washer, it has higher processing efficiency and more uniform scrubbing, focusing on medium and large-scale operations. It can process a variety of coarse and medium-grain muddy ores, especially suitable for refractory ores with high mud content. It is easy to operate and low in maintenance cost. It can not only complete the ore washing and classification operation independently, but also form a complete mineral processing production line with crushing, grinding and sorting equipment. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It is an efficient preferred equipment for washing and classifying medium and large-sized coarse and medium-grain minerals, which can effectively improve the efficiency of subsequent operations and the grade of finished products, reduce resource waste and lower the comprehensive operation cost.

Core Specifications

Model Category Model Spiral Diameter (mm) Trough Length (mm) Feed Size (mm) Processing Capacity (t/h) Motor Power (kW) Spiral Speed (r/min) Weir Height (mm) Machine Weight (kg) Washing Efficiency (%)
Industrial Small (Double Spiral) SL-600 600×2 5200 2-30 25-60 11-15 14-24 300-450 3200 ≥92
Industrial Medium (Double Spiral) SL-1000 1000×2 7200 5-45 70-150 22-30 11-18 450-600 8800 ≥93
Industrial Large (Double Spiral) SL-1500 1500×2 10000 10-65 180-300 45-55 8-15 600-850 22000 ≥94
Mobile (Double Spiral) SLY-1200 1200×2 8500 8-50 100-200 37-45 10-16 500-700 28000 ≥93

Product Advantages & Technical Highlights

  • Double Shaft High Strength: Double spirals run synchronously for stronger cleaning power
  • Large Processing Capacity: Double shaft operation, greatly higher output than single shaft
  • High Cleaning Degree: Strong stirring for desliming, clean mineral materials without impurities
  • Stable Operation: Balanced operation of double spirals, low vibration and noise
  • Wear Resistant: Thickened wear-resistant blades, no deformation for long-term use
  • Wide Application: Washable for sand, ore, muddy mineral materials

Applicable Scenarios & Materials

Application Scenarios

  • Large-scale placer gold washing
  • Sand and gravel yard cleaning
  • Ore desliming
  • Concentrator pretreatment
  • Tailing washing

Applicable Materials

  • Sand and gravel, cobblestone, limestone
  • Weathered rock, quartz sand, placer gold
  • Various high mud content ores



Mining Drum Scrubber – Professional Ore Washing and Desliming Equipment

Product Overview

The Mining Drum Scrubber is a core pretreatment equipment for scrubbing and desliming difficult-to-wash coarse and medium-grained minerals based on the principles of mechanical scrubbing and hydraulic auxiliary cleaning. It adopts a single cylinder rotating structure (divided into ordinary type and cylinder with screen bar type). By rotating the cylinder at a low speed to drive the materials to collide and rub fully with the wear-resistant liner and self-generated pebbles, it efficiently completes the three operations of mineral scrubbing, desliming and classification, and is divided into industrial small, medium and large specifications. The equipment has the advantages of simple structure, stable operation, wear resistance, energy saving, intelligent control, strong adaptability, uniform scrubbing, safety and environmental protection, with high scrubbing efficiency and low energy consumption. It is good at treating difficult-to-wash ores with high mud content and high viscosity, and can handle a variety of coarse and medium-grained muddy minerals. It is easy to operate and has low maintenance cost. It can not only complete the scrubbing operation alone, but also form a complete mineral processing production line with crushing, grinding and separation equipment. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It can effectively peel off the viscous impurities on the mineral surface, improve the efficiency of subsequent operations, reduce resource waste and lower the comprehensive operation cost, and is the preferred basic equipment for scrubbing and desliming pretreatment of difficult-to-wash coarse and medium-grained minerals.

Core Parameter Specification

Model Drum Size (D×L) mm Liner Thickness mm Ore Feeding Size mm Processing Capacity (t/h) Motor Power (kW) Drum Speed (r/min) Water Pressure (Mpa) Water Consumption (m³/t) Total Weight (kg) Scrubbing Efficiency (%)
CXJ-1030 (Small) 1000×3000 15-20 ≤80 25-45 18.5 22-26 0.3-0.5 1.2-3.5 5200 ≥92
CXJ-1230 (Small) 1200×3200 15-20 ≤80 45-65 22 20-24 0.3-0.5 1.2-3.5 6300 ≥93
CXJ-1545 (Medium) 1500×4500 20-25 ≤120 65-110 37 16-20 0.3-0.5 1.2-3.5 7500 ≥94
CXJ-1860 (Large) 1800×6000 20-25 ≤150 90-130 55 18-19 0.3-0.5 1.2-3.5 13500 ≥95
CXJ-2265 (Large) 2200×6500 25-30 ≤200 150-170 75 17-18 0.3-0.5 1.2-3.5 17200 ≥95

Product Advantages & Technical Highlights

  • Powerful Scrubbing: Drum rotation + material friction for deep mud and film removal
  • High Mud Content Ore Expert: Cleans clay, mud lumps and coated ore thoroughly
  • Integrated Washing & Separation: Completes cleaning, screening and desliming simultaneously
  • Stable Operation: Smooth whole machine, low vibration and low failure rate
  • Wear Resistant & Durable: Thickened cylinder body and long service life of wear-resistant liner
  • Wide Application: Scrubbable for ore, sand and mineral sand

Applicable Scenarios & Materials

Applicable Scenarios

  • Gold sand scrubbing
  • Clay ore desliming
  • Sand yard cleaning
  • Mineral processing plant pretreatment
  • Tailing scrubbing

Applicable Materials

  • Gold sand, river sand, mountain sand, weathered sand
  • Clay ore, cobblestone, high mud content ore



High Weir Type Spiral Ore Washer – Efficient Mineral Washing & Classification Equipment

Product Overview

The high weir type ore washer is an efficient coarse and medium-grain mineral washing and classifying equipment based on the principles of gravity sedimentation and hydraulic classification. It adopts a core high weir type trough design, and drives the material to tumble and scrub through the rotation of single/double spiral blades to realize the separation of coarse and medium-grain minerals from sediment and fine mud, and complete desliming, classification and cleaning operations synchronously. It is divided into four specifications: lab small, industrial small, industrial medium and industrial large. The equipment has the advantages of sturdy structure, stable operation, wear resistance, energy saving, intelligent controllability, strong adaptability, accurate classification, safety and environmental protection. Different from the submerged ore washer, it focuses on the classification of coarse and medium-grain minerals with high classification accuracy and low material loss. It can process a variety of coarse and medium-grain clay-bearing minerals and adapt to the mineral processing operation needs of different scales. It is easy to operate and has low maintenance cost. It can not only complete the ore washing and classification operation independently, but also form a complete mineral processing production line with crushing, grinding and sorting equipment, especially suitable for closed-circuit circulation with ball mills. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It is the core preferred equipment for washing and classifying coarse and medium-grain minerals, which can effectively improve the efficiency of subsequent operations and the grade of finished products, reduce resource waste and lower the comprehensive operation cost.

Core Specifications

Model Category Model Spiral Diameter (mm) Trough Length (mm) Feeding Granularity (mm) Processing Capacity (t/h) Motor Power (kW) Spiral Speed (r/min) Weir Height (mm) Machine Weight (kg) Ore Washing Efficiency (%)
Lab Small (Single Spiral) GY-300 300 2200 1-10 0.8-2.0 1.5 18-32 200-300 420 ≥91
Industrial Small (Single Spiral) GY-600 600 4800 2-25 10-30 7.5-11 14-26 300-450 2100 ≥92
Industrial Medium (Double Spiral) GY-1000 1000 6800 5-40 35-90 15-22 11-20 450-600 7500 ≥93
Industrial Large (Double Spiral) GY-1500 1500 9500 10-60 100-200 30-45 8-16 600-800 18500 ≥94

Product Advantages & Technical Highlights

  • High weir classification: High overflow weir, stable fine ore overflow and accurate classification
  • Thorough ore washing: Strong desliming and impurity removal, high mineral cleanliness
  • Coarse-fine separation: Integrated classification and ore washing for higher efficiency
  • Wear-resistant blades: High manganese alloy blades with wear and impact resistance
  • Sealed dustproof: Multi-sealed bearings, durable against sand and mud
  • Adjustable inclination: Flexible adjustment of classification granularity

Applicable Scenarios & Materials

Application Scenarios

  • Gold ore grinding and classification
  • Ore washing and desliming
  • Primary classification in mineral processing plants
  • Sand and gravel washing and decontamination

Applicable Materials

  • Gold ore slurry, sand and gravel, ore, quartz sand
  • Weathered rock, clay-bearing minerals

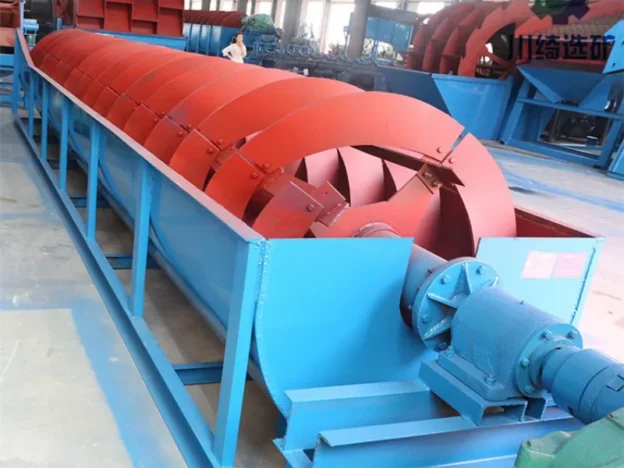

Single Spiral Ore Washer – Efficient Mineral Washing Preprocessing Equipment

Product Overview

The single spiral ore washer is an efficient small and medium-sized mineral washing and preprocessing equipment based on the principles of gravity sedimentation and hydraulic scrubbing. The core is to submerge a single set of spiral main body in the pulp, drive the material to tumble and scrub through the rotation of spiral blades, realize the separation of minerals from sediment and impurities, and complete desliming, dehydration and classification operations synchronously. It is divided into three specifications: lab small type, industrial small type and industrial medium type.

The equipment has the advantages of compact structure, stable operation, wear resistance and energy saving, intelligent controllability, strong adaptability, accurate ore washing, safety and environmental protection, with small floor space and convenient maintenance, high ore washing efficiency and low material loss. It can process a variety of clay-bearing minerals and adapt to small and medium-sized operation scenarios. It is easy to operate and has low maintenance cost. It can not only complete the ore washing operation independently, but also form a complete mineral processing production line with crushing, grinding and sorting equipment. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It is the core preferred equipment for the washing and preprocessing of small and medium-sized clay-bearing minerals, which can effectively improve the efficiency of subsequent operations and the grade of finished products, reduce resource waste and lower the comprehensive operation cost, especially suitable for users with moderate processing capacity requirements and limited site.

Core Parameters

Model Category Model Spiral Diameter (mm) Water Tank Length (mm) Feeding Granularity (mm) Processing Capacity (t/h) Motor Power (kW) Spiral Speed (r/min) Submersion Depth (mm) Machine Weight (kg) Ore Washing Efficiency (%)
Lab Small Type (Single Spiral) CX-300 300 2000 0.1-5 0.75-1.5 1.1 20-35 150-250 350 ≥92
Industrial Small Type (Single Spiral) CX-600 600 4500 0.5-20 8-25 5.5-7.5 15-28 250-400 1800 ≥93
Industrial Medium Type (Single Spiral) CX-1000 1000 6500 1-30 30-80 11-18.5 12-22 400-600 6200 ≥94
Industrial Medium Type (Single Spiral) CX-1118 1118 9000 5-40 75-175 30 10-20 500-700 9800 ≥94

Product Advantages & Technical Highlights

  • Single Shaft High Efficiency: Single spiral structure, strong cleaning force and smooth discharge
  • Thorough Ore Washing: Strongly remove mud and impurities, greatly improve ore purity
  • Stable Operation: Smooth running, low vibration and low noise
  • Spiral Washing: Single spiral propulsion and stirring for more sufficient cleaning
  • Wear-Resistant Blades: High manganese wear-resistant blades, anti-wear and anti-impact
  • Reliable Sealing: Good bearing sealing, dust-proof, sand-proof and no material feeding

Applicable Scenarios & Materials

Application Scenarios

  • Sand gold ore washing
  • River sand cleaning
  • Ore desliming
  • Stone yard cleaning
  • Mineral processing plant preprocessing

Applicable Materials

  • Sand gold ore, river sand, cobblestone, limestone, weathered rock
  • Various clay-bearing ore raw materials



Submerged Spiral Ore Washer – Efficient Mineral Washing Equipment

Product Overview

The submerged spiral ore washer is an efficient mineral washing and preprocessing equipment based on the principles of gravity sedimentation and hydraulic scrubbing. Its core is to submerge the spiral main body in the ore pulp, drive the material to tumble and scrub through the rotation of spiral blades, realize the separation of minerals from sediment and impurities, and complete desliming, dehydration and classification operations synchronously. It is divided into lab small, industrial small, medium and large-scale models, covering single spiral and double spiral series.

The equipment has the advantages of firm structure, stable operation, wear resistance, energy saving, intelligent control, strong adaptability, accurate ore washing, safety and environmental protection, with high ore washing efficiency and low material loss. It can process a variety of muddy minerals and adapt to washing needs of different scales. It is easy to operate and has low maintenance cost. It can not only complete ore washing operation alone, but also form a complete ore dressing production line with crushing, grinding and sorting equipment. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It is the core preferred equipment for muddy mineral washing and preprocessing, which can effectively improve the efficiency of subsequent operations and the grade of finished products, reduce resource waste and lower comprehensive operation costs, and is also an ideal equipment for the upgrading of the ore dressing industry.

Core Parameter Specification

Model Category Model Spiral Diameter (mm) Water Tank Length (mm) Feeding Size (mm) Processing Capacity (t/h) Motor Power (kW) Spiral Speed (r/min) Submersion Depth (mm) Total Weight (kg) Ore Washing Efficiency (%)
Lab Small (Single Spiral) CX-300 300 2000 0.1-5 0.75-1.5 1.1 20-35 150-250 350 ≥92
Industrial Small (Single Spiral) CX-600 600 4500 0.5-20 8-25 5.5-7.5 15-28 250-400 1800 ≥93
Industrial Medium (Double Spiral) CX-1000 1000 6500 1-30 30-80 11-18.5 12-22 400-600 6200 ≥94
Industrial Large (Double Spiral) CX-1500 1500 9600 5-50 90-180 30-45 8-18 600-800 18500 ≥95

Product Advantages & Technical Highlights

  • Thorough Washing: Strong stirring for desliming, high mineral cleanliness
  • Large Processing Capacity: Continuous feeding and washing, suitable for mass production
  • Stable Operation: Smooth spiral operation, low vibration and few failures
  • Wear Resistant & Durable: Thickened wear-resistant blades, long service life
  • Simple Structure: Easy maintenance, few wearing parts
  • Wide Application: Washable for sand, ore and ore pulp

Applicable Scenarios & Materials

Application Scenarios

  • Sand gold washing
  • Sand and gravel yard cleaning
  • Ore desliming
  • Concentrator preprocessing
  • Tailing washing

Applicable Materials

  • Sand gold, sand and gravel, cobblestone, limestone
  • Weathered rock, quartz sand, various muddy ores

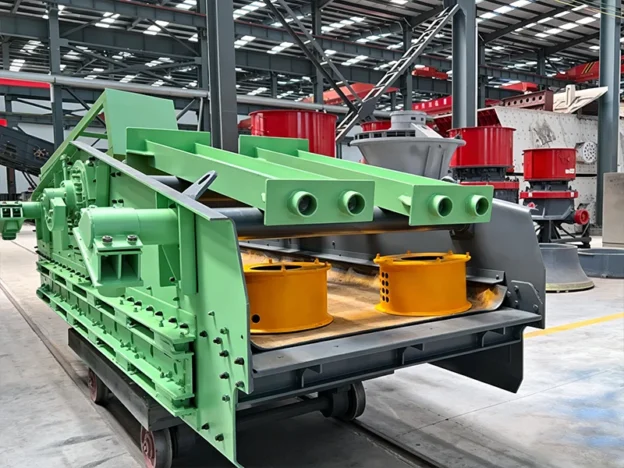

Heavy-duty Linear Vibrating Screen – Industrial Screening Equipment

Product Overview

Designed for coarse particle materials, the heavy-duty linear vibrating screen is driven by a side-mounted eccentric block exciter to make the screen body perform linear vibration. Equipped with metal woven wear-resistant screen surface and top distribution roller shaft, it is mainly used for classification screening and dewatering of coarse materials such as ore, sand and stone, construction waste. With strong processing capacity, stable and reliable operation, the equipment is suitable for mining, sand and stone factories, building materials factories and other scenarios. It can quickly separate materials of different particle sizes, and has the advantages of impact resistance, wear resistance and low maintenance.

Product Specification

Model Screen Surface Size (L×W) mm Processing Capacity (t/h) Excitation Frequency (r/min) Motor Power (kW) Equipment Weight (t)
ZX1530 1500×3000 60-150 800-950 11 3.8-4.3
ZX1836 1800×3600 100-220 800-950 15 5.5-6.2
ZX2040 2000×4000 150-300 800-950 22 7.8-8.5
ZX2448 2400×4800 200-400 800-950 30 11.2-12.5

Product Advantages & Technical Highlights

  • Solid structure: Side-mounted exciter + spring shock absorption, shock resistance and stable operation
  • Wear-resistant material: Metal woven screen mesh, anti-clogging with long service life
  • High screening efficiency: Linear vibration track, fast material stratification and large processing capacity
  • Uniform feeding: Top distribution roller shaft, avoiding unbalanced load and wear
  • Wide adaptability: Suitable for coarse material screening and dewatering, compatible with multiple working conditions

Applicable Scenarios & Materials

Applicable Industries

  • Mining industry: Ore classification, dewatering after ore washing
  • Sand and stone industry: Sand and stone raw material classification, aggregate desliming
  • Building materials industry: Classification after construction waste crushing
  • Coal industry: Raw coal classification, gangue separation

Applicable Materials

  • Core materials: Ore, sand and stone, construction waste
  • Adaptable materials: Raw coal, tailings, aggregate, gangue



Heavy-Duty Three-Layer Bar-Type Circular Vibrating Screen

Product Overview

The heavy-duty three-layer bar-type circular vibrating screen is a heavy-duty screening equipment screen box assembly specially designed for ultra-large coarse material pretreatment. It adopts a three-layer orange bar screen surface structure and is matched with a heavy-duty steel structure frame, focusing on the separation of oversize large materials and coarse material classification in mines and sand and gravel plants. The equipment has excellent anti-blocking effect and strong load-bearing capacity, suitable for heavy working conditions such as super large mines and sand and gravel aggregate production lines. It can efficiently filter oversize impurities to protect subsequent equipment, and has the advantages of wear resistance, durability and stable structure.

Core Specifications

Model Screen Surface Size (L×W) mm Processing Capacity (t/h) Adapted Vibrator Power (kW) Equipment Weight (t)
YB1530 1500×3000 80-180 15 5.2-5.8
YB1836 1800×3600 120-280 22 7.5-8.2
YB2040 2000×4000 160-380 30 9.8-10.5
YB2448 2400×4800 220-500 37 13.5-14.8
YB2460 2400×6000 300-600 45-55 18.5-20.0
YB2760 2700×6000 400-800 55-75 22.0-24.0
YB3060 3000×6000 500-1000 75-90 26.0-28.0

Product Advantages & Technical Highlights

  • Heavy-duty structure: Heavy steel structure frame with strong load-bearing capacity
  • Anti-blocking bar: Three-layer bar screen surface, suitable for high mud content coarse materials
  • High-efficiency classification: Multi-layer screening design, complete multi-stage pretreatment at one time
  • Wear resistance: Thickened wear-resistant material, resistant to extreme working conditions
  • Flexible adaptation: Can be matched with different vibrators to meet diverse needs

Applicable Scenarios & Materials

Applicable Scenarios

  • Super large mines: In-depth pretreatment of ore raw materials, separation of oversize materials
  • Large sand and gravel aggregate plants: Classification of sand and gravel raw materials, filtration of large impurities
  • Building materials recycling plants: Pretreatment of construction waste coarse materials, classification of recycled materials
  • Coal mines: Separation of oversize raw coal, pretreatment of gangue

Applicable Materials

  • Core materials: Super large ore, sand and gravel raw materials, construction waste blocks
  • Adaptable materials: Raw coal, tailings coarse materials, oversize aggregate

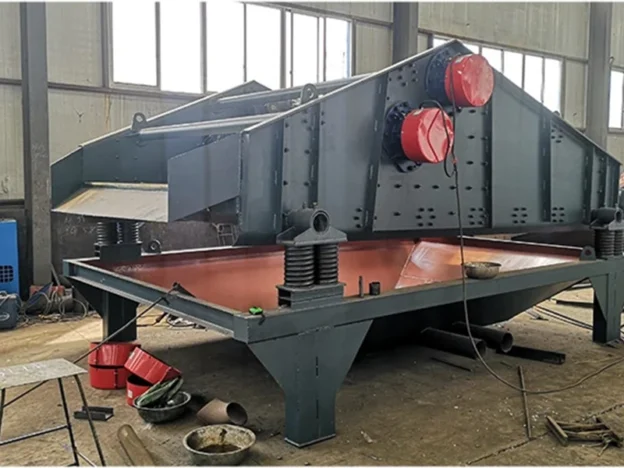

High Frequency Fine Sand Recovery Dewatering Screen (TS Series)

Product Overview

The high frequency fine sand recovery dewatering screen is a high-frequency vibrating equipment specially designed for fine sand recovery and dewatering. Driven by dual motor exciters, it is equipped with polyurethane wear-resistant screen surface and top cloth roller shaft, focusing on fine sand recovery and dewatering treatment in sand washing production line. It can greatly reduce fine material loss and improve the output and quality of finished sand. The equipment has the advantages of high dewatering efficiency, good recovery effect, energy saving, low consumption and convenient maintenance, and is suitable for sand and gravel plants, mineral processing plants and other scenarios.

Core Parameters & Specifications

Model Screen Surface Size (L×W) mm Processing Capacity (t/h) Excitation Frequency (r/min) Motor Power (kW) Equipment Weight (t)
TS1530 1500×3000 20-40 / 30-60 / 15-30 2800 2×5.5 3.2-3.8
TS1530X 1500×3000 30-60 2800 2×5.5 3.2-3.8
TS1836 1800×3600 40-70 / 60-100 / 30-50 2800 2×7.5 5.5-6.2
TS1836X 1800×3600 60-100 2800 2×7.5 5.0-5.8
TS2040 2000×4000 60-100 / 80-150 / 40-70 2800 2×11 7.8-8.5
TS2040X 2000×4000 80-150 2800 2×11 7.2-8.0

Product Advantages & Technical Highlights

  • High-efficiency Recovery: High frequency vibration + polyurethane screen surface, fine sand recovery rate over 90%
  • Thorough Dewatering: Reduce material water content to 8%-12%
  • Stable Structure: Dual exciter drive + heavy-duty frame, stable operation without unbalanced load
  • Wear Resistant: The service life of polyurethane screen surface is 3-5 times that of ordinary screen plate
  • Flexible Adaptation: Accessible to sand washing production line or used independently

Applicable Scenarios & Materials

  • Sand and Gravel Plant: Fine sand recovery of washed sand, dewatering of manufactured sand
  • Mineral Processing Plant: Tailings fine material recovery, concentrate dewatering
  • Building Material Plant: Recycled sand dewatering, fine aggregate purification
  • Core Materials: Washed sand fine material, tailings fine sand, manufactured sand
  • Adaptable Materials: Sludge, ore fine powder, recycled construction fine material





Economic Double-Deck Circular Vibrating Screen

Product Overview

The economic double-deck circular vibrating screen is a cost-effective grading and screening equipment, driven by a side-mounted eccentric block exciter to make the screen body perform circular motion vibration. It is equipped with a double-deck screening structure, with a metal woven screen mesh on the upper layer and a receiving trough on the lower layer, mainly for the grading and screening of sand stone, ore and other materials. The equipment has a compact structure and stable operation, suitable for small sand and stone factories, concentrators and other scenarios. It can complete two-stage grading at one time, with the advantages of controllable cost and convenient maintenance.

Product Specification

Model Screen Surface Size (L×W) mm Processing Capacity (t/h) Excitation Frequency (r/min) Motor Power (kW) Equipment Weight (t)
YJ1224 1200×2400 30-80 750-900 7.5 2.2-2.6
YJ1530 1500×3000 50-120 750-900 11 3.5-4.0
YJ1836 1800×3600 80-200 750-900 15 5.2-5.8

Product Advantages

  • Compact structure: Double-deck grading design, small floor space and high efficiency
  • Wear-resistant material: Metal woven screen mesh, high impact resistance and long service life
  • Stable operation: Spring shock absorption structure, low vibration noise
  • Controllable cost: Economic configuration, outstanding cost performance
  • Flexible adaptation: Suitable for all small working conditions, easy installation

Applicable Scenarios & Materials

Scenarios

  • Small sand and stone factories: Grading of manufactured sand and stone
  • Small concentrators: Rough separation and grading of ore
  • Building material processing factories: Grading of aggregate and recycled materials
  • Coal yards: Separation of raw coal and gangue

Materials

  • Core materials: Sand stone, ore, aggregate
  • Adaptable materials: Raw coal, tailings, recycled building materials



Double-Deck Circular Vibrating Screen – Industrial Screening Equipment

Product Overview

The double-deck circular vibrating screen is the most commonly used grading and screening equipment in the mining and sand stone industry. Driven by a top eccentric block vibrator, the screen body vibrates in a circular motion track. It is equipped with a double-deck red wear-resistant screen surface and an inclined layout structure, focusing on the multi-stage grading and screening of ore, sand stone, construction waste and other materials. The equipment has large processing capacity and high screening efficiency, suitable for mineral processing plants, sand stone plants, building material plants and other scenarios. It can separate raw materials into 2-3 finished products of different particle sizes at one time, with the advantages of wear resistance and stable operation.

Core Parameters & Specifications

Model Screen Surface Size (L×W) mm Processing Capacity (t/h) Excitation Frequency (r/min) Motor Power (kW) Equipment Weight (t)
YA1530 1500×3000 50-120 750-900 15 4.2-4.8
YA1836 1800×3600 80-200 750-900 22 6.5-7.2
YA2040 2000×4000 120-300 750-900 30 8.8-9.5
YA2448 2400×4800 180-450 750-900 37 12.5-13.8

Product Advantages & Technical Highlights

  • Stable structure: Eccentric block vibrator with fast layered screening by circular motion track
  • Wear-resistant material: Double-deck polyurethane screen surface with high impact resistance and long service life
  • High screening efficiency: Large processing capacity design with accurate grading effect
  • Stable operation: Spring shock absorption and noise reduction, supporting 24-hour continuous operation
  • Wide adaptability: Suitable for multiple industries and compatible with multi-particle size grading

Applicable Scenarios & Materials

  • Sand stone plant: Grading and screening of manufactured sand and stone
  • Mineral processing plant: Grading and dewatering of ore and tailings
  • Building material plant: Grading of construction waste and aggregate
  • Coal mine: Grading of raw coal and gangue
  • Core materials: Ore, sand stone, construction waste
  • Adaptable materials: Raw coal, tailings, aggregate, gangue





Double Deck Flip-Flow Screen – High Efficiency Screening Equipment

Product Overview

This is a high-efficiency classification equipment specially designed for viscous and fine-grained materials. Adopting a structural design featuring double-layer polyurethane flip-flow screen surfaces combined with a banana-shaped inclined arrangement, and driven by side-mounted vibrators to make the screen surfaces perform flip-flow motion, it can completely solve the problem of hole blocking caused by viscous materials. The equipment is mainly used for two-stage screening of materials such as coal, ores and construction waste, and boasts the advantages of high screening efficiency, wear resistance, anti-blocking performance and stable operation. It is suitable for application scenarios including coal mines, mineral processing plants and building material factories.

Core Parameter Specification

Model Number of Screen Layers Max Feed Size (mm) Screen Hole Size (mm) Processing Capacity (t/h) Vibration Frequency (r/min) Inclination Angle (°) Overall Dimension L×W×H (mm) Weight (kg)
SZ5600×1200 1 40 2-25 10-20 1000 15-25 1370×890×930 340
2SZ5600×1200 2 40 2-25 10-20 1000 15-25 1370×890×930 360
SZ5900×1800 1 40 2-25 20-30 1000 15-25 2150×1585×755 520
2SZ5900×1800 2 40 2-25 20-30 1000 15-25 2438×1585×755 650
SZZZ1500×2500 1 100 2-40 50-150 850 15-20 2782×1714×850 700
2SZZZ1500×2500 2 150 2-40 50-150 850 15-20 5570×2714×1000 1400
SZZZ1500×3000 1 100 2-80 70-220 800 15-25 3320×149×797 2100

Product Advantages & Technical Highlights

  • Structural Innovation: Double deck banana-shaped layout, flip-flow movement prevents hole clogging
  • Wear-Resistant Material: Polyurethane flip-flow screen surface, service life increased by 3-5 times
  • High Efficiency Screening: High frequency flip-flow vibration, screening efficiency over 90%
  • Strong Adaptability: Suitable for all viscous fine materials, compatible with multiple industries
  • Stable Operation: Spring shock absorption and noise reduction, low consumption and long-term operation

Applicable Scenarios & Materials

Applicable Industries

  • Coal Industry: Raw coal classification screening, coal slime deep screening
  • Mining Industry: Ore classification, screening before tailings dry discharge
  • Building Materials Industry: Construction waste classification, aggregate desliming screening

Core Applicable Materials

  • Viscous raw coal, wet and viscous ore, construction waste

Adaptable Materials

  • Coal slime, tailings sand, manufactured aggregate, fine ore powder
