High Frequency Fine Sand Recovery Dewatering Screen (TS Series)

It is a high-frequency vibrating equipment specially designed for fine sand recovery and dewatering, with dual motor exciter drive and polyurethane wear-resistant screen surface.
The fine sand recovery rate is over 90%, and the material water content can be reduced to 8%-12% after treatment.
It is widely used in sand and gravel plants, mineral processing plants and building material plants, and can be used independently or connected to the sand washing production line.

Inquiry Now

Product Overview

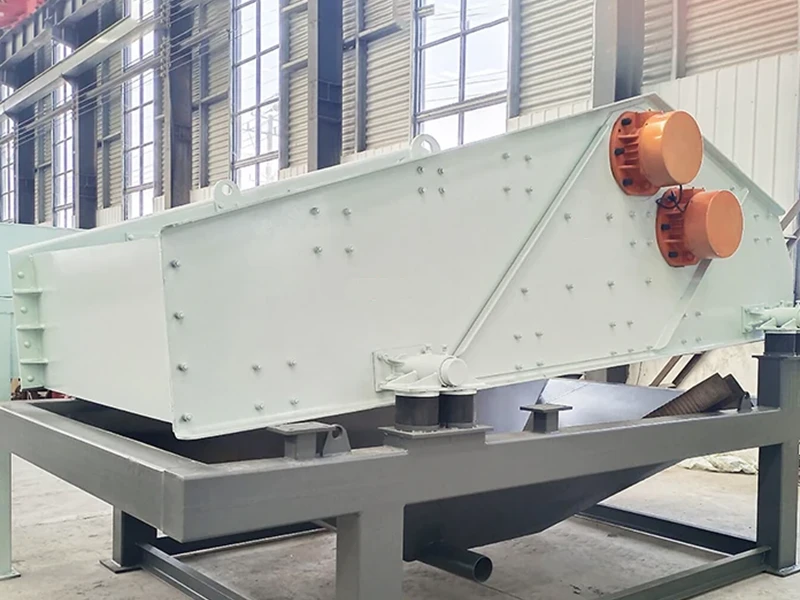

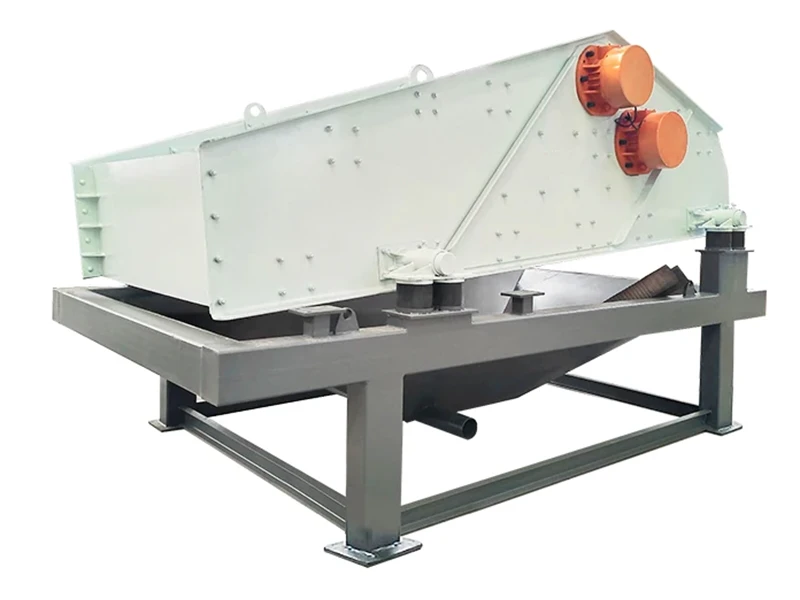

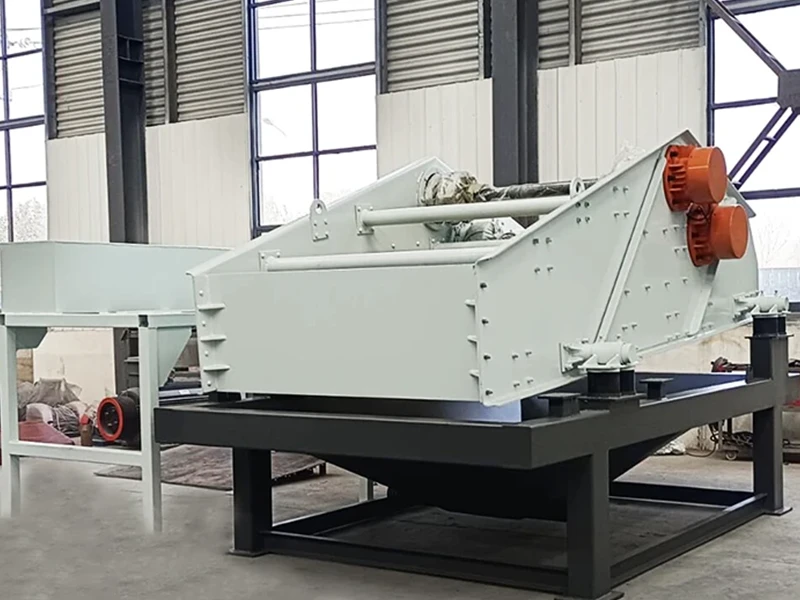

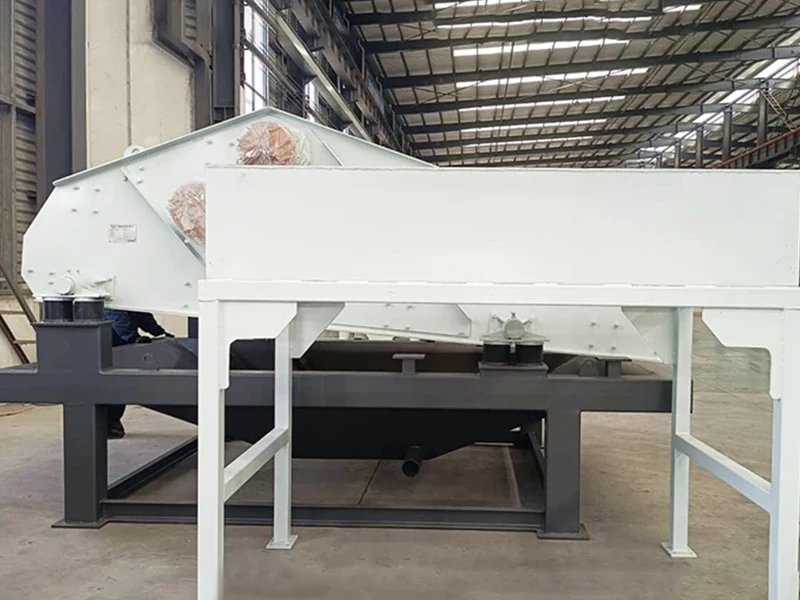

The high frequency fine sand recovery dewatering screen is a high-frequency vibrating equipment specially designed for fine sand recovery and dewatering. Driven by dual motor exciters, it is equipped with polyurethane wear-resistant screen surface and top cloth roller shaft, focusing on fine sand recovery and dewatering treatment in sand washing production line. It can greatly reduce fine material loss and improve the output and quality of finished sand. The equipment has the advantages of high dewatering efficiency, good recovery effect, energy saving, low consumption and convenient maintenance, and is suitable for sand and gravel plants, mineral processing plants and other scenarios.

Core Parameters & Specifications

Model	Screen Surface Size (L×W) mm	Processing Capacity (t/h)	Excitation Frequency (r/min)	Motor Power (kW)	Equipment Weight (t)
TS1530	1500×3000	20-40 / 30-60 / 15-30	2800	2×5.5	3.2-3.8
TS1530X	1500×3000	30-60	2800	2×5.5	3.2-3.8
TS1836	1800×3600	40-70 / 60-100 / 30-50	2800	2×7.5	5.5-6.2
TS1836X	1800×3600	60-100	2800	2×7.5	5.0-5.8
TS2040	2000×4000	60-100 / 80-150 / 40-70	2800	2×11	7.8-8.5
TS2040X	2000×4000	80-150	2800	2×11	7.2-8.0

Product Advantages & Technical Highlights

High-efficiency Recovery: High frequency vibration + polyurethane screen surface, fine sand recovery rate over 90%
Thorough Dewatering: Reduce material water content to 8%-12%
Stable Structure: Dual exciter drive + heavy-duty frame, stable operation without unbalanced load
Wear Resistant: The service life of polyurethane screen surface is 3-5 times that of ordinary screen plate
Flexible Adaptation: Accessible to sand washing production line or used independently

Applicable Scenarios & Materials

Sand and Gravel Plant: Fine sand recovery of washed sand, dewatering of manufactured sand
Mineral Processing Plant: Tailings fine material recovery, concentrate dewatering
Building Material Plant: Recycled sand dewatering, fine aggregate purification
Core Materials: Washed sand fine material, tailings fine sand, manufactured sand
Adaptable Materials: Sludge, ore fine powder, recycled construction fine material
