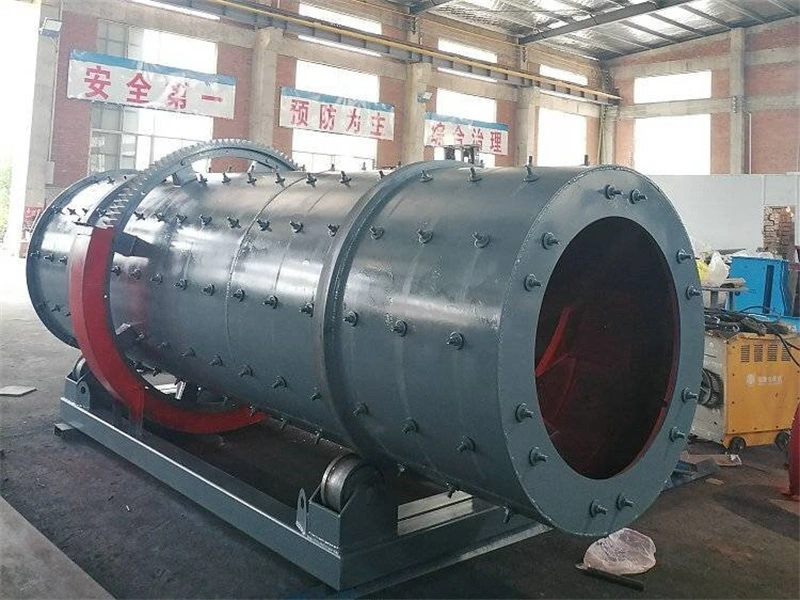

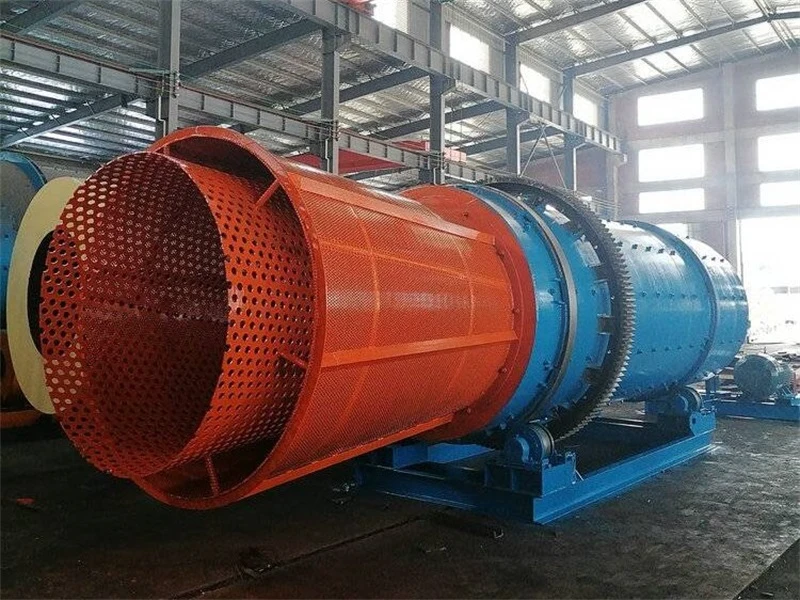

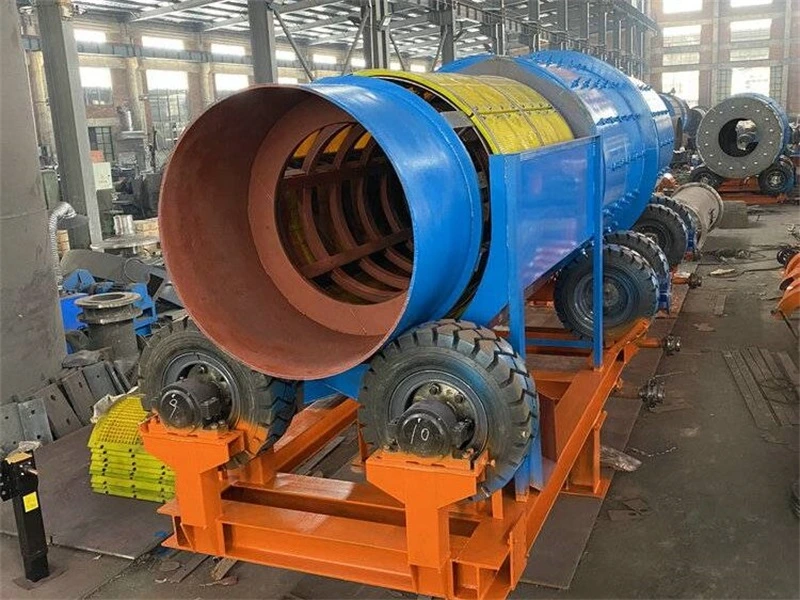

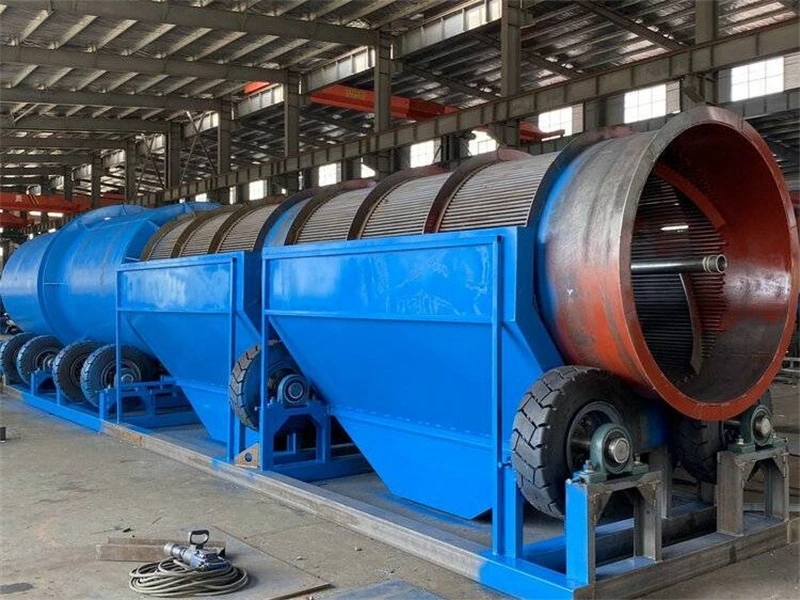

The Drum + Screen Bar Composite Sand Washer is a high-efficiency composite sand washing equipment that integrates the dual principles of drum rotation cleaning and screen bar classification screening. It adopts a core “drum + screen bar” integrated structure, which drives materials to collide and rub through low-speed drum rotation to achieve cleaning and desliming, and simultaneously uses screen bars to complete the classification of materials of different particle sizes, realizing three functions of cleaning, desliming and classification in one step. It is divided into three specifications: industrial small, industrial medium and industrial large. The equipment has the advantages of compact structure, stable operation, wear resistance, energy saving, intelligent control, strong adaptability, synchronous cleaning and classification, safety and environmental protection, with high sand washing efficiency and low energy consumption. It is good at processing difficult-to-wash sand, stone and ore with high mud content and high viscosity, and can process a variety of sand, stone and ore materials. It is easy to operate, with low maintenance cost, small floor area and low investment cost. It can not only independently complete sand washing and classification operations, but also be combined with crushing, grinding and sorting equipment to form a complete production line. It is widely used in mining, metallurgy, building materials, environmental protection, hydropower and other industries, which can effectively improve the material cleanliness and classification accuracy, reduce resource waste, lower the comprehensive operation cost, and is the preferred composite equipment for sand washing classification and ore desliming pretreatment.
Product Details
Model
Drum Size (D×L) mm
Liner Thickness mm
Screen Bar Spacing mm
Feeding Granularity mm
Processing Capacity (t/h)
Motor Power (kW)
Drum Speed (r/min)
Water Pressure (Mpa)
Water Consumption (m³/t)
Machine Weight (kg)
Sand Washing Efficiency (%)
YTS-1030 (Small)
1000×3000
15-20
1-5
≤50
30-70
30
22-26
0.3-0.5
1.0-3.2
10800
≥95
YTS-1530 (Medium)
1500×3000
20-25
2-8
≤80
70-140
55
20-24
0.3-0.5
1.0-3.2
17800
≥96
YTS-1836 (Medium)
1800×3600
20-25
3-10
≤100
120-200
75
16-20
0.3-0.5
1.0-3.2
24700
≥97
YTS-2145 (Large)
2100×4500
25-30
5-12
≤150
180-250
110
16-18
0.3-0.5
1.0-3.2
32618
≥97
YTS-2450 (Large)
2400×5000
25-30
6-15
≤200
230-300
160
15-17
0.3-0.5
1.0-3.2
48700
≥98
Product Advantages & Technical Highlights
Composite Cleaning: Drum rolling + screen bar friction for more thorough cleaning
Integrated Washing & Screening: Synchronous completion of cleaning, screening and desliming
Large Processing Capacity: Continuous feeding, suitable for high mud content sand and stone
Not Easy to Block: Reasonable screen bar spacing for smooth discharge
Wear Resistant: Thickened cylinder and sturdy screen bar for long service life
Wide Application: Suitable for sand, stone, ore and mineral materials
