Cone Crusher – High-efficiency Hard Rock Crushing Equipment

Product Overview

The cone crusher is a high-efficiency medium and fine crushing equipment with “extrusion + shearing” as the core, composed of crushing cone, concave, eccentric shaft, frame, hydraulic system and other core components. Driven by the motor, the eccentric shaft rotates to drive the crushing cone to swing, and cooperates with the concave to realize the extrusion and shearing crushing of materials. The equipment is divided into fixed and mobile types, covering small, medium and large specifications, with the advantages of firm structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, safety and environmental protection. It is mainly suitable for crushing high-hardness materials, with uniform finished product granularity and high-quality particle shape, and can process a variety of medium and high-hardness materials. It is easy to operate and low in maintenance cost, which can not only complete medium and fine crushing operations independently, but also form a complete production line with jaw crushers and other equipment. It is widely used in mining, sand and gravel, metallurgy, construction and other industries, and is the first choice for medium and fine crushing operations of high-hardness materials, meeting the crushing operations of different scales and different finished product requirements.

Core Parameters & Specifications

Model Feed Opening Size (mm) Max Feed Granularity (mm) Discharge Granularity (mm) Processing Capacity (t/h) Motor Power (kW) Spindle Speed (r/min) Machine Weight (t) Crushing Type
PY-600 (Small) 100×600 ≤80 3-15 (Adjustable) 15-40 30 1100 7.5 Extrusion Cone Crushing
PY-1200 (Medium) 150×1200 ≤120 5-25 (Adjustable) 50-120 75-90 850 18.8 Extrusion Cone Crushing
PY-1600 (Large) 200×1600 ≤180 8-35 (Adjustable) 130-250 132-160 700 36.5 Extrusion Cone Crushing
PYY-1800 (Hydraulic Mobile) 220×1800 ≤200 10-40 (Adjustable) 180-300 200 650 65 Hydraulic Extrusion Cone Crushing

Product Advantages & Technical Highlights

  • Strong crushing force: Laminated crushing, ideal for hard rock, large crushing ratio and high output
  • Stable operation: Suitable for long-term heavy load in mines, continuous operation without jamming
  • Excellent particle shape: Uniform finished product granularity, high cube content and good appearance
  • Wear resistant and durable: Wear-resistant materials for core components, long service life
  • Adjustable discharge: Flexible adjustment of discharge opening to meet different production needs
  • Wide applicability: Efficient crushing of high-hardness ores and rocks

Applicable Scenarios & Materials

Applicable Scenarios

  • Medium and fine crushing in large mines
  • Sand and gravel aggregate production line
  • Hard rock crushing
  • Gold ore dressing supporting
  • High-quality aggregate production in stone yards

Applicable Materials

  • Granite, basalt, cobblestone, iron ore, gold ore, quartz stone, limestone
  • Various high-hardness rocks

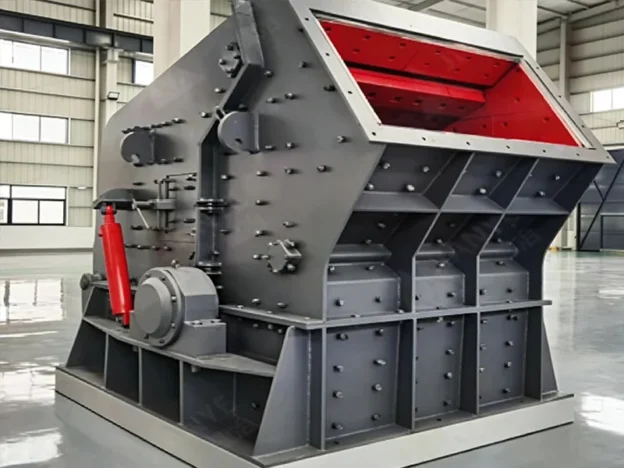

Impact Crusher – High Efficiency Medium & Fine Crushing Equipment

Product Overview

The impact crusher is a high-efficiency medium and fine crushing equipment with “impact + counterattack” as the core. It is composed of rotor, blow bar, counterattack plate, frame and other core components. Driven by the motor, the rotor rotates at a high speed to drive the blow bar to impact the materials, and then the materials are crushed by multiple counterattacks of the counterattack plate to realize the medium and fine crushing processing of the materials. The equipment is divided into fixed and mobile types, covering small, medium and large specifications. It has the advantages of simple structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, safety and environmental protection. The finished product has uniform granularity and high-quality particle shape, and can process a variety of medium-hard materials. It is the first choice for medium and fine crushing links in various crushing scenarios. It is easy to operate and has low maintenance cost. It can not only complete medium and fine crushing operations independently, but also form a complete production line with jaw crusher and other equipment. It is widely used in mining, sand and gravel, construction, metallurgy and other industries to meet the medium and fine crushing operations of different scales and different finished product requirements.

Core Parameter Specification

Model Feed Opening Size (mm) Max Feed Granularity (mm) Product Size (mm) Processing Capacity (t/h) Motor Power (kW) Rotor Speed (r/min) Machine Weight (t) Crushing Method
PF-1007 (Small) 400×730 ≤300 5-30 (Adjustable) 10-30 30 1480 6.8 Impact Counterattack Crushing
PF-1210 (Medium) 400×1080 ≤350 10-40 (Adjustable) 30-80 55-75 1250 14.5 Impact Counterattack Crushing
PF-1315 (Large) 500×1500 ≤500 15-50 (Adjustable) 80-200 110-132 1100 31.5 Impact Counterattack Crushing
PFY-1416 (Hydraulic Mobile) 550×1600 ≤550 20-60 (Adjustable) 100-220 160 1000 58 Hydraulic Impact Counterattack Crushing

Product Advantages & Technical Highlights

  • High crushing efficiency: Impact crushing, large feed, high output, smooth discharge
  • Excellent particle shape: Cubic finished products, no cracks, good appearance
  • Medium & fine crushing: Suitable for secondary crushing, uniform granularity, less over-crushing
  • Simple structure: Large maintenance space, easy replacement of wearing parts
  • Stable operation: Low vibration, low noise, continuous operation available
  • Wide applicability: Universal for soft rock, medium hard rock, ore, construction waste

Applicable Scenarios & Materials

Applicable Scenarios

  • Medium and fine crushing in sand and gravel plants
  • Secondary crushing in mines
  • Sand making production line
  • Construction waste crushing
  • Gold ore dressing raw material crushing
  • Aggregate production in stone plants

Applicable Materials

  • Limestone, bluestone, dolomite, gangue, weathered rock, placer gold ore
  • Medium and low hardness ore, concrete blocks, bricks and tiles and other construction waste

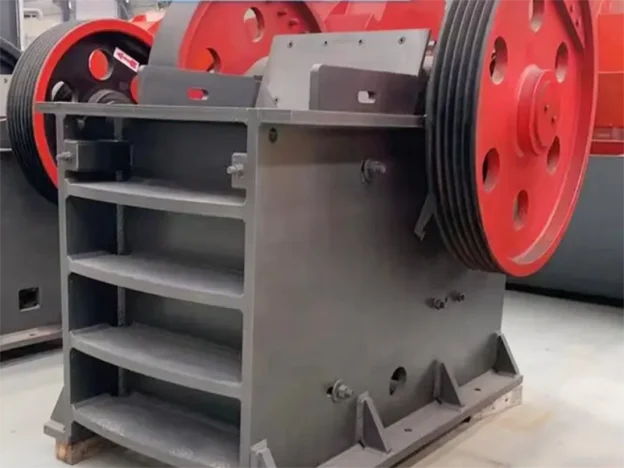

Jaw Crusher – Efficient Coarse Crushing Equipment For Mining & Construction

Product Overview

The jaw crusher is an efficient coarse crushing equipment with “extrusion crushing” as the core, which is composed of moving jaw, fixed jaw, eccentric shaft, frame and other core components. Driven by the motor, the eccentric shaft drives the moving jaw to swing back and forth to realize the extrusion and bending crushing of materials. The equipment is divided into fixed and mobile types, covering small, medium and large specifications, with the advantages of simple structure, stable operation, wear resistance and energy saving, intelligent controllability, strong adaptability, safety and environmental protection. It can process various high-hardness large materials and is the first choice for coarse crushing links in various crushing scenarios. It is easy to operate and has low maintenance cost. It can not only complete coarse crushing operation independently, but also form a complete production line with subsequent crushing equipment, and is widely used in mining, sand and stone, construction, metallurgy and other industries to meet the coarse crushing needs of different scales and scenarios.

Core Parameter Specification

Model Feed Opening Size (mm) Max Feed Particle Size (mm) Discharge Particle Size (mm) Processing Capacity (t/h) Motor Power (kW) Eccentric Shaft Speed (r/min) Total Weight (t) Crushing Method
PE-250×400 (Small) 250×400 ≤210 10-40 (Adjustable) 5-15 15 300 2.8 Double Swing Extrusion
PE-500×750 (Medium) 500×750 ≤425 25-60 (Adjustable) 40-110 55 275 15.5 Double Swing Extrusion
PE-900×1200 (Large) 900×1200 ≤750 40-100 (Adjustable) 100-250 110 220 68 Double Swing Extrusion
PEY-600×900 (Hydraulic Mobile) 600×900 ≤500 30-80 (Adjustable) 80-180 75 250 32 Hydraulic Double Swing Extrusion

Product Advantages & Technical Highlights

  • Powerful Coarse Crushing: Large bite force of jaw plate, one-time crushing of large ore
  • Sturdy Structure: Thick and stable body, impact resistant and non-deformable
  • Adjustable Discharge: Flexible adjustment of discharge opening size to adapt to different production needs
  • Anti-jamming: Deep cavity crushing, smooth feeding, capable of crushing wet and hard materials
  • Low Failure Rate: Simple structure, few wearing parts, low maintenance cost
  • Wide Applicability: Universal for mining, sand and stone, gold mine, construction waste

Applicable Scenarios & Materials

Applicable Scenarios

  • Mine primary coarse crushing
  • Placer gold ore raw material crushing
  • Mountain stone crushing
  • First crushing of sand making production line
  • Stone yard coarse crushing
  • Construction waste pretreatment

Applicable Materials

  • Granite, Basalt, River Pebble, Gold Ore, Limestone
  • Blue Stone, Gangue, Large Mountain Stone, Construction Waste

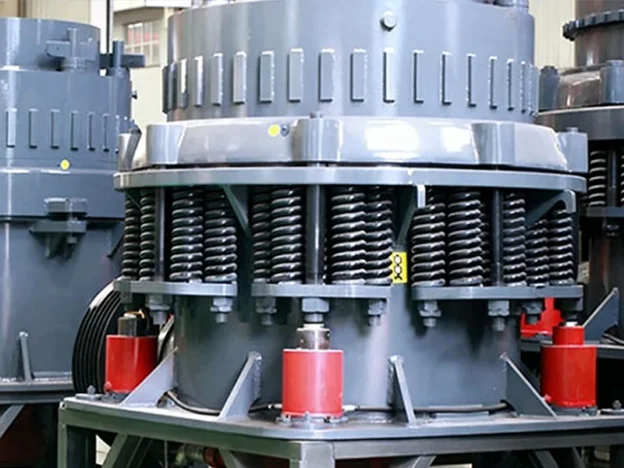

Multi-cylinder Cone Crusher – High-efficiency Mining Crushing Equipment

Product Overview

The multi-cylinder cone crusher is a high-end and efficient mining crushing equipment integrating coarse, medium and ultra-fine crushing. It adopts a multi-cylinder hydraulic coordination structure as the core, and the eccentric spindle driven by a high-power energy-saving motor drives the crushing cone to rotate. Through the dual crushing principles of “lamination + impact”, it crushes large hard materials into uniform granular materials meeting the requirements. The equipment has the advantages of stable volume, multi-cylinder coordination, wear resistance and energy saving, intelligent control, strong adaptability, safety and environmental protection, accuracy and high efficiency. It is divided into fixed and mobile types, covering small, medium and large specifications. Compared with the single-cylinder cone crusher, it is more suitable for high-load, high-end and large-scale crushing needs, and can adapt to a variety of high-end scenarios and ultra-high hardness materials. It can be used alone or with a complete high-end crushing production line, and is the core high-end crushing equipment for large-scale mining, sand and gravel deep processing, metallurgical beneficiation and other industries.

Core Parameters

Model Feed Opening Size (mm) Feed Particle Size (mm) Product Particle Size (mm) Processing Capacity (t/h) Motor Power (kW) Spindle Speed (r/min) Machine Weight (t) Number of Hydraulic Cylinders
DC-800 (Small) 120-200 ≤180 5-20 (Adjustable) 30-80 30-55 1100-1400 5.5-8.0 4
DC-1200 (Medium) 200-300 ≤260 8-30 (Adjustable) 80-200 75-110 850-1050 18.0-25.0 6
DC-1800 (Large) 300-400 ≤360 10-40 (Adjustable) 200-450 132-200 650-850 45.0-55.0 8
DCY-1500 (Mobile) 250-350 ≤320 8-35 (Adjustable) 120-280 90-160 750-950 32.0-38.0 6

Product Advantages & Technical Highlights

  • Multi-cylinder Stability: Hydraulic support for stable operation and strong impact resistance
  • Large Crushing Force: Suitable for high-hardness ore, large crushing ratio and high output
  • Excellent Particle Shape: Uniform finished product with more cubic particles
  • Overload Protection: Multi-point hydraulic protection to prevent material jamming and machine stalling
  • Wear Resistant: Thickened wear-resistant core components for long service life under heavy load
  • Wide Application: Efficient crushing for mines, sand and gravel, gold ore, hard rock, etc.

Applicable Scenarios & Materials

Scenarios

  • Medium and fine crushing in large mines
  • Sand and gravel aggregate production lines
  • High-hardness rock crushing
  • Gold ore beneficiation pretreatment
  • High-quality stone production

Materials

  • Granite, basalt, iron ore, gold ore, quartz stone
  • River pebbles, limestone, various hard ores

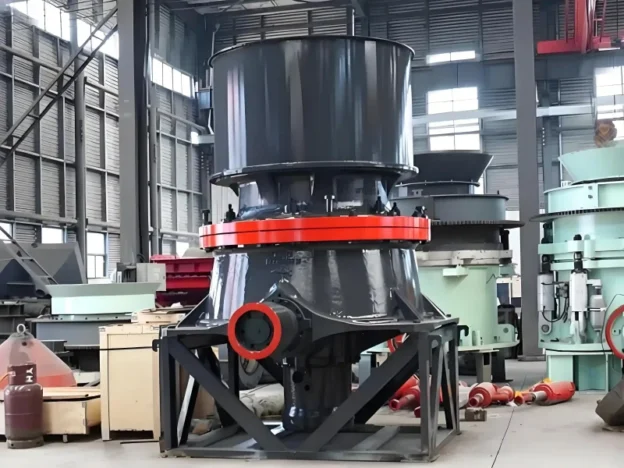

Single Cylinder Cone Crusher – Efficient Mining Crushing Equipment

Product Overview

The single cylinder cone crusher is a high-efficiency mining crushing equipment integrating medium, fine and ultra-fine crushing. Its core adopts a single cylinder hydraulic integrated structure, driven by a motor to drive the eccentric spindle to rotate the crushing cone, and crushes massive materials into granular materials meeting requirements through the laminated crushing principle. The equipment has the advantages of compact volume, simple structure, wear resistance and energy saving, intelligent control, strong adaptability, safety and reliability, and high cost performance. It is divided into fixed and mobile types, covering small, medium and large specifications. Compared with multi-cylinder cone crushers, it is more convenient and economical, can adapt to a variety of scenarios and medium and high hardness materials. It can be used alone or with a complete crushing production line, and is the core crushing equipment in mining, sand and gravel processing, metallurgical mineral processing and other industries.

Core Parameter Specification

Model Feed Opening Size (mm) Feed Particle Size (mm) Discharge Particle Size (mm) Processing Capacity (t/h) Motor Power (kW) Spindle Speed (r/min) Machine Weight (t)
SC-600 (Small) 100-180 ≤150 5-25 (Adjustable) 10-30 15-30 1200-1500 2.5-4.0
SC-1000 (Medium) 180-250 ≤220 8-35 (Adjustable) 50-120 45-75 900-1100 10.5-13.0
SC-1500 (Large) 250-350 ≤320 10-45 (Adjustable) 150-300 90-160 700-900 32-38.0
SCY-1200 (Mobile) 200-280 ≤250 8-30 (Adjustable) 60-150 55-90 850-1050 18-22.0

Product Advantages & Technical Highlights

  • Powerful Crushing: Single cylinder hydraulic drive, ideal for hard rock, large crushing ratio and high output
  • Stable Operation: Stable continuous operation, suitable for long-term heavy load production in mines
  • Uniform Discharge: Good finished particle shape and uniform size, meeting high-standard material requirements
  • Intelligent Cavity Cleaning: Hydraulic cavity cleaning and automatic adjustment, reduce jamming and short downtime
  • Wear Resistant & Durable: Wear-resistant material for core components, long service life and low cost
  • Wide Application: Capable of crushing hard rock, ore, river pebbles, granite and other materials

Applicable Scenarios & Materials

Applicable Scenarios

Large sand and gravel plants, medium and fine crushing in mines, hard rock crushing, sand making production lines, gold ore dressing supporting, high-quality aggregate production in stone yards

Applicable Materials

Granite, basalt, river pebbles, iron ore, gold ore, limestone, quartz stone, cobblestone, various high-hardness rocks

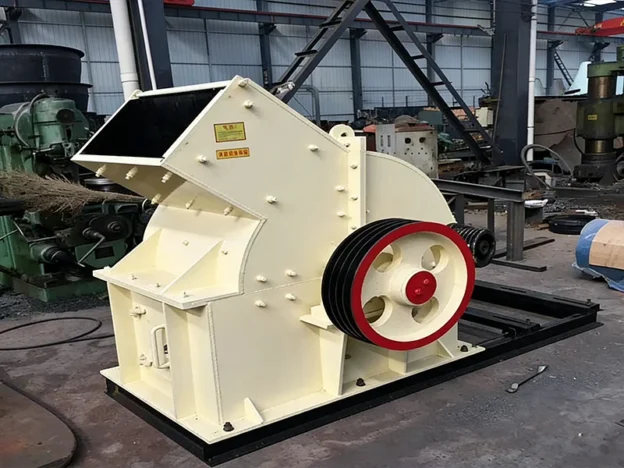

Hammer Crusher – Multi-functional Mining Crushing Equipment

Product Overview

The hammer crusher is a multi-functional mining crushing equipment integrating primary, secondary and fine crushing. Driven by a motor, the core part drives the rotor to drive the hammer head to rotate at a high speed. Through the dual action of hammer head impact and liner counterattack, the bulk materials are crushed into granular materials meeting the requirements. The equipment has the advantages of compact volume, simple structure, wear resistance and energy saving, intelligent control, strong adaptability, safety and reliability. It is divided into fixed and mobile types, covering small, medium and large specifications, and can be adapted to a variety of scenarios and materials. It can be used alone or with a complete crushing production line. With high crushing efficiency, uniform discharge and convenient maintenance, it is the core crushing equipment in mining, sand and gravel processing, construction waste recycling and other industries.

Core Parameter Specification

Model Feed Opening Size (mm) Feed Particle Size (mm) Discharge Particle Size (mm) Processing Capacity (t/h) Motor Power (kW) Rotor Speed (r/min) Machine Weight (t)
PC-400×300 (Small) 400×300 ≤300 0.5-10 (Adjustable) 5-11 15-30 1450 1.2-2.0
PC-800×600 (Medium) 800×600 ≤500 1-20 (Adjustable) 50-100 75-110 980 8.5-10.0
PC-1200×1000 (Large) 1200×1000 ≤800 2-30 (Adjustable) 150-300 160-220 750 28-32.0
PCY-1000 (Mobile) 600×800 ≤400 1-15 (Adjustable) 40-80 55-90 1000 12-15.0

Product Advantages & Technical Highlights

  • Powerful crushing: High hammering force, easily crush hard and wet materials
  • Uniform discharge: Consistent finished product size meets subsequent screening and mineral processing requirements
  • Compact structure: Simple body, small floor space, easy installation and movement
  • Low failure rate: Few wearing parts, quick maintenance, low maintenance cost
  • Wide applicability: Can crush ore, coal gangue, construction waste, stone, etc.
  • Stable output: Continuous feeding and crushing, suitable for production line supporting

Applicable Scenarios & Materials

Application Scenarios

  • Placer gold ore raw material crushing
  • Mountain stone crushing
  • Ore primary crushing
  • Construction waste crushing
  • Sand making production line
  • Concentrator pretreatment
  • Stone yard secondary and fine crushing

Applicable Materials

  • Limestone, bluestone, coal gangue, weathered rock, placer gold block
  • Cobblestone, ore, construction waste, brick and tile, soil-stone mixture

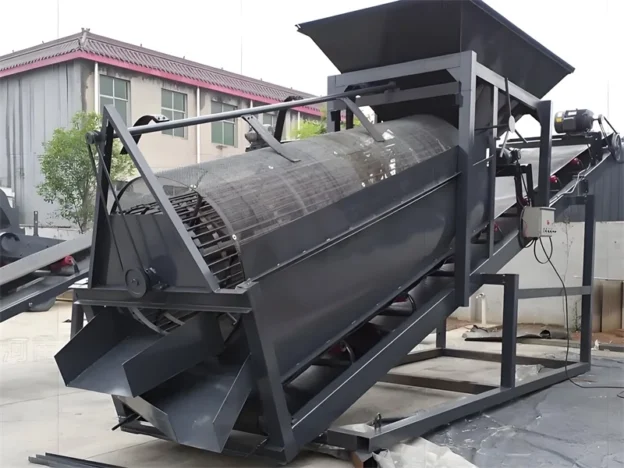

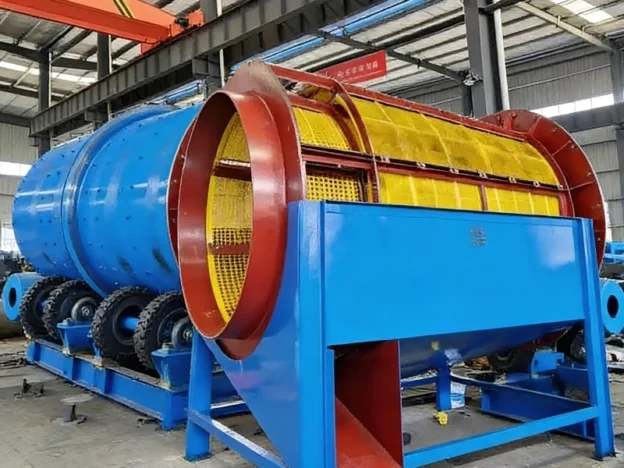

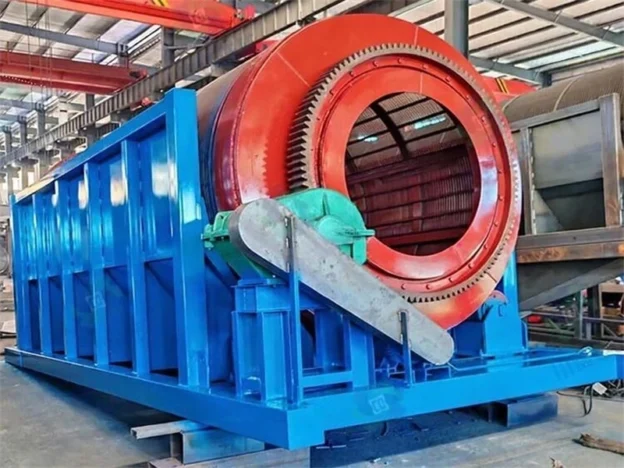

Mobile Trommel Screen Gold Mining Equipment

Product Overview

This is a mobile trommel screen gold mining equipment integrating screening, ore washing and classification. It can be directly driven to the placer gold mine site for operation without infrastructure installation. It removes large impurities and classifies materials through the double-layer trommel screen mesh, providing high-quality feeding for subsequent gravity separation equipment. With strong adaptability, energy saving and water saving, it is an ideal pre-processing equipment for field placer gold dressing.

Core Parameter Specification

Specific Model Trommel Size (Length × Diameter) mm Processing Capacity (m³/h) Screen Mesh Aperture (mm) Total Motor Power (kW) Equipment Weight (kg) Movement Mode
GT-10 Small 2000×800 8-15 5-20 5.5 1200-1500 Tire Traction
GT-20 Standard 3000×1000 15-25 5-25 7.5 2200-2600 Tire Traction
GT-30 Medium 4000×1200 25-35 5-30 11 3500-4000 Semi-trailer Traction
GT-50 Large 5000×1500 40-50 5-30 15 6000-6500 Semi-trailer Traction
GT-80 Double Layer 6000×1800 60-80 Upper 10-30 / Lower 5-15 22 9500-10000 Semi-trailer Traction

Product Advantages & Technical Highlights

  • Flexible Movement: Wheeled/traction chassis, convenient transfer without disassembly and assembly
  • Integrated Whole Machine: Integrates screening, ore washing and mineral processing, production on landing
  • High-efficiency Gold Separation: Screening and gold panning completed synchronously, high fine gold recovery rate
  • No Foundation Required: No cement foundation pouring, start work with power on
  • Strong Adaptability: Operable in river beaches, mountainous areas, dry land, tailings areas
  • Easy Operation: One-key start and stop, manageable by a single person, labor-saving

Applicable Scenarios & Materials

Applicable Scenarios

  • Field placer gold mobile mining, river beach gold panning, dry land placer gold dressing
  • Tailings reprocessing, scattered gold mines in mountainous areas, small mobile gold panning production line

Applicable Materials

  • Placer gold ore, river sand ore, mountain sand ore, weathered sand, muddy gold-bearing ore
  • Fine placer gold, flake gold, granular gold, low-grade gold ore tailings

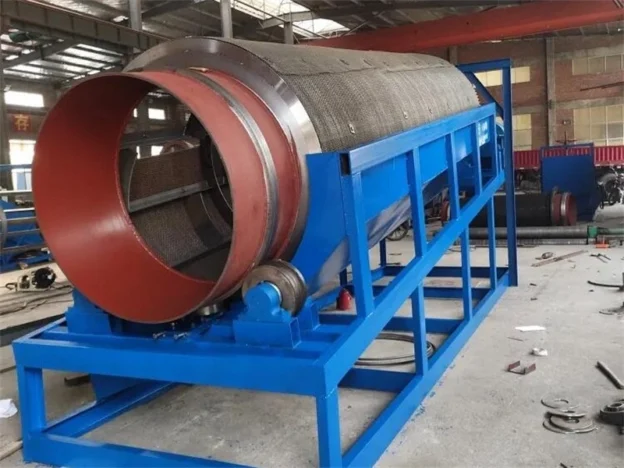

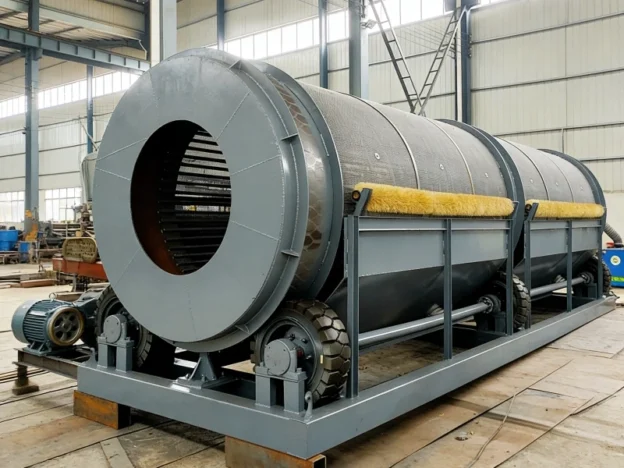

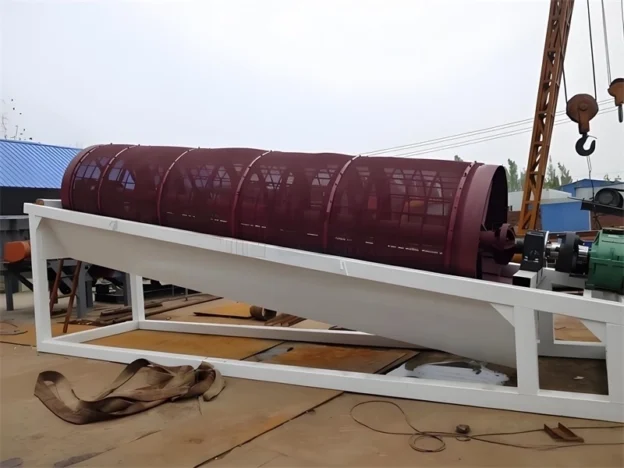

Shaftless Trommel Screen – Professional Screening & Ore Washing Equipment

Product Overview

The shaftless trommel screen is a screening and ore washing equipment specially designed for high viscosity and high mud content materials. It adopts a shaftless roller support structure, which completely solves the material jamming and blocking problem of the traditional shafted trommel screen. The equipment integrates ore washing and screening functions, with stable operation, energy saving and high efficiency. It can be directly driven to field mining sites for operation, especially suitable for sand gold beneficiation, construction waste sorting and other scenarios, and is an ideal pre-processing equipment for handling complex materials.

Core Technical Parameters

Model Drum Size (L×D) mm Processing Capacity (m³/h) Screen Mesh Aperture (mm) Total Motor Power (kW) Equipment Weight (kg) Installation Method
WZ-10 Small 2000×800 8-15 5-20 5.5 1200-1500 Tyred Traction Mobile
WZ-20 Standard 3000×1000 15-25 5-25 7.5 2200-2600 Tyred Traction Mobile
WZ-30 Medium 4000×1200 25-35 5-30 11 3500-4000 Semi-trailer Traction Mobile
WZ-50 Large 5000×1500 40-50 5-30 15 6000-6500 Semi-trailer Traction Mobile
WZ-80 Double Layer 6000×1800 60-80 Upper:10-30 / Lower:5-15 22 9500-10000 Fixed / Semi-trailer Mobile

Product Advantages & Technical Highlights

  • No tangling or blocking: Smooth screening even with high mud, straw, garbage and sundries
  • Large processing capacity: Large effective screening area, high hourly output, suitable for high flow operation
  • Durable: High cylinder strength, impact resistance, wear resistance and longer service life
  • Stable operation: Roller support, uniform force, low vibration and low noise
  • Easy maintenance: Simple structure, few wearing parts, convenient inspection and replacement

Applicable Scenarios & Materials

Applicable Scenarios

  • Screening of muddy sand gold ore, river sand and gravel screening, construction waste sorting
  • Straw and soil separation, earth and stone separation in stone yard, sand making production line
  • Tailings treatment, engineering muck screening

Applicable Materials

  • River sand, mountain sand, weathered sand, sand gold ore, muddy wet material, soil with stone
  • Sand and gravel mixture, construction waste, straw muck, loose gravel, silty clay

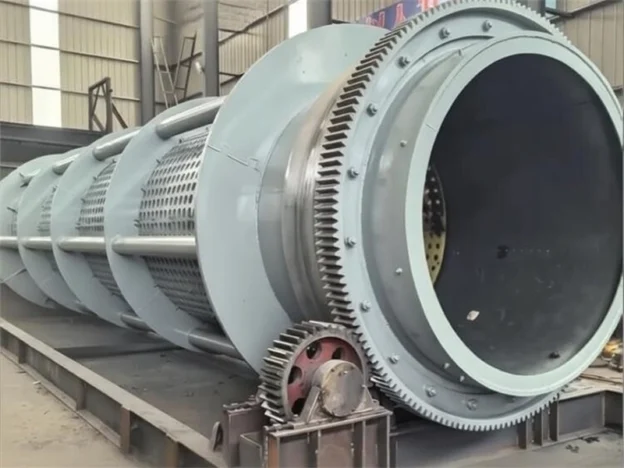

Double & Triple Trommel Screen – High Efficiency Multi-stage Screening Equipment

Product Advantages & Technical Highlights

  • Multi-stage screening: Double/triple drum, complete multi-stage classification at one time for more refined separation
  • High efficiency and output: Produce various finished products at one screening with high yield, few processes and high benefits
  • Clear classification: Uniform particle size of finished products to meet different material standards
  • Durable: Thick and stable frame, suitable for long-term continuous heavy-duty operation
  • Non-blocking: Rotary drum screening, wet and sticky materials can pass through smoothly
  • High versatility: Applicable to sand, ore, gold ore, stone and other scenarios

Product Specification Parameters

Specific Model Drum Size (L × D) mm Screen Layers Processing Capacity (m³/h) Screen Mesh Aperture (mm) Total Motor Power (kW) Equipment Weight (kg) Installation Method
SC-20 Double Small 3000×1000 2 15-25 Upper 10-25 / Lower 5-15 7.5 2200-2600 Tyre traction mobile
SC-30 Double Medium 4000×1200 2 25-35 Upper 15-30 / Lower 5-20 11 3500-4000 Semi-trailer traction mobile
SC-50 Double Large 5000×1500 2 40-50 Upper 20-30 / Lower 5-15 15 6000-6500 Semi-trailer traction mobile
SC-80 Double Heavy 6000×1800 2 60-80 Upper 20-30 / Lower 5-15 22 9500-10000 Fixed type
SC-3S Triple Medium 4000×1200 3 20-30 Upper 20-30 / Middle 10-20 / Lower 5-10 15 4000-4500 Semi-trailer traction mobile
SC-5S Triple Large 5000×1500 3 35-45 Upper 20-30 / Middle 10-20 / Lower 5-10 18.5 7000-7500 Fixed type

Applicable Scenarios & Materials

Applicable Scenarios

  • Multi-stage screening in sand and gravel yard
  • Primary grading of placer gold ore
  • Sand making production line
  • Stone yard grading
  • River sand mining screening
  • Mine raw material grading
  • Construction waste grading
  • Multi-grade separation of tailings

Applicable Materials

  • River sand, mountain sand, weathered sand
  • Placer gold ore material, sand and gravel mixture
  • Ore, soil and stone mixture, tailings sand
  • Muddy sand and gravel, loose gravel, silty clay



Mining Trommel Screen – Professional Ore Screening Equipment

Product Overview

The mining trommel screen is a professional integrated equipment for ore screening and washing designed for ore pre-treatment. It adopts a reinforced and wear-resistant structure, which can efficiently complete ore classification, impurity removal and mud washing, and solve the material blocking problem of high mud content ore. The equipment supports mobile operation, adapts to a variety of beneficiation production lines, and is the core pre-treatment equipment to improve the beneficiation efficiency of sand gold, iron ore and other mining areas.

Core Parameters & Specifications

Model Drum Size (Length × Diameter) mm Processing Capacity (m³/h) Screen Mesh Aperture (mm) Total Motor Power (kW) Equipment Weight (kg) Installation Method
KGS-10 Small 2000×800 8-15 5-20 5.5 1200-1500 Tire Traction Mobile
KGS-20 Standard 3000×1000 15-25 5-25 7.5 2200-2600 Tire Traction Mobile
KGS-30 Medium 4000×1200 25-35 5-30 11 3500-4000 Semi-trailer Traction Mobile
KGS-50 Large 5000×1500 40-50 5-30 15 6000-6500 Semi-trailer Traction Mobile
KGS-80 Double Layer 6000×1800 60-80 Upper:10-30 / Lower:5-15 22 9500-10000 Fixed / Semi-trailer Mobile

Product Advantages & Technical Highlights

  • Special for mining: Designed for mining working conditions, heavy load resistant, stable and reliable screening
  • Large processing capacity: Continuous rotary screening, suitable for mass material processing in mines
  • Durable: Thickened and reinforced frame, impact and fatigue resistance, long service life
  • Anti-blocking: Trommel screening, smooth feeding of wet, sticky and soil-containing materials
  • Easy maintenance: Simple structure, few wearing parts, convenient later inspection and replacement
  • Strong versatility: Applicable to various mining materials such as sand, ore sand, tailings, gold ore

Applicable Scenarios & Materials

Applicable Scenarios

  • Primary screening of placer gold ore
  • Mine tailings treatment
  • Sand and gravel aggregate classification
  • Soil and rock separation in stone yard
  • Sand making production line
  • River sand mining and screening
  • Mine raw material pre-treatment
  • Desliming of muddy ore materials

Applicable Materials

  • Placer gold ore, river sand, mountain sand, weathered sand
  • Ore mixture, soil and rock mixture, tailings sand
  • Sand and gravel aggregate, muddy sand and gravel, loose gravel, silty clay





GS Series Fixed Drum Screen – Industrial Material Screening Equipment

Product Overview

The fixed drum screen is an industrial equipment for the classification and screening of loose materials with fixed installation. It adopts the principle of drum rotation screening and separates materials by particle size through screen meshes of different apertures. The equipment has a solid structure, stable operation, wear resistance and energy saving, and can be adapted to various industry scenarios and support customized transformation. It can effectively improve the efficiency of material screening and classification accuracy, reduce labor and use costs, and is a core auxiliary equipment for material processing in mining, sand and stone, building materials and other industries.

Core Specifications

Model Drum Specification (Diameter × Length) mm Processing Capacity (t/h) Drum Speed (r/min) Motor Power (kW)
GS-800 Φ800×2000 10-20 15-22 3.0
GS-1200 Φ1200×3000 30-60 18-25 7.5
GS-1500 Φ1500×4000 60-100 20-28 15.0
GS-1800 Φ1800×5000 100-150 22-30 22.0
GS-2400 Φ2400×6000 150-200 25-30 30.0

Product Advantages & Technical Highlights

  • Sturdy and Durable: Solid fixed frame structure, no shaking or displacement during operation, stable for long-term running
  • Smooth Screening: Continuous drum rotation, no material blockage, clean separation of coarse and fine materials
  • Low Failure Rate: Simple and mature structure, few wearing parts, low later maintenance cost
  • Large Processing Capacity: Continuous feeding and discharging, suitable for long-term mass screening in production lines
  • Energy Saving & Environmental Protection: Reasonable power matching, low energy consumption, low noise, environmental protection and high efficiency
  • Strong Versatility: Adaptable to various materials such as sand and stone, mineral sand, soil with stone, gold ore material, etc.

Applicable Scenarios & Materials

Applicable Scenarios

  • Fixed sand field screening, primary sand gold screening, river sand and stone classification
  • Mine tailings screening, sand making production line supporting, construction waste treatment
  • Soil and stone separation in stone plant, farmland soil improvement screening

Applicable Materials

  • River sand, mountain sand, weathered sand, sand gold ore material, sand and stone mixture
  • Soil with stone, silty clay, loose gravel, construction waste, mine tailings, muddy sand and stone





Fixed Single-layer Shafted Trommel Screen

Product Overview

The fixed single-layer shafted trommel screen is an industrial equipment for fixed installation used for single particle size classification and screening of loose materials. It adopts the screening principle of the main shaft driving the drum to rotate, with a single-layer wear-resistant screen mesh to accurately separate materials according to the preset particle size. The equipment has the advantages of simple structure, stable operation, wear resistance, energy saving, convenient installation, anti-blocking, anti-sticking, intelligent controllability and strong adaptability. It focuses on single particle size classification with high screening precision and no cross-contamination. It can be customized according to customer needs, effectively improving the efficiency of material screening and reducing labor and use costs. It is a core auxiliary equipment for material processing with requirements for classification purity in mining, sand and stone, building materials and other industries.

Core Parameter Specification

Model Drum Specification (D×L) mm Processing Capacity (t/h) Drum Speed (r/min) Motor Power (kW) Screen Mesh Aperture (mm)
GSZ-800 (Single-layer Shafted) Φ800×2000 8-18 15-22 3.0 5-50 (Customizable)
GSZ-1200 (Single-layer Shafted) Φ1200×3000 25-55 18-25 7.5 5-80 (Customizable)
GSZ-1500 (Single-layer Shafted) Φ1500×4000 50-90 20-28 15.0 10-100 (Customizable)
GSZ-1800 (Single-layer Shafted) Φ1800×5000 90-140 22-30 22.0 10-100 (Customizable)
GSZ-2400 (Single-layer Shafted) Φ2400×6000 140-190 25-30 30.0 10-100 (Customizable)

Product Advantages & Technical Highlights

  • Stable Fixation: Solid chassis, no displacement or shaking during long-term fixed operation
  • Shafted Transmission: Direct power transmission, stable operation without deviation
  • High Screening Efficiency: Single-layer screen mesh, smooth material flow, no blockage or winding
  • Simple Structure: Few wearing parts, convenient maintenance and low cost
  • Reliable Operation: Low vibration and noise, support 24-hour continuous work
  • Strong Adaptability: Can work alone or with mineral processing, sand making production lines

Applicable Scenarios & Materials

Applicable Scenarios

  • Fixed primary screening of placer gold, fixed classification of sand and stone yard
  • Mine tailings screening, supporting of small mineral processing production lines
  • Construction aggregate screening, fixed treatment of construction waste
  • Farmland soil screening, desliming screening of stone yard

Applicable Materials

  • River sand, mountain sand, weathered sand, placer gold material, sand-stone mixture
  • Soil with stone, loose gravel, silty clay, low-grade gold-bearing sandstone
  • Construction waste mixture, mine tailings sand
