Mobile Trommel Screen Gold Mining Equipment

It integrates screening, ore washing and classification, and can be directly driven to the placer gold mine site for operation without infrastructure installation.

With flexible movement and high fine gold recovery rate, it is applicable to various operation scenarios such as river beaches, mountainous areas and tailings areas.

One-key start and stop, easy to operate, and can be managed by a single person, saving labor and effort.

Inquiry Now

Product Overview

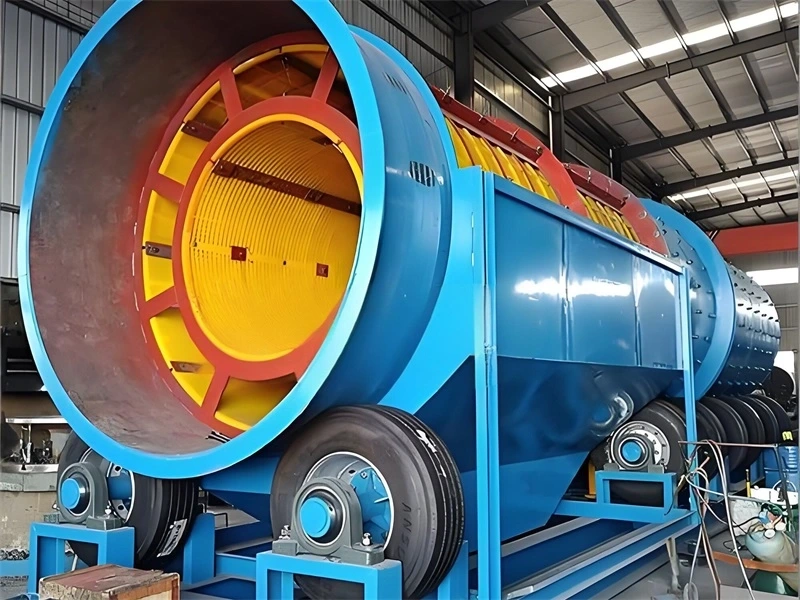

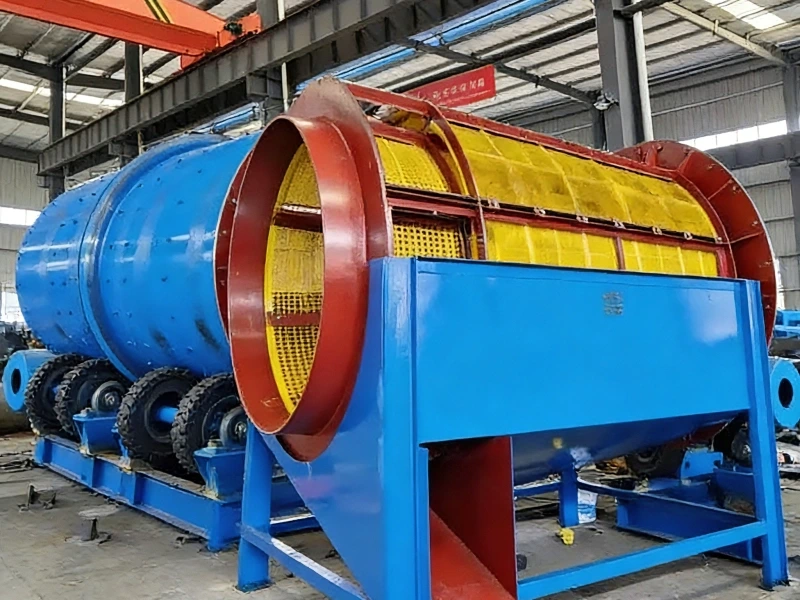

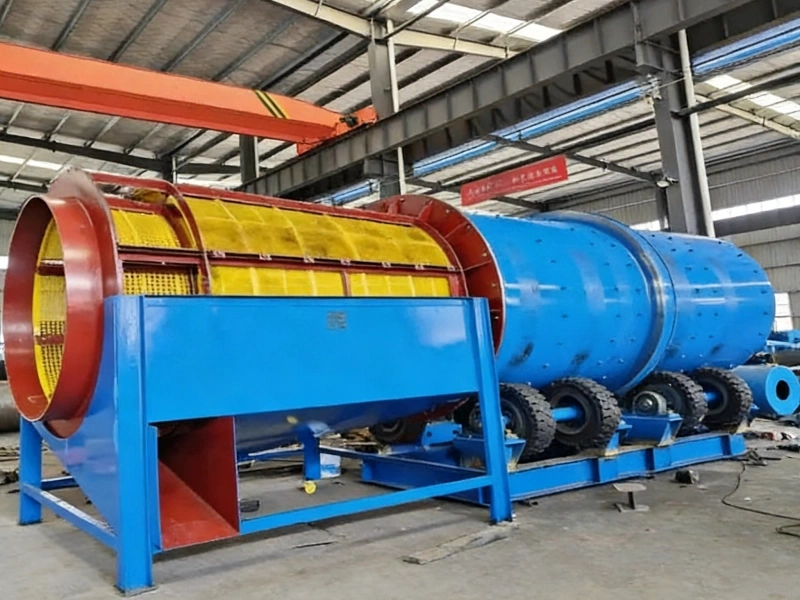

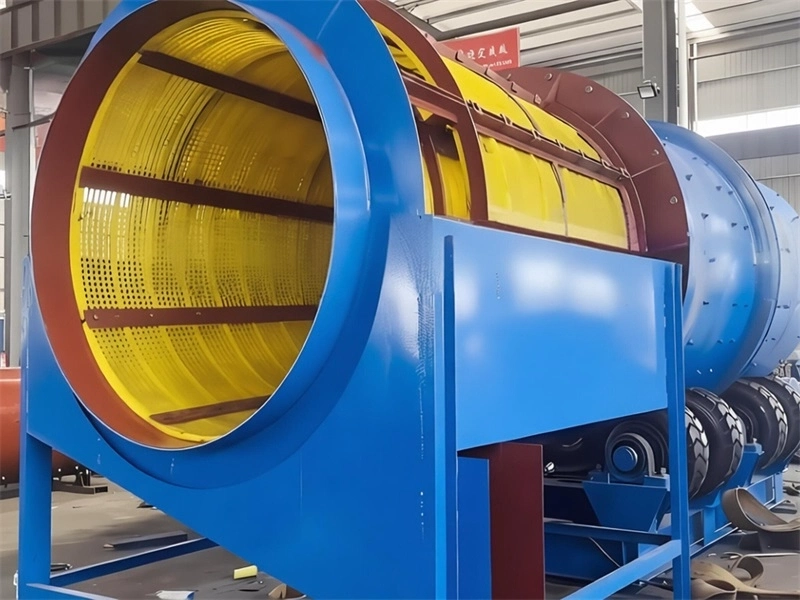

This is a mobile trommel screen gold mining equipment integrating screening, ore washing and classification. It can be directly driven to the placer gold mine site for operation without infrastructure installation. It removes large impurities and classifies materials through the double-layer trommel screen mesh, providing high-quality feeding for subsequent gravity separation equipment. With strong adaptability, energy saving and water saving, it is an ideal pre-processing equipment for field placer gold dressing.

Core Parameter Specification

Specific Model	Trommel Size (Length × Diameter) mm	Processing Capacity (m³/h)	Screen Mesh Aperture (mm)	Total Motor Power (kW)	Equipment Weight (kg)	Movement Mode
GT-10 Small	2000×800	8-15	5-20	5.5	1200-1500	Tire Traction
GT-20 Standard	3000×1000	15-25	5-25	7.5	2200-2600	Tire Traction
GT-30 Medium	4000×1200	25-35	5-30	11	3500-4000	Semi-trailer Traction
GT-50 Large	5000×1500	40-50	5-30	15	6000-6500	Semi-trailer Traction
GT-80 Double Layer	6000×1800	60-80	Upper 10-30 / Lower 5-15	22	9500-10000	Semi-trailer Traction

Product Advantages & Technical Highlights

Flexible Movement: Wheeled/traction chassis, convenient transfer without disassembly and assembly
Integrated Whole Machine: Integrates screening, ore washing and mineral processing, production on landing
High-efficiency Gold Separation: Screening and gold panning completed synchronously, high fine gold recovery rate
No Foundation Required: No cement foundation pouring, start work with power on
Strong Adaptability: Operable in river beaches, mountainous areas, dry land, tailings areas
Easy Operation: One-key start and stop, manageable by a single person, labor-saving

Applicable Scenarios & Materials

Applicable Scenarios

Field placer gold mobile mining, river beach gold panning, dry land placer gold dressing
Tailings reprocessing, scattered gold mines in mountainous areas, small mobile gold panning production line

Applicable Materials

Placer gold ore, river sand ore, mountain sand ore, weathered sand, muddy gold-bearing ore
Fine placer gold, flake gold, granular gold, low-grade gold ore tailings
