Double & Triple Trommel Screen – High Efficiency Multi-stage Screening Equipment | Qingzhou Dayang Heavy Industry Machinery Manufacturing Co., Ltd.

It integrates multi-stage screening and ore washing functions, completing 2-3 grade classification at one time for more refined separation.

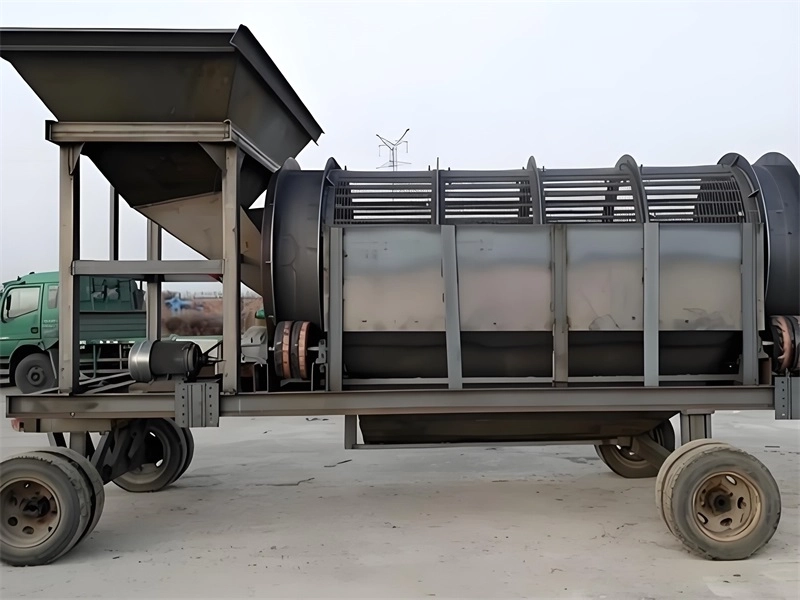

With reinforced wear-resistant structure, it supports mobile or fixed installation and is suitable for various ore and sand grading scenarios.

It can screen wet and sticky materials smoothly without blockage, and is durable for long-term continuous heavy-duty operation.

Product Advantages & Technical Highlights

Multi-stage screening: Double/triple drum, complete multi-stage classification at one time for more refined separation
High efficiency and output: Produce various finished products at one screening with high yield, few processes and high benefits
Clear classification: Uniform particle size of finished products to meet different material standards
Durable: Thick and stable frame, suitable for long-term continuous heavy-duty operation
Non-blocking: Rotary drum screening, wet and sticky materials can pass through smoothly
High versatility: Applicable to sand, ore, gold ore, stone and other scenarios

Specific Model	Drum Size (L × D) mm	Screen Layers	Processing Capacity (m³/h)	Screen Mesh Aperture (mm)	Total Motor Power (kW)	Equipment Weight (kg)	Installation Method
SC-20 Double Small	3000×1000	2	15-25	Upper 10-25 / Lower 5-15	7.5	2200-2600	Tyre traction mobile
SC-30 Double Medium	4000×1200	2	25-35	Upper 15-30 / Lower 5-20	11	3500-4000	Semi-trailer traction mobile
SC-50 Double Large	5000×1500	2	40-50	Upper 20-30 / Lower 5-15	15	6000-6500	Semi-trailer traction mobile
SC-80 Double Heavy	6000×1800	2	60-80	Upper 20-30 / Lower 5-15	22	9500-10000	Fixed type
SC-3S Triple Medium	4000×1200	3	20-30	Upper 20-30 / Middle 10-20 / Lower 5-10	15	4000-4500	Semi-trailer traction mobile
SC-5S Triple Large	5000×1500	3	35-45	Upper 20-30 / Middle 10-20 / Lower 5-10	18.5	7000-7500	Fixed type
