6-S Gravity Concentrating Table with Integrated Water Supply System – Standard Type

Leave a reply

Product Overview

The standard 6-S gravity concentrating table with integrated water supply system adopts a red and black heavy-duty frame with a gray sealed drive box, and a grooved wear-resistant fiberglass bed surface. It is mainly used for the enrichment and separation of fine-grained minerals such as gold, tungsten and tin, and can also be used for the recovery of precious metals from tailings and mineral processing process tests. The equipment realizes mineral separation through the synergy of reciprocating vibration of the bed surface and precise water flow. The integrated water supply system ensures uniform and steady water flow. It is suitable for small and medium-sized mineral processing plants, laboratories and teaching scenarios, with the advantages of high separation precision, environmental protection without chemicals and easy operation.

Core Technical Parameters

Model Bed Size (L × W) mm Processing Capacity (t/d) Stroke (mm) Stroke Frequency (r/min) Motor Power (kW) Equipment Weight (t)
6-S Standard Table 6100×1830 8-15 16-24 280-320 3.0 2.8-3.2
6-S Wide Table 6100×2000 12-22 16-24 280-320 3.7 3.5-4.0
6-S Test Table 5860×1830 5-10 16-24 280-320 2.2 2.2-2.6

Product Advantages & Technical Highlights

  • Precise water supply: Integrated water supply system with uniform and steady water flow to improve separation precision
  • Stable separation: Synergy of gravity and water flow for reliable and stable mineral enrichment ratio
  • Wear-resistant bed surface: Fiberglass material with corrosion resistance, easy cleaning and service life over 5 years
  • Wide adaptability: Suitable for mass production and tests, covering mineral processing needs in multiple scenarios

Applicable Scenarios & Materials

Applicable Scenarios

  • Large mines: Multi-stage classification of ore raw materials, separation of oversize lumps
  • Large sand and gravel plants: Fine classification of sand and gravel raw materials, standardized processing of aggregates
  • Building material factories: Multi-stage classification of crushed construction waste, purification of recycled materials
  • Coal mines: In-depth classification of raw coal, fine separation of gangue

Core Applicable Materials

Gold, tungsten, tin, lead-zinc ore and other fine-grained valuable minerals

Adaptable Materials

Tailing fine materials, rare metal ore samples, non-metallic ore samples





Standard 6-S Gravity Beneficiation Shaking Table – Ore Dressing Equipment

Leave a reply

Product Overview

The Standard 6-S Gravity Beneficiation Shaking Table is a standardized industrial-grade core equipment for gravity beneficiation, adopting a yellow heavy-duty frame and an eccentric wheel connecting rod drive mechanism, matched with an ultra-large area FRP wear-resistant table surface. It is mainly for the large-scale enrichment and separation of fine-grained minerals such as gold, tungsten, tin, lead and zinc ores, and can also be used for the recovery of precious metals in large tailings reservoirs. The equipment realizes precise separation of minerals with different densities through the synergistic effect of table reciprocating vibration and inclined water flow, with high separation accuracy and stable recovery rate. It is suitable for large-scale ore dressing plants, precious metal purification bases and other scenarios, and has the advantages of strong continuous operation capacity, environmental protection without chemicals, and perfect safety protection.

Core Parameters & Specifications

Model Table Size (L × W) mm Treatment Capacity (kg/h) Stroke (mm) Impulse Frequency (r/min) Motor Power (kW) Equipment Weight (kg)
6-S Small 3000×1200 150-300 12-22 280-330 1.1 550-600
6-S Medium 4500×1800 ≈210-420 14-26 260-310 2.2 1200-1500
6-S Large 7500×2200 ≈830-1450 18-26 260-300 4.0 3800-4500
6-S Double Wave 8000×2400 ≈1250-2080 18-26 260-300 5.5 4500-5200
6-S Double Link 8500×2600 ≈1670-2500 18-26 260-300 7.5 5800-6500

Product Advantages & Technical Highlights

  • High-efficiency Enrichment: Cooperation of gravity and water flow, the mineral enrichment ratio is more than 1:150
  • Precise Adjustment: Handwheel type stroke and impulse frequency adjustment, suitable for various types of minerals
  • Wear-resistant & Durable: Thickened FRP table surface, corrosion resistance with service life over 5 years
  • Safe & Reliable: Equipped with protective railings and grounding devices, in line with industrial safety standards

Applicable Scenarios & Materials

  • Large-scale ore dressing plants: Large-scale enrichment of gold, tungsten, tin, lead and zinc ores
  • Tailing recovery bases: Recovery of precious metals and useful minerals in large tailings reservoirs
  • Precious metal purification plants: Large-scale fine purification of placer gold and lode gold
  • Non-metallic ore separation: Gravity separation of fluorite, barite and other minerals
  • Core materials: Gold, tungsten, tin, lead-zinc ore and other fine-grained valuable minerals
  • Adaptable materials: Fine materials from large tailings, rare metal ores, high specific gravity non-metallic ores

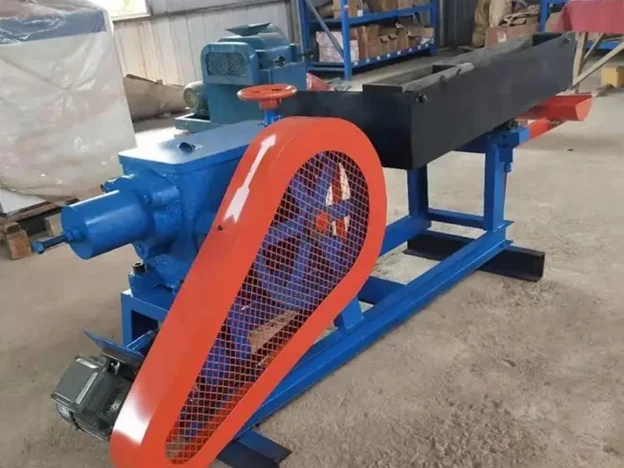

Safety Protection Gravity Separation Table

Leave a reply

Product Overview

The safety protection gravity separation table is equipped with an orange safety protective cover, adopting a blue lightweight frame with a sealed drive box and a grooved FRP wear-resistant table surface. It focuses on the small-scale enrichment and separation of fine-grained minerals such as sand gold, tungsten and tin, and can also be used for mineral processing tests and trace precious metal recovery. The equipment achieves precise separation through the cooperation of table surface reciprocating vibration and inclined water flow. The safety protective cover effectively isolates transmission risks, and has the advantages of high separation accuracy, environmental protection without chemicals and safe operation.

Core Parameters & Specifications

Model Table Size (L × W) mm Processing Capacity (t/d) Stroke (mm) Impulse (r/min) Motor Power (kW) Equipment Weight (t)
6-S Safety Standard Shaking Table 6100×1830 8-15 16-24 280-320 3.0 2.8-3.2
6-S Safety Wide Table Shaking Table 6100×2000 12-22 16-24 280-320 3.7 3.5-4.0
6-S Safety Test Shaking Table 5860×1830 5-10 16-24 280-320 2.2 2.2-2.6

Product Advantages & Technical Highlights

  • Safety Protection: Orange protective cover isolates transmission parts, complying with safety operation standards.
  • Flexible Adjustment: Handwheel type stroke and impulse adjustment, suitable for multi-category mineral requirements.
  • Precise Separation: Synergy of gravity and water flow, stable and reliable mineral enrichment ratio.
  • Controllable Cost: Cost-effective configuration with small investment and quick return.

Applicable Scenarios & Materials

Scenarios

  • Mines: Multi-stage classification of ore raw materials, separation of oversize lumps.
  • Sand and stone factories: Fine classification of sand and stone raw materials, standardized processing of aggregates.
  • Tailings recovery: Recovery of trace precious metals from small tailings.

Core Materials

  • Sand gold, fine-grained tungsten-tin ore, lead-zinc ore samples

Adaptable Materials

  • Tailing fine materials, rare metal ore samples, non-metallic ore samples

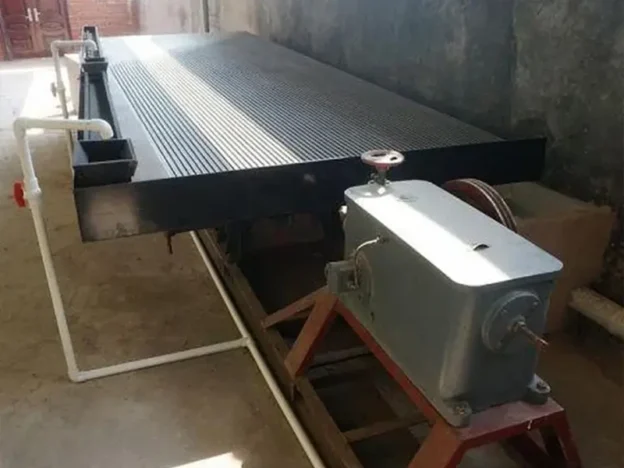

6-S Gravity Beneficiation Shaking Table (Fiberglass Deck Type)

Leave a reply

Product Overview

6-S Gravity Beneficiation Shaking Table (Fiberglass Deck Type) is a classic gravity ore dressing equipment, driven by an eccentric wheel connecting rod mechanism and equipped with a grooved fiberglass wear-resistant deck. It focuses on the enrichment and separation of fine-grained minerals such as gold, tungsten and tin, and can also be used for the recovery of precious metals in tailings. The equipment achieves accurate separation of minerals with different densities through the synergy of the reciprocating vibration of the deck and the inclined water flow. It features high separation accuracy, stable recovery rate, and is suitable for various ore dressing plants and precious metal purification scenarios, with the advantages of environmental protection without chemicals and convenient operation.

Core Specifications

Model Deck Size (L × W) mm Processing Capacity (t/d) Stroke (mm) Oscillation Frequency (r/min) Motor Power (kW)
6-S Small Shaking Table 4500×1800 1-3 16-24 280-320 1.5
6-S Large Shaking Table 5860×1830 3-8 16-24 280-320 2.2
6-S Extended Shaking Table 6100×2000 5-12 16-24 280-320 3.0

Product Advantages & Technical Highlights

  • Accurate Separation: Synergy of gravity and water flow, high mineral enrichment ratio
  • Stable Structure: Eccentric wheel drive, smooth operation without noise
  • Wear-Resistant Deck: Fiberglass material, corrosion resistance and long service life
  • Flexible Operation: Adjustable stroke and oscillation frequency, suitable for various materials
  • Environmental & Efficient: Physical separation without chemicals, recovery rate over 85%

Applicable Scenarios & Materials

  • Ore Dressing Plants: Enrichment of fine-grained minerals such as gold, tungsten, tin, lead-zinc ore
  • Tailing Recovery Plants: Recovery of precious metals and useful minerals from tailings
  • Precious Metal Purification: Fine purification of placer gold, lode gold
  • Core Materials: Gold, tungsten, tin, lead-zinc ore and other fine-grained minerals
  • Adaptable Materials: Tailing fine materials, rare metal ore, non-metallic ore

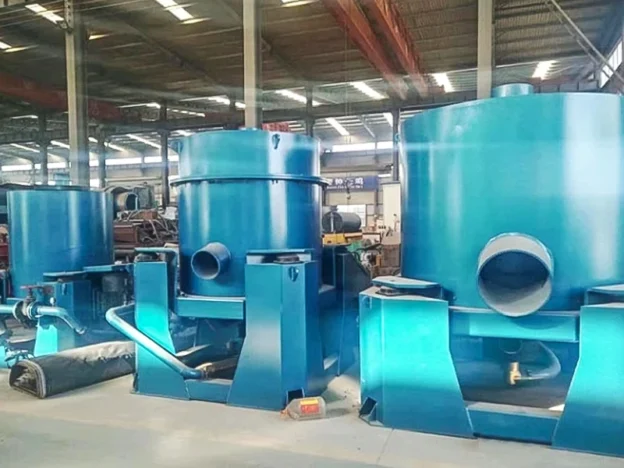

Water Jacket Centrifugal Concentrator (Nelson Centrifuge) – High Efficiency Gravity Separation Equipment

Leave a reply

Product Overview

The water jacket centrifugal concentrator (Nelson centrifuge) is a high-efficiency core gravity separation equipment specially designed for the enrichment of gold and heavy minerals. It adopts the high-speed centrifugal sedimentation principle combined with a wear-resistant water jacket structure, focusing on the high-efficiency recovery of placer gold, vein gold and fine gold, and can also be used for the separation of tungsten, tin and other heavy non-ferrous metal minerals. The equipment strengthens the sedimentation of heavy minerals through centrifugal force and forms a stable separation environment with the water jacket to achieve accurate enrichment of gold particles. It is suitable for large-scale dressing plants, placer gold mining and tailings recovery scenarios, with the advantages of high recovery rate, large processing capacity and convenient maintenance.

Core Parameter Specification

Equipment Model STL20 STL30 STL40 STL60 STL80
Processing Capacity (T/h) 0.2-1 2-8 5-20 10-40 35-70
Feed Particle Size (mm) 0-3 0-4 0-4 0-5 0-6
Feed Concentration (%) 0-50% 0-50% 0-50% 0-50% 0-50%
Backwash Water Volume (T/h) 1.5-2 4-6 6-8 10-15 17-25
Concentrate Output (Kg / time) 2-3 10-20 10-25 30-40 60-70
Motor Power (kw) 1.5 2.2 3 5.5 11
Cone Speed (r/min) 800 600 500 460 400
Pressure Water (Mpa) 0.04 0.12 0.15 0.25 0.35
Overall Dimension (mm) 790*785*790 1180*1140*1250 1400*1200*1300 1970*1670*1750 2300*1800*2200
Equipment Weight (kg) 145 400 800 1300 1500

Product Advantages & Technical Highlights

  • High-efficiency Enrichment: Centrifugal force is 50-150 times that of gravity, the recovery rate of fine gold is over 90%, and the enrichment ratio can reach more than 1:500.
  • Wear-resistant Water Jacket: Double-layer water jacket structure + wear-resistant liner, the service life of the equipment is more than 8 years, greatly reducing maintenance costs.
  • Large Processing Capacity: Single unit processing capacity is 5-50 tons per hour, supporting 24-hour continuous operation and adapting to large-scale production.
  • Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on duty required, and easy to operate.
  • Strong Adaptability: It can process placer gold, vein gold, tailings and other materials, and has excellent separation effect on gold particles with a particle size of 0.01-2mm.

Applicable Scenarios & Materials

  • Placer Gold Mining Projects: Gold enrichment and recovery in river beaches and placer gold mines, replacing traditional chutes with efficiency increased by more than 30%.
  • Vein Gold Dressing Plants: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment connecting the subsequent cyanidation process.
  • Gold Tailings Recovery Projects: Recovery of residual gold in gold mine tailings, improving resource utilization and reducing environmental pressure.
  • Heavy Mineral Separation: Separation and purification of heavy non-ferrous metal minerals such as tungsten, tin, lead and zinc.

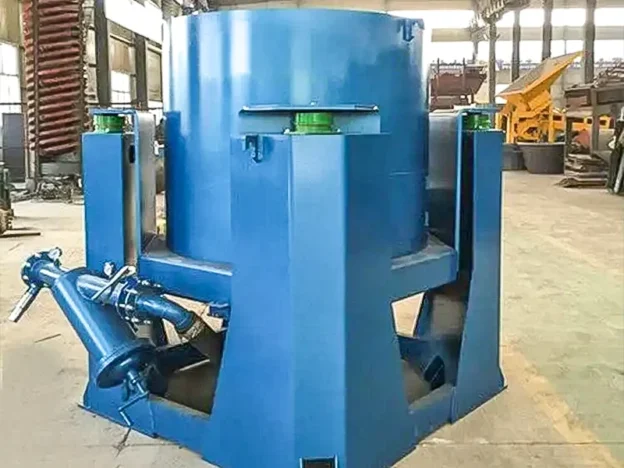

Water Jacket Centrifuge – High Efficiency Gravity Separation Equipment for Gold Recovery

Leave a reply

Product Overview

The water jacket centrifuge is a high-efficiency gravity separation core equipment specially designed for the enrichment of gold and heavy minerals. It adopts the high-speed centrifugal sedimentation principle combined with a double-layer water jacket wear-resistant structure, focusing on the high-efficiency recovery of placer gold, vein gold and fine gold, and can also be used for the separation of tungsten, tin and other heavy non-ferrous metal minerals. The equipment strengthens the sedimentation of heavy minerals through centrifugal force and forms a stable separation environment combined with the water jacket to achieve accurate enrichment of gold particles. It is suitable for large-scale dressing plants, placer gold mining and tailings recovery scenarios, and has the advantages of high recovery rate, large processing capacity and convenient maintenance.

Core Parameter Specification

Equipment Model STL20 STL30 STL40 STL60 STL80
Processing Capacity (T/h) 0.2-1 2-8 5-20 10-40 35-70
Feed Particle Size (mm) 0-3 0-4 0-4 0-5 0-6
Feed Concentration (%) 0-50% 0-50% 0-50% 0-50% 0-50%
Backwash Water Volume (T/h) 1.5-2 4-6 6-8 10-15 17-25
Concentrate Output (Kg / time) 2-3 10-20 10-25 30-40 60-70
Motor Power (kw) 1.5 2.2 3 5.5 11
Cone Speed (r/min) 800 600 500 460 400
Pressure Water (Mpa) 0.04 0.12 0.15 0.25 0.35
Overall Dimension (mm) 790*785*790 1180*1140*1250 1400*1200*1300 1970*1670*1750 2300*1800*2200
Equipment Weight (kg) 145 400 800 1300 1500

Product Advantages & Technical Highlights

  • High-efficiency Enrichment: Centrifugal force is 50-150 times that of gravity, the recovery rate of fine gold is over 90%, and the enrichment ratio can reach more than 1:500.
  • Wear-resistant Water Jacket: Double-layer water jacket structure + wear-resistant liner, the service life of the equipment is more than 8 years, which greatly reduces the maintenance cost.
  • Large Processing Capacity: The single unit processing capacity is 5-50 tons per hour, supporting 24-hour continuous operation and adapting to large-scale production.
  • Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on duty required, and easy to operate.
  • Strong Adaptability: It can process various materials such as placer gold, vein gold and tailings, and has excellent separation effect on gold particles with a particle size of 0.01-2mm.

Applicable Scenarios & Materials

  • Placer Gold Mining Projects: Gold enrichment and recovery in river beaches and placer gold mines, replacing traditional chutes with efficiency increased by more than 30%.
  • Vein Gold Dressing Plants: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment connecting the subsequent cyanidation process.
  • Tailings Recovery Projects: Recovery of residual gold in gold mine tailings, improving resource utilization and reducing environmental pressure.
  • Heavy Mineral Separation: Separation and purification of heavy non-ferrous metal minerals such as tungsten, tin, lead and zinc.

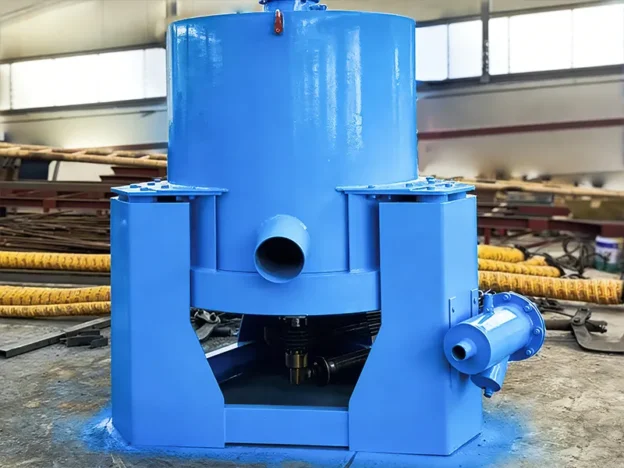

Knelson Centrifugal Concentrator – High Efficiency Gold Ore Dressing Equipment

Leave a reply

Product Overview

The Knelson Centrifugal Concentrator is an enhanced gravity beneficiation equipment based on the centrifugal principle. It generates a strong centrifugal force field (up to more than 60 times the gravitational acceleration) through high-speed rotation, making heavy mineral particles (such as gold, platinum, etc.) in the pulp overcome the resistance of water to settle and enrich, while light minerals are carried away by water flow, thus achieving efficient separation.

The equipment mainly has two types: intermittent ore discharge and fully automatic continuous ore discharge. Its core advantages are high enrichment ratio and high recovery rate (the sand gold recovery rate can reach more than 99%), especially good at recovering fine-grained precious metals, without the need for chemical reagents, and environmentally friendly. It is widely used in the beneficiation of gold, silver, tin, tungsten and other heavy minerals, and is one of the key equipment for modern concentrators to improve resource recovery rate.

Core Parameter Specification

Item STL19 STL30 STL60 STL80 STL100 Model 120
Production Capacity (T/H) 0.25-0.30 4-9 15-20 50-70 80-100 100-160
Feed Particle Size (mm) 0-3 0-4 0-6 0-6 0-6 0-6
Feed Concentration (%) 0-50% 0-50% 0-50% 0-50% 0-50% 0-50%
Backwash Water Volume (T/H) 1.5-2 4-6 10-15 17-25 40-60 70-80
Concentrate Output (kg / time) 2-3 10-20 30-40 60-70 70-80 110-120
Motor Power (kw – grade) 1.5-6 1.5-6 5.5-6 11-6 18.5-6 22-6
Cone Speed (r/min) 400 400 490 490 420 360
Pressure Water (MPa) 0.04 0.11 0.12 0.25 0.35 0.4
Overall Dimension (m) 1.1/1.1/1 1.2/1.1/1 1.7/1.7/1 1.8/1.8/2 2.5/2.0/2 2.7×2×2.6
Equipment Weight (kg) 145 100 400 700 1500 2000

Product Advantages & Technical Highlights

  • High-efficiency Enrichment: Centrifugal force is 50-150 times the gravity, the recovery rate of fine gold is over 90%, and the enrichment ratio can reach more than 1:500.
  • Wear-resistant Water Jacket: Double-layer water jacket structure + wear-resistant liner, the service life of the equipment is over 8 years, greatly reducing maintenance costs.
  • Large Processing Capacity: The hourly processing capacity of a single unit is 5-50 tons, supporting 24-hour continuous operation and adapting to large-scale production.
  • Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on duty required, easy to operate.
  • Strong Adaptability: Can handle various materials such as sand gold, vein gold and tailings, and has excellent separation effect on gold particles with a particle size of 0.01-2mm.

Applicable Scenarios & Materials

  • Sand Gold Mining Project: Gold enrichment and recovery in river beaches and sand gold mines, replacing traditional chutes with efficiency increased by more than 30%.
  • Vein Gold Concentrator: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment connecting the subsequent cyanidation process.
  • Tailings Recovery Project: Recovery of residual gold in gold mine tailings, improving resource utilization rate and reducing environmental pressure.
  • Heavy Mineral Separation: Separation and purification of heavy non-ferrous metal minerals such as tungsten, tin, lead and zinc.

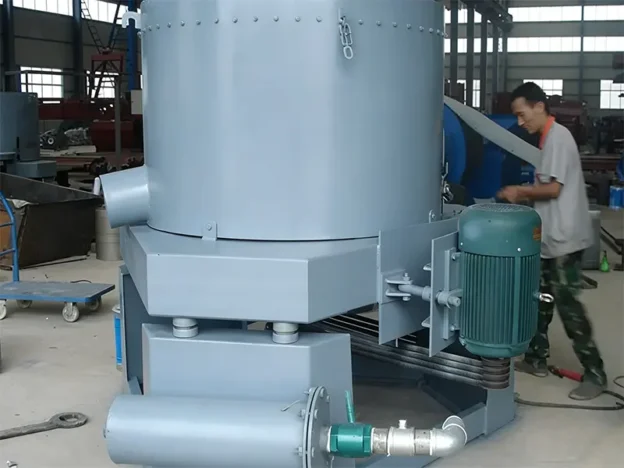

STLB60 Water Jacket Centrifuge

Leave a reply

Product Overview

The STLB60 Water Jacket Centrifuge is a high-efficiency gravity mineral processing core equipment specially designed for the enrichment of gold and heavy minerals. It adopts the principle of high-speed centrifugal sedimentation combined with a double-layer water jacket wear-resistant structure, focusing on the high-efficiency recovery of alluvial gold, lode gold and fine gold particles, and is also applicable to the separation of tungsten, tin and other non-ferrous heavy minerals. The equipment strengthens the sedimentation of heavy minerals through centrifugal force and combines with the stable separation environment formed by the water jacket to achieve precise enrichment of gold particles. It is suitable for large-scale mineral processing plants, alluvial gold mining and tailings recovery scenarios, with the advantages of high recovery rate, large processing capacity and convenient maintenance.

Core Parameters & Specifications

Item STL20 STL30 STL60 STL80 STL100
Processing Capacity (T/h) 0.25-0.30 2-3 10-15 35-40 80-120
Feed Particle Size (mm) 0-3 0-4 0-6 0-6 0-6
Feed Concentration (%) 0-50% 0-50% 0-50% 0-50% 0-50%
Backwash Water Volume (T/h) 1.5-2 4-6 10-15 17-25 40-60
Concentrate Output (Kg/time) 2-3 10-20 30-40 60-70 70-80
Motor Power (kw) 0.75 1.5 4 15 18.5
Cone Speed (r/min) 800 600 460 400 360
Pressure Water (MPa) 0.04 0.1 0.16 0.18 0.2
Overall Dimension (mm) 790×785×790 1180×1140×1750 1970×1670×1750 2300×1800×2200 2500×2000×2400
Equipment Weight (kg) 300 500 1300 1800 2800

Product Advantages & Technical Highlights

  • High-efficiency Enrichment: The centrifugal force is 50-150 times the gravity, the recovery rate of fine gold particles is over 90%, and the enrichment ratio can reach more than 1:500.
  • Wear-resistant Water Jacket: Double-layer water jacket structure with wear-resistant liner, the service life of the equipment is more than 8 years, which greatly reduces the maintenance cost.
  • Large Processing Capacity: The hourly processing capacity of a single unit is 5-50 tons, supporting 24-hour continuous operation and adapting to large-scale production.
  • Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on-duty is required, and the operation is convenient.
  • Strong Adaptability: It can process various materials such as alluvial gold, lode gold and tailings, with excellent separation effect on gold particles with a particle size of 0.01-2mm.

Applicable Scenarios & Materials

  • Alluvial Gold Mining Projects: Gold enrichment and recovery in river beaches and alluvial gold mines, replacing traditional chutes, with efficiency increased by more than 30%.
  • Lode Gold Concentrators: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment to connect the subsequent cyanidation process.
  • Tailings Recovery Projects: Recovery of residual gold in gold mine tailings, improving resource utilization rate and reducing environmental protection pressure.
  • Heavy Mineral Separation: Separation and purification of tungsten, tin, lead-zinc and other non-ferrous heavy minerals.
