Water Jacket Centrifugal Concentrator (Nelson Centrifuge) – High Efficiency Gravity Separation Equipment

This water jacket centrifugal concentrator (Nelson centrifuge) is a high-efficiency core gravity separation equipment for gold and heavy mineral enrichment, adopting high-speed centrifugal sedimentation principle and wear-resistant water jacket structure.
Its centrifugal force is 50-150 times the gravity, with fine gold recovery rate over 90% and enrichment ratio up to 1:500+.
It is suitable for placer gold mining, vein gold dressing, gold tailings recovery and heavy non-ferrous metal mineral separation, supporting 24-hour continuous operation.

Inquiry Now

Product Overview

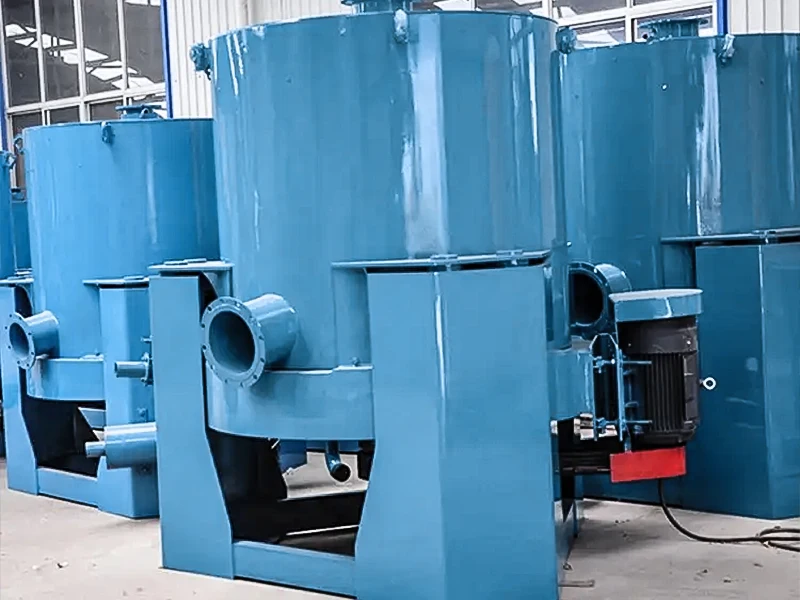

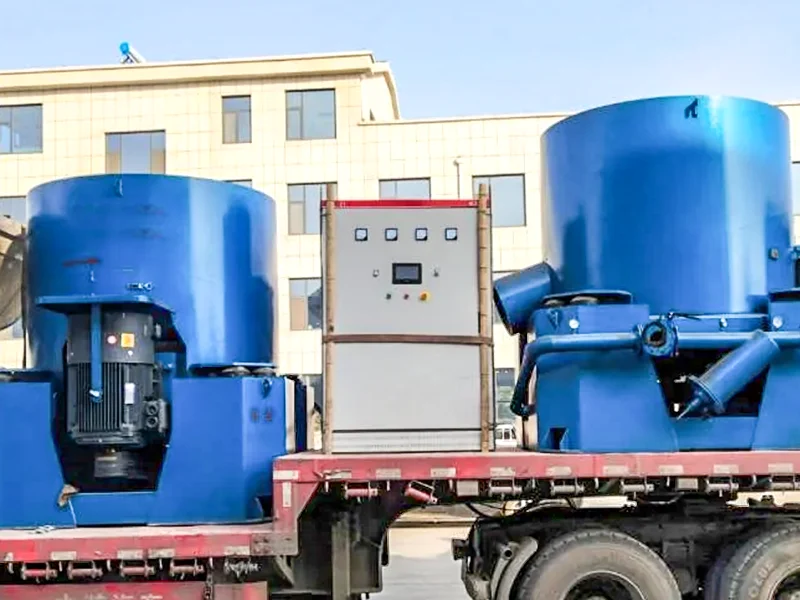

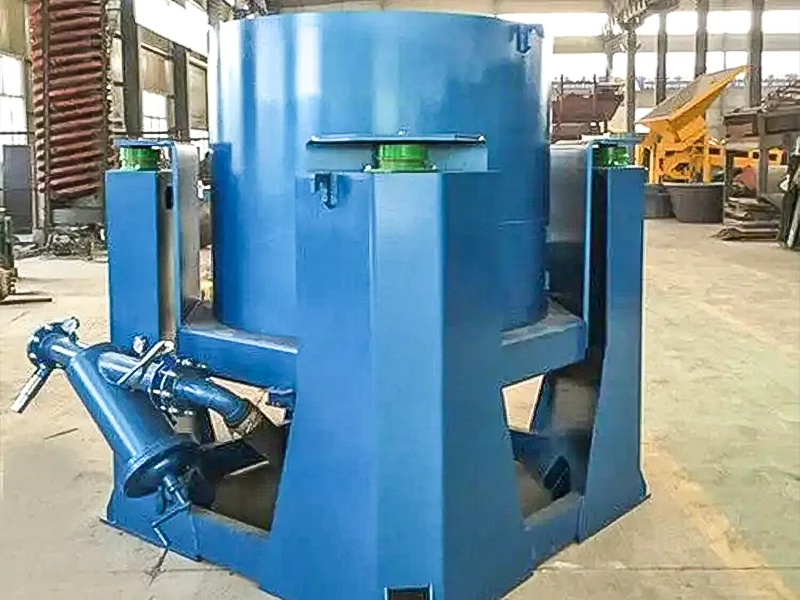

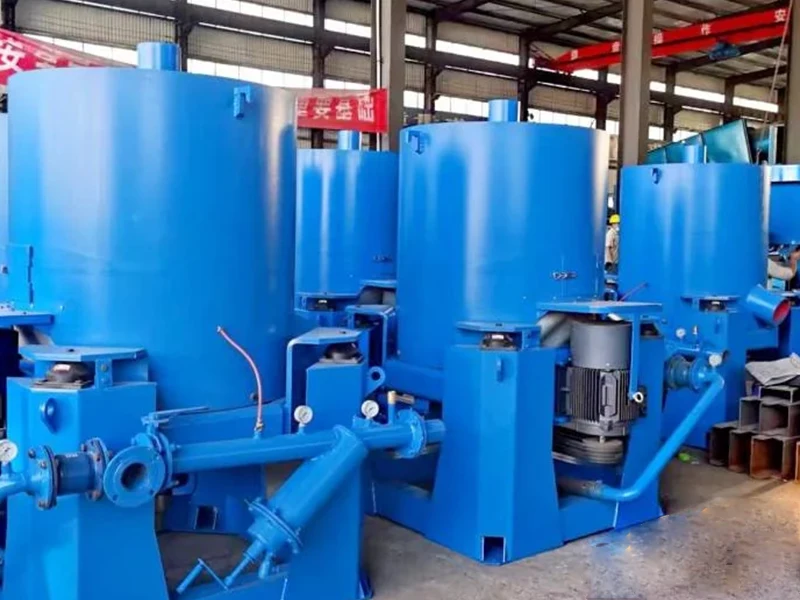

The water jacket centrifugal concentrator (Nelson centrifuge) is a high-efficiency core gravity separation equipment specially designed for the enrichment of gold and heavy minerals. It adopts the high-speed centrifugal sedimentation principle combined with a wear-resistant water jacket structure, focusing on the high-efficiency recovery of placer gold, vein gold and fine gold, and can also be used for the separation of tungsten, tin and other heavy non-ferrous metal minerals. The equipment strengthens the sedimentation of heavy minerals through centrifugal force and forms a stable separation environment with the water jacket to achieve accurate enrichment of gold particles. It is suitable for large-scale dressing plants, placer gold mining and tailings recovery scenarios, with the advantages of high recovery rate, large processing capacity and convenient maintenance.

Core Parameter Specification

Equipment Model	STL20	STL30	STL40	STL60	STL80
Processing Capacity (T/h)	0.2-1	2-8	5-20	10-40	35-70
Feed Particle Size (mm)	0-3	0-4	0-4	0-5	0-6
Feed Concentration (%)	0-50%	0-50%	0-50%	0-50%	0-50%
Backwash Water Volume (T/h)	1.5-2	4-6	6-8	10-15	17-25
Concentrate Output (Kg / time)	2-3	10-20	10-25	30-40	60-70
Motor Power (kw)	1.5	2.2	3	5.5	11
Cone Speed (r/min)	800	600	500	460	400
Pressure Water (Mpa)	0.04	0.12	0.15	0.25	0.35
Overall Dimension (mm)	790785790	118011401250	140012001300	197016701750	230018002200
Equipment Weight (kg)	145	400	800	1300	1500

Product Advantages & Technical Highlights

High-efficiency Enrichment: Centrifugal force is 50-150 times that of gravity, the recovery rate of fine gold is over 90%, and the enrichment ratio can reach more than 1:500.
Wear-resistant Water Jacket: Double-layer water jacket structure + wear-resistant liner, the service life of the equipment is more than 8 years, greatly reducing maintenance costs.
Large Processing Capacity: Single unit processing capacity is 5-50 tons per hour, supporting 24-hour continuous operation and adapting to large-scale production.
Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on duty required, and easy to operate.
Strong Adaptability: It can process placer gold, vein gold, tailings and other materials, and has excellent separation effect on gold particles with a particle size of 0.01-2mm.

Applicable Scenarios & Materials

Placer Gold Mining Projects: Gold enrichment and recovery in river beaches and placer gold mines, replacing traditional chutes with efficiency increased by more than 30%.
Vein Gold Dressing Plants: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment connecting the subsequent cyanidation process.
Gold Tailings Recovery Projects: Recovery of residual gold in gold mine tailings, improving resource utilization and reducing environmental pressure.
Heavy Mineral Separation: Separation and purification of heavy non-ferrous metal minerals such as tungsten, tin, lead and zinc.
