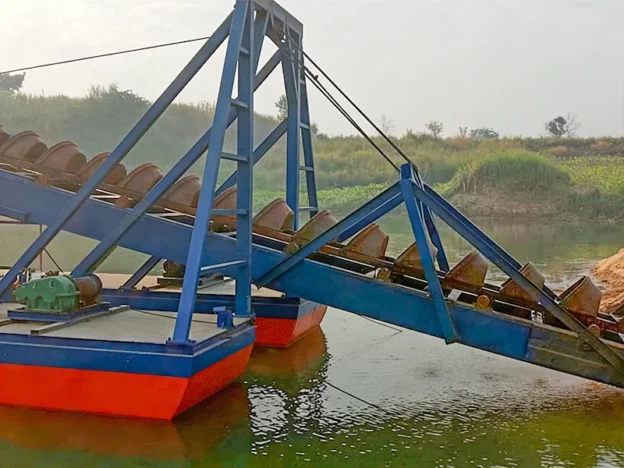

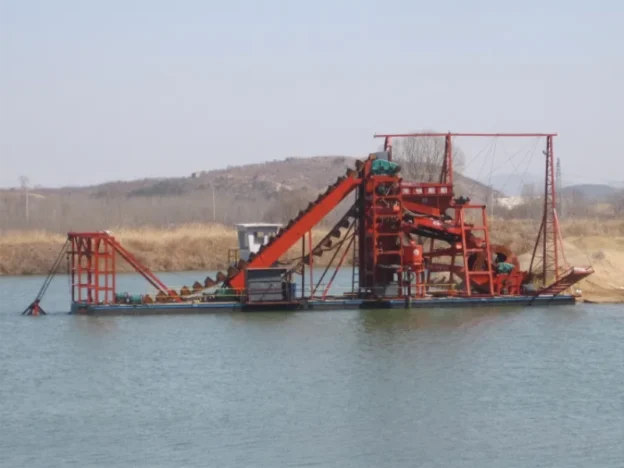

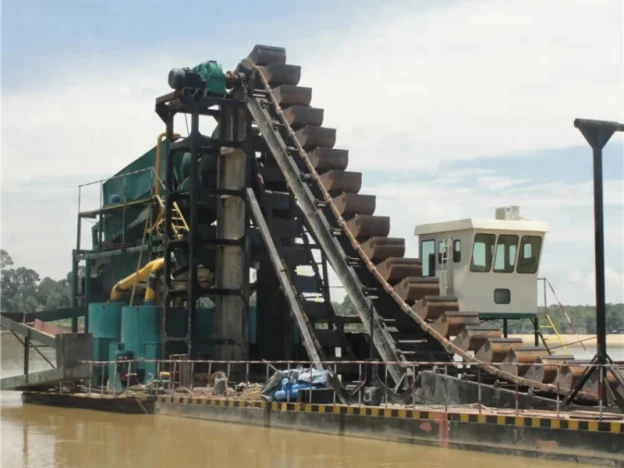

Bucket Chain Gold Dredger – All Series for Sand Gold Mining

Leave a reply

Product Overview

The bucket gold dredger is a high-efficiency water sand gold mining equipment with the bucket as the core digging part, integrating multi-stage screening, gravity separation and purification. It consists of double-hull floating box, bucket conveying system, gold mining separation system, drive system, control system and other components. It excavates underwater sand gold-bearing materials through buckets, and finally obtains high-purity sand gold through conveying, screening, separation and purification. The equipment covers small, medium and large specifications, can adapt to mobile and fixed operation modes, and has the advantages of sturdy structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, safety and environmental protection, and easy operation. It mainly features high gold recovery rate, high operation efficiency and wide water area adaptability. It can operate alone or with a complete sand gold mining production line, and is widely used in various sand gold mining points such as rivers and shallow seas. It can process a variety of sand gold-bearing materials with low energy consumption, easy maintenance and prominent economic benefits. It is the core preferred equipment for large-scale and efficient sand gold mining, realizing integrated operation of digging, gold panning and purification without additional beneficiation facilities.

Core Parameter Specification

Model Hull Size (L×W×H) m Bucket Spec (L×W) mm Digging Depth Range m Processing Capacity (m³/h) Motor Power (kW) Bucket Speed (r/min) Total Weight (t) Gold Recovery Rate (%) Applicable Water Depth m
LD-50 (Small) 12×3.5×2.8 500×300 1.0-3.0 30-50 30-45 12-18 12.5 ≥88 1.5-4.0
LD-100 (Medium) 18×4.8×3.2 800×400 1.5-5.0 80-120 75-90 10-15 38.6 ≥90 2.0-6.0
LD-200 (Large) 28×6.5×4.0 1200×500 2.0-8.0 180-250 160-200 8-12 95.8 ≥92 3.0-10.0
LDY-300 (Mobile Large) 35×7.2×4.5 1500×600 3.0-10.0 280-350 250-300 6-10 186.3 ≥93 4.0-12.0

Product Advantages & Technical Highlights

  • Water operation: Gold mining directly in rivers, lakes, shoals and reservoirs, no site restrictions
  • Integrated digging and mining: One-stop completion of digging, screening, ore washing, gold separation and tailing discharge
  • Stable output: Continuous bucket digging, high operation efficiency, suitable for large-scale sand mining and gold panning
  • Strong adaptability: Normal operation in deep/shallow water areas, mud/sand bottom
  • Reliable operation: Sturdy hull structure, low failure rate, long-term continuous production
  • High gold recovery rate: Equipped with vibrating sluice/centrifuge, high recovery rate of fine gold and flake gold

Applicable Scenarios & Materials

Applicable Scenarios

  • River gold mining
  • Beach sand gold mining
  • Lake sand gold mining
  • Reservoir gold mining
  • Shore sand gold operation in shallow sea
  • Water beneficiation in large sand gold mining areas

Applicable Materials

  • Placer gold ore, river sand gold, fine gold, flake gold, granular gold
  • River bed gravel, muddy gold-bearing ore sand, weathered sand, sand and pebble mixture

Medium Chain Bucket Dredger – Professional Dredging Equipment

Leave a reply

Product Overview

The medium chain bucket dredger is a core equipment specially designed for medium-scale dredging and sand mining operations. It adopts a core integrated structure of chain bucket digging + chain conveying, and drives the chain bucket to rotate and dig materials through energy-saving diesel power. After being lifted by the chain, the materials are transported to the designated area for unloading, realizing the integrated and coherent operation of dredging, lifting, conveying and unloading. The equipment has the advantages of moderate volume, stable production capacity, convenient transfer, wear resistance, energy saving, intelligent control and strong adaptability. It not only solves the problem of insufficient production capacity of small equipment, but also avoids the limitations of poor flexibility and high cost of large equipment. It can be adapted to various operation scenarios of medium river courses and shallow water areas. It can be used for dredging and desilting, and can also be matched with gold panning equipment for large-scale sand gold mining. It is a cost-effective core preferred equipment for medium river course operations.

Core Parameter Specification

Model Length×Width×Height (mm) Dredging Depth Range (m) Chain Bucket Capacity (m³) Dredging Efficiency (m³/h) Total Power (kW) Chain Bucket Speed (r/min) Movement Mode/Speed
ZLD-200 (Medium) 12000×3200×3000 3-10 0.5-0.8 150-200 80-120 8-12 Simple self-propelled/tug traction, ≤6km/h on water
ZLD-300 (Medium) 15000×3800×3300 4-13 0.8-1.2 250-300 120-180 7-10 Simple self-propelled/tug traction, ≤5km/h on water
ZLD-500 (Medium) 18000×4200×3600 5-15 1.2-1.5 400-500 180-250 6-9 Self-propelled, ≤7km/h on water

Product Advantages & Technical Highlights

  • Powerful Dredging: Continuous chain bucket digging with strong grasping force, suitable for hard sediment
  • Strong Adaptability: Well adapted to working conditions such as hard soil, clay and slightly high stone content
  • Stable Operation: Solid hull structure, no easy deviation in river and reservoir operations
  • Continuous Construction: Circulating feeding of chain buckets, continuous discharging, stable construction efficiency
  • Universal for Deep & Shallow Water: Moderate draft, operable in deep and shallow water areas
  • Easy Maintenance: Mature and reliable structure, convenient replacement of wearing parts with low cost

Applicable Scenarios & Materials

Applicable Scenarios

  • Urban trunk river courses, medium reservoirs, inland waterways, medium lakes
  • Trunk canals of irrigation areas, port shoals, silted waters with a small amount of sand and stone

Applicable Materials

  • Silt, silty clay, old silt soil, hard clay, fine sand, medium sand, a small amount of loose gravel





Screening Type Chain Bucket Dredger – Professional Dredging Equipment

Leave a reply

Product Overview

The Screening Type Chain Bucket Dredger is a multi-functional equipment specially designed for integrated dredging and screening operations. It adopts a core structure of chain bucket digging and built-in screening net linkage, driven by energy-saving diesel power to rotate the chain bucket to dig materials, complete graded screening synchronously, and then transport them to the designated area for unloading through the chain. It realizes the integrated and coherent operation of dredging, screening, conveying and unloading. The equipment has the advantages of firm structure, wear resistance, energy saving, intelligent control, strong adaptability and accurate screening. No additional screening equipment is needed, which greatly saves costs. It can be adapted to many scenarios such as placer gold mining, river sand mining and dredging. It can not only improve operation efficiency, but also increase the recovery rate of placer gold and sandstone. It is a cost-effective core first choice for small and medium-sized dredging and screening operations.

Core Parameter Specification

Model Length×Width×Height (mm) Dredging Depth Range (m) Chain Bucket Capacity (m³) Dredging Efficiency (m³/h) Total Power (kW) Screening Aperture (mm) Movement Mode/Speed
SF-50 (Small Screening) 8000×2800×2700 0.8-5 0.1-0.2 30-50 15-30 2-10 (Customizable) Towed/Simple Self-propelled, ≤3km/h on water
SF-100 (Medium Screening) 10000×3200×2900 1.0-8 0.2-0.5 80-100 30-60 3-15 (Customizable) Simple Self-propelled/Tug Towed, ≤4km/h on water
SF-200 (Medium Screening) 12000×3800×3100 1.5-10 0.5-0.8 150-200 60-100 5-20 (Customizable) Self-propelled, ≤5km/h on water

Product Advantages & Technical Highlights

  • Integrated Screening: Dredging, screening and conveying are completed synchronously, eliminating the secondary sorting process.
  • Strong Adaptability: Strong chain bucket digging force, capable of dredging sludge, clay, sand, gravel and sundries.
  • Energy Saving & Environmental Protection: Separate waste soil and usable materials while dredging, reducing outward transportation volume.
  • High Operation Efficiency: Continuous cycle operation, higher efficiency than ordinary chain buckets and manual sorting.
  • Wide Working Conditions: Constructible in rivers, ponds, reservoirs and water areas with many impurities.
  • Low Failure Rate: Mature structure, smooth screening, not easy to block, durable in use.

Applicable Scenarios & Materials

Applicable Scenarios

  • Urban inland river dredging, medium river channel dredging, reservoir dredging
  • Fish pond and shrimp pond renovation, sand-rich river channels
  • River channels with construction waste deposition, landscape lake dredging and screening

Applicable Materials

  • Sludge, silty clay, old sludge, fine sand, medium and coarse sand, gravel-containing sediment
  • A small amount of pebbles, branches, sundries, mixture of domestic waste deposition

Amphibious Bucket Chain Dredger

Leave a reply

Product Overview

Amphibious bucket chain dredger is a multi-functional dredging equipment specially designed for amphibious scenes such as shoals and swamps. It adopts crawler + floating body dual amphibious structure as the core, drives the bucket chain to rotate and dig materials through energy-saving diesel power, and transports them to the designated area through the chain for unloading, realizing integrated operation of digging, conveying, unloading and amphibious switching. The equipment has the advantages of moderate volume, amphibious passage, simple operation, wear resistance, energy saving, strong adaptability and low cost. It can reach the shoal and swamp areas that conventional dredgers cannot enter. It can be used for dredging and regulation, and also can be matched with gold panning equipment for placer gold mining without large auxiliary equipment. It is a cost-effective core preferred equipment for amphibious operations in shoals and swamps.

Core Parameter Specification

Model Length × Width × Height (mm) Dredging Depth Range (m) Bucket Capacity (m³) Dredging Efficiency (m³/h) Total Power (kW) Crawler Specification (mm) Travel Speed (Water/Land)
LQ-50 (Small Amphibious) 8000×2800×2600 0.5-5 0.1-0.2 30-50 15-30 500×100×40 Water ≤3km/h, Land ≤2km/h
LQ-100 (Medium Amphibious) 10000×3200×2800 1.0-8 0.2-0.5 80-100 30-60 600×120×45 Water ≤4km/h, Land ≤3km/h
LQ-200 (Medium Amphibious) 12000×3800×3000 1.5-10 0.5-0.8 150-200 60-100 700×150×50 Water ≤5km/h, Land ≤4km/h

Product Advantages & Technical Highlights

  • Amphibious Performance: Crawler adapts to both water and land scenes, free passage in waters, shoals, swamps and dry river courses without terrain restrictions.
  • Anti-sinking & Escape: Heavy-duty anti-skid crawler with large contact area, easy to drive out from deep soft mud and tidal flats, no operation dead angle.
  • Flexible Maneuver: Self entering and exiting water area, no need for tugboat and crane assistance, flexible transition, efficient and time-saving for short-distance movement.
  • Dredging & Screening Compatibility: Combination of bucket chain dredging and basic screening (optional), dredging and separating at the same time, suitable for multi-impurity working conditions and reducing secondary processes.
  • Stable Operation Control: Dual stability of hull + crawler, anti-current and anti-tilt, no deviation in construction on complex terrain (shoals, swamps).
  • Wide Adaptability: Both water dredging and land/semi-land desilting are available, suitable for small and medium-sized dredging projects with strong practicability.

Applicable Scenarios & Materials

Applicable Scenarios

  • Shoal desilting, swamp management, inland river shoal dredging, dry river course desilting
  • Fish pond and shrimp pond reconstruction, wetland ecological desilting
  • Village small river courses, reservoir shallow banks, ditch shallow water areas and semi-dry areas desilting

Applicable Materials

  • River silt, shoal sediment, pond bottom sludge, silty clay, hard silt soil, fine sand, medium sand
  • A small amount of loose gravel, sediment soil containing impurities (branches, small construction waste, etc.)

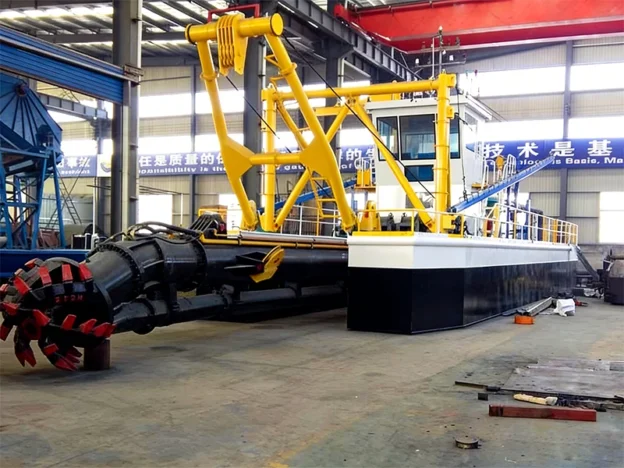

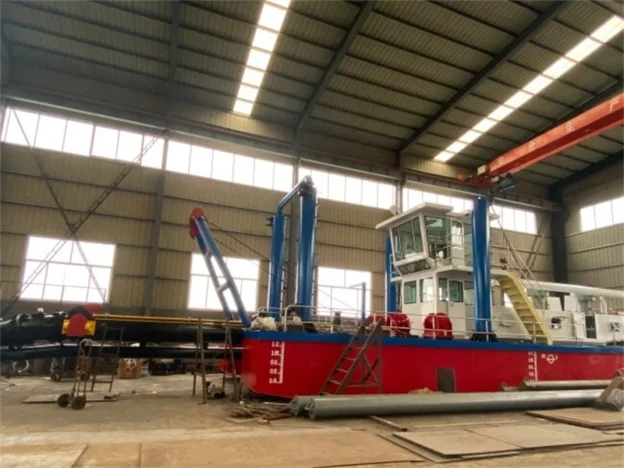

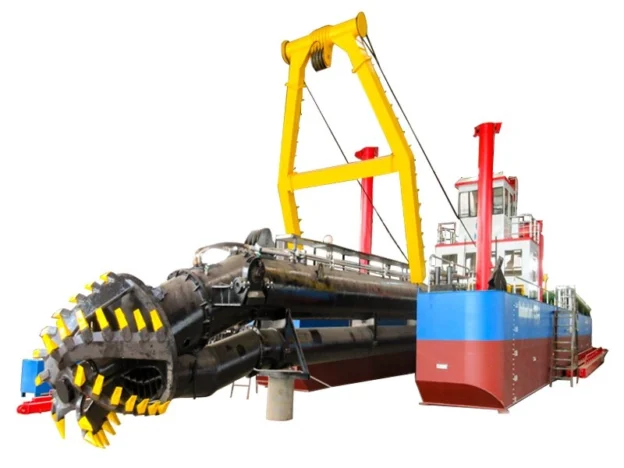

Medium Cutter Suction Dredger – Professional Dredging Equipment

Leave a reply

Product Overview

The medium cutter suction dredger is a multi-functional equipment specially designed for medium-scale dredging and sand mining operations. The core adopts an integrated cutter suction structure, driven by energy-saving diesel power to rotate the cutter for dredging. The high-power mud suction pump sucks the mud and transports it to the designated area through the mud delivery pipe to realize the continuous operation of dredging, mud suction and mud discharge. The equipment has the advantages of moderate volume, stable production capacity, convenient transfer, wear resistance, energy saving, intelligent control and strong adaptability. It not only solves the problem of insufficient production capacity of small equipment, but also avoids the limitations of poor flexibility and high cost of large equipment. It can be adapted to a variety of medium river and shallow water operation scenarios. It can be used for dredging and also matched with gold mining equipment for large-scale placer gold mining. It is a cost-effective core preferred equipment for medium river operations.

Core Parameter Specification

Model Length × Width × Height (mm) Dredging Depth Range (m) Cutter Diameter (mm) Dredging Efficiency (m³/h) Total Power (kW) Dredge Discharge Distance (m) Movement Mode / Speed
ZJ-200 (Medium) 12000×3000×3000 3-10 1000-1200 150-200 80-120 300-800 Simple self-propelled / Towed by small tugboat, ≤8km/h on water
ZJ-300 (Medium) 15000×3500×3200 4-12 1200-1500 250-300 120-180 500-1200 Simple self-propelled / Towed by tugboat, ≤7km/h on water
ZJ-500 (Medium) 18000×4000×3500 5-15 1500-1800 400-500 180-250 800-1500 Self-propelled, ≤9km/h on water

Product Advantages & Technical Highlights

  • High-efficiency Dredging: Moderate displacement, continuous cutter suction and transportation, significantly higher dredging efficiency than small equipment
  • Deep & Shallow Adaptation: Reasonable draft, stable operation in deep water, normal construction in shallow water areas
  • Strong Endurance: Sufficient power configuration, long-time continuous operation to meet the construction period of medium-scale projects
  • High Cost Performance: Moderate construction and operation and maintenance costs, suitable for most river and reservoir dredging projects
  • Stable & Reliable: Reasonable center of gravity of the hull, anti-water flow interference, no easy deviation and shaking during operation
  • Convenient Transfer: Regular shape, detachable for transportation, flexible and fast transfer construction

Applicable Scenarios & Materials

Applicable Scenarios

  • Dredging of urban main rivers
  • Dredging of medium-sized reservoirs
  • Governance of medium-sized lakes
  • Maintenance of inland waterways
  • Ditches in industrial parks
  • Main irrigation canals in irrigation areas
  • Deepening of port shoals

Applicable Materials

  • River silt, silty clay, fine sand, medium and coarse sand
  • Loose sandy soil, thick accumulated mud at pond bottom
  • Deposited sediment on shoals





Small Cutter Suction Dredger – Professional Dredging Equipment for Shallow Water

Leave a reply

Product Overview

The small cutter suction dredger is a lightweight dredging and sand mining equipment specially designed for small shallow water areas and narrow river courses. It adopts a compact cutter-suction integrated structure, driven by a small electric motor or diesel power to rotate the cutter head for dredging. The mud suction pump sucks the mud and transports it to the designated area through the mud delivery pipe to realize continuous dredging, mud suction and mud discharge operations. The equipment has the advantages of small size, convenient transfer, simple operation, wear resistance, energy saving, strong adaptability and low cost. It can reach small shallow water areas and narrow river courses that large dredgers cannot reach. It can be used for small dredging projects and can be matched with small gold mining equipment for placer gold mining without large auxiliary equipment. It is a cost-effective choice for small shallow water area operations.

Core Parameter Specification

Model Length×Width×Height (mm) Dredging Depth Range (m) Cutter Head Diameter (mm) Dredging Efficiency (m³/h) Total Power (kW) Mud Discharge Distance (m) Movement Mode/Speed
XJ-20 (Mini Small) 6000×1800×2000 0.8-3 400-600 10-20 5.5-15 30-150 Manual traction/small outboard motor, ≤4km/h on water
XJ-50 (Small) 8000×2200×2200 1.2-5 600-800 30-50 15-30 50-300 Small traction/simple self-propelled, ≤5km/h on water
XJ-100 (Small) 10000×2500×2400 1.5-8 800-1000 80-100 30-60 100-500 Simple self-propelled/small trailer traction, ≤6km/h on water

Product Advantages & Technical Highlights

  • Compact and flexible: Small hull size, flexible steering, operable in narrow water areas
  • Shallow draft: Can work normally in shallow river courses and shoals
  • High efficiency and energy saving: Reasonable power matching, low energy consumption, stable dredging efficiency
  • Easy operation: Simple to learn and operate, unattended by a single person, low labor cost
  • High cost performance: Affordable price, low maintenance cost, first choice for small dredging projects
  • Convenient transfer: Light weight and small size, easy to transport without large auxiliary equipment

Applicable Scenarios & Materials

Applicable Scenarios

  • Rural small river courses, farmland irrigation ditches, fish/shrimp ponds, small reservoirs, landscape pools
  • Urban inner river tributaries, artificial ponds, dredging of shallow shoal waters

Applicable Materials

  • River silt, fish pond sludge, silty clay, fine sand, loose sand, pond bottom soft mud, shoal sediment





Amphibious Cutter Suction Dredger – Professional Dredging Equipment

Leave a reply

Product Overview

The amphibious cutter suction dredger is an integrated dredging and sand mining equipment specially designed for amphibious operations. Its core adopts crawler + floating body dual structure to realize seamless land-water switching. Driven by electric motor or diesel power, the cutter rotates to dredge mud, and the mud pump sucks the slurry and transports it to the designated area through the mud delivery pipe, realizing continuous dredging, mud suction and mud discharge operations. The equipment has the advantages of amphibious use, flexibility and convenience, wear resistance and energy saving, anti-blocking and anti-silting, strong adaptability, etc. It can reach shallow shoals and swamps that conventional dredgers cannot enter. It can be used for dredging, wetland restoration, and can also be equipped with gold mining equipment for gold sand mining. No large auxiliary equipment is needed, making it the core preferred equipment for amphibious shallow water operation.

Core Parameter Specification

Model Ship Length × Width × Height (mm) Dredging Depth Range (m) Cutter Diameter (mm) Dredging Efficiency (m³/h) Total Power (kW) Mud Discharge Distance (m) Movement Mode / Speed
LQ-50 (Small Amphibious) 10000×2500×2400 1.5-5 600-800 30-80 25-60 50-300 Crawler + Floating body amphibious, Land ≤2km/h, Water ≤5km/h
LQ-200 (Medium Amphibious) 18000×3200×2900 3-10 1000-1400 150-400 70-180 200-800 Crawler + Floating body amphibious, Land ≤3km/h, Water ≤6km/h
LQ-500 (Large Amphibious) 28000×4000×3400 5-12 1600-2000 400-800 180-500 400-1200 Crawler + Floating body amphibious, Land ≤4km/h, Water ≤7km/h

Product Advantages & Technical Highlights

  • Amphibious: Free passage on land, shoals and waters, without terrain and water restrictions
  • Silt escape: Crawler chassis, easy to drive out from deep soft mud and tidal flats
  • Mobile transshipment: Self entry and exit of waters, no tugboat assistance required, fast transshipment
  • All-terrain applicable: Stable construction on tidal flats, swamps, shallow waters and dry river courses
  • High efficiency integration: Continuous dredging, suction and transportation operations, greatly improving dredging efficiency

Applicable Scenarios & Materials

Applicable Scenarios

  • Tidal flat dredging, wetland management, inland river shoals, fish ponds and reservoirs
  • Dry river courses, wetland dredging, urban ditches, dredging and deepening in near-shore shallow waters of lakes

Applicable Materials

  • River silt, tidal flat sediment, fish pond sludge, silty clay, fine sand, soft soil, loose sand

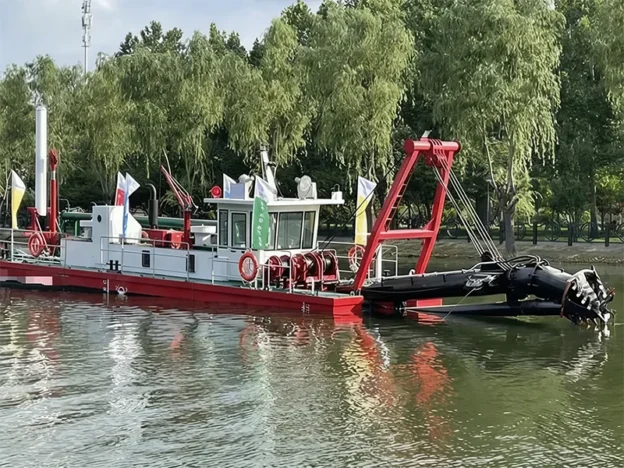

River Type Cutter Suction Dredger – Professional Dredging Equipment

Leave a reply

Product Overview

The river type cutter suction dredger is a professional integrated dredging and sand mining equipment designed for shallow water river operations. It adopts a core narrow-body shallow draft hull + cutter suction integrated structure. The cutter is driven to rotate for dredging by electric motor or diesel power, and the mud pump sucks the slurry and transports it to the designated area through the mud delivery pipe, realizing continuous dredging, suction and discharge operations. The equipment has the advantages of flexibility and convenience, wear resistance and energy saving, anti-blocking and anti-silting, strong adaptability, etc. It can be adapted to various shallow water scenarios of river courses. It can be used for river course desilting, widening and dredging, and can also be matched with gold panning equipment for river placer gold mining. No large auxiliary equipment is needed, and it is the core preferred equipment for shallow water operations of river courses.

Product Core Parameters

Model Ship Length × Width × Height (mm) Dredging Depth Range (m) Cutter Diameter (mm) Dredging Efficiency (m³/h) Total Power (kW) Discharge Distance (m) Movement Mode
HD-50 (Small River Type) 12000×2200×2500 2-6 800-1000 50-100 30-80 100-500 Non-self-propelled, Traction Type
HD-200 (Medium River Type) 20000×3000×3000 4-10 1200-1600 200-500 80-200 300-1000 Semi-self-propelled / Traction Type
HD-600 (Large River Type) 30000×4000×3500 6-15 1800-2200 500-1000 200-600 500-1500 Self-propelled

Product Advantages & Technical Highlights

  • High-efficiency Dredging: Continuous cutter suction and transportation, high desilting efficiency, greatly shortening the construction period.
  • Shallow Draft: The hull has a shallow draft, suitable for operation in narrow, shallow and shallow water areas of river courses.
  • Flexible and Convenient: Compact hull, flexible steering, suitable for construction shuttling in narrow river courses.
  • Continuous Operation: Integrated cutter suction, transportation and mud discharge, no transfer and non-stop operation.
  • Environmental Protection & Low Disturbance: Small operation disturbance, difficult diffusion of sediment, reducing water pollution.

Application Scenarios & Materials

Application Scenarios

  • Inland river course dredging
  • Urban inland river desilting
  • Port shoal deepening
  • Reservoir desilting and capacity expansion
  • Ditch and pond management
  • Coastal beach leveling

Applicable Materials

  • River silt, silty clay, fine sand, medium-coarse sand, loose sand, a small amount of soft pebbles

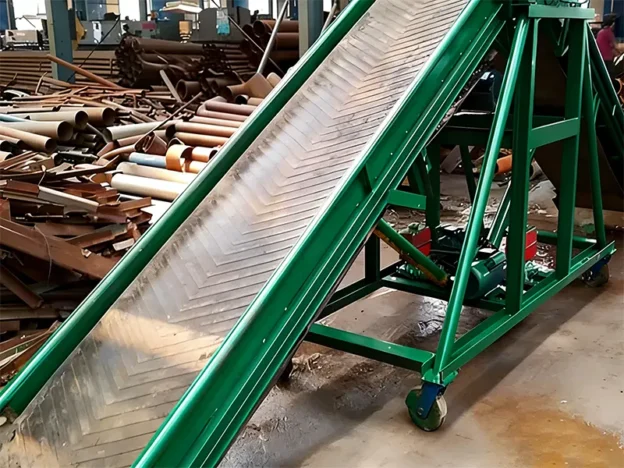

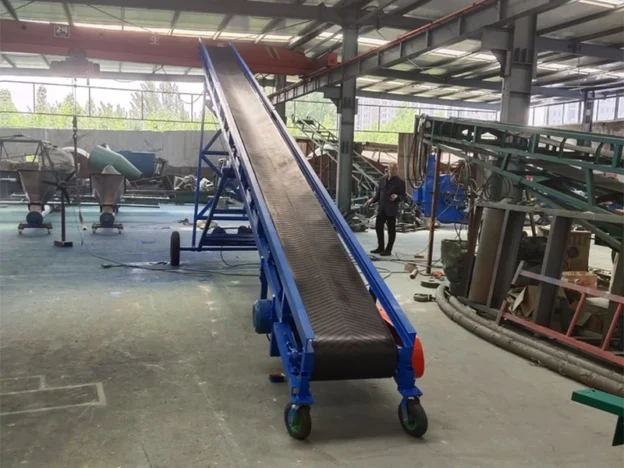

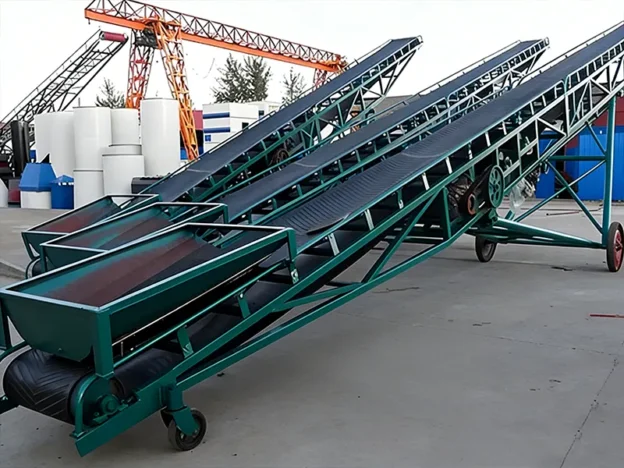

Mobile Bulk & Packed Material Belt Conveyor – YD Series

Leave a reply

Product Overview

The mobile bulk & packed material belt conveyor is a lightweight and sturdy flexible transfer equipment specially designed for alternating transportation of bulk and packed materials, adopting wear-resistant and skid-proof rubber belt + reinforced wheeled movable chassis, focusing on the safe and efficient conveying of bulk materials such as sand and stone, ore and bagged materials such as cement, building aggregate with horizontal and small slope (0-18°) modes without fixed installation. It supports multi-mode movement such as hand push, towed and self-propelled, can be quickly transferred between warehouses and outdoor operation points and seamlessly connected with feeder, vibrating screen, gold panning equipment, crusher and other front and rear end production line equipment. The equipment is suitable for both indoor warehouse and outdoor harsh working conditions, with the advantages of anti-scratch, anti-breakage, impact resistance and wear resistance, and is a practical material turnover tool for multi-scenario operations such as infrastructure construction, sand and stone processing, mine operation and building material storage.

Core Parameters

Model Processing Capacity (t/h) Belt Width (mm) Conveying Length (m) Climbing Angle (°) Motor Power (kW) Mobile Mode Equipment Weight (t) Max Feeding Granularity (mm)
YD-600 30-80 600 5-15 0-15 3-5.5 Towed 1.2-1.8 ≤200
YD-800 80-180 800 8-20 0-18 5.5-11 Towed / Self-propelled 2.5-3.5 ≤300
YD-1000 180-300 1000 10-25 0-20 11-18.5 Self-propelled 4.0-5.5 ≤400
YD-1200 300-500 1200 12-30 0-20 18.5-30 Self-propelled 6.5-8.0 ≤500

Product Advantages

  • Flexible Movement: Wheeled chassis, towed/self-propelled optional, no fixed installation, quick transfer, suitable for multi-operation points.
  • Stable Protection: Skid-proof belt + anti-deviation, anti-spillage and anti-scratch design, no scattering for bulk materials, no damage for packed materials.
  • Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idlers, impact and wear resistant, suitable for long-term use in harsh outdoor working conditions.
  • Convenient & Universal: Adjustable conveying length and speed, adapt to various front and rear end equipment, suitable for both temporary and fixed operations.

Applicable Scenarios & Materials

  • Bulk Material Transfer: Short-distance/temporary transfer of bulk materials such as placer gold raw materials, sand and stone, mine tailings and engineering muck, connect with crushing, sand making and gold panning equipment.
  • Packed Material Transfer: Handling and transfer of bagged materials such as cement, ore, aggregate and building materials, suitable for turnover of packed materials in warehouses, construction sites and mines.
  • Multi-scenario Compatibility: Infrastructure construction sites, small and medium sand and stone plants, mine temporary operation points, building material warehouses, beneficiation plants, etc., more efficient for alternating transfer of bulk and packed materials.



Mobile Bulk Material Belt Conveyor – YD Series

Leave a reply

Product Overview

The mobile bulk material belt conveyor is a flexible multi-functional material transfer equipment for outdoor temporary and multi-site operation scenarios, adopting wear-resistant rubber belt + movable wheeled chassis, focusing on the stable and spill-free conveying of block, granular, sand and gravel bulk materials with horizontal and slight climbing (0-20°) modes without fixed installation. It supports towed/self-propelled dual movement modes, can be quickly transferred to different operation points and seamlessly connected with feeder, gold panning equipment, crusher, silo and other front and rear end equipment. The equipment is suitable for harsh outdoor working conditions, with the advantages of flexible movement, wear resistance and corrosion resistance, simple daily maintenance and wide adaptability, and is an ideal material transfer equipment for small and medium production lines, temporary operation sites such as placer gold panning, sand and stone construction and mine beneficiation.

Core Parameters

Model Processing Capacity (t/h) Belt Width (mm) Conveying Length (m) Climbing Angle (°) Motor Power (kW) Mobile Mode Equipment Weight (t) Max Feeding Granularity (mm)
YD-600 30-80 600 5-15 0-15 3-5.5 Towed 1.2-1.8 ≤200
YD-800 80-180 800 8-20 0-18 5.5-11 Towed / Self-propelled 2.5-3.5 ≤300
YD-1000 180-300 1000 10-25 0-20 11-18.5 Self-propelled 4.0-5.5 ≤400
YD-1200 300-500 1200 12-30 0-20 18.5-30 Self-propelled 6.5-8.0 ≤500

Product Advantages

  • Flexible Movement: Wheeled chassis, towed/self-propelled optional, no fixed installation, quick and effortless transfer.
  • Stable Conveying: Anti-deviation and anti-spillage design, no material scattering or loss, stable operation.
  • Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idlers, wear and corrosion resistant, suitable for harsh outdoor working conditions.
  • Wide Adaptability: Adjustable conveying length and speed, connect with various equipment, suitable for temporary and fixed operations.
  • Convenient & Hassle-free: Quick commissioning and start-up, no professional technicians needed, simple daily maintenance, save labor and time.

Applicable Scenarios & Materials

  • Placer Gold Panning Site: Temporary placer gold mines, multi-mine transfer operations, transfer of placer gold raw materials and sorted materials.
  • Sand & Stone / Infrastructure Construction Site: Transfer of small sand and stone plants, nearby transfer at infrastructure sites, connect with crushing and sand making equipment.
  • Mine Temporary Operation: Temporary material transfer in mine beneficiation, short-distance transfer of tailings, no fixed installation points required.
  • Solid Waste / Building Material Transfer: Temporary transfer of construction waste, material turnover in small building material processing plants, flexibly adapt to temporary sites.



Continuous Material Handling Belt Conveyor

Leave a reply

Product Overview

The belt conveyor is a core material transfer equipment for various production lines, adopting wear-resistant rubber belt + integrated forming frame, focusing on the continuous, stable and efficient conveying of block, granular, sand and stone materials without complicated installation. It can seamlessly connect with feeders, crushers, sand making machines, silos and other front and rear end equipment. The equipment is suitable for various indoor and outdoor working conditions, with the advantages of stable conveying, wear resistance, and flexible convenience. The conveying length and speed can be adjusted on demand, covering the material transfer needs of small, medium and large production lines, and it is an essential basic equipment for the smooth flow of materials in production lines.

Core Parameter Specification

Model Processing Capacity (t/h) Belt Width (mm) Climbing Angle (°) Motor Power (kW) Conveying Length (m) Equipment Weight (t) Max Feeding Particle Size (mm)
KP-800 100-200 800 0-30 7.5-15 10-30 3.5-5.0 ≤300
KP-1000 200-350 1000 0-35 15-30 10-50 6.0-8.5 ≤400
KP-1200 350-500 1200 0-40 30-45 15-60 9.5-12.0 ≤500
KP-1600 500-800 1600 0-45 45-75 15-80 15.0-18.5 ≤600

Product Advantages & Technical Highlights

  • Stable Conveying: Anti-deviation and anti-material falling design, no spilling or loss during material transfer
  • Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idler, wear and corrosion resistant for long-term outdoor use
  • High-efficiency Transfer: Continuous uninterrupted conveying, greatly improving the material turnover efficiency of production lines
  • Flexible Adaptation: Customizable conveying length and width, suitable for various front and rear end production equipment
  • Easy to Install & Maintain: Modular assembly, convenient installation and commissioning, simple daily maintenance, labor saving

Applicable Scenarios & Materials

  • Sand Gold Mining Production Line: Horizontal/short-distance transfer of sand gold ore raw materials and sorted materials, docking with vibrating screens and gold panning equipment
  • Sand and Stone Production Line: Transfer of raw materials such as pebbles and granite and finished sand, connecting with feeders, crushers and silos
  • Mine Beneficiation Production Line: Continuous transfer of ore, tailings and finished ore, docking with beneficiation, crushing and screening equipment
  • Infrastructure/Solid Waste Treatment: Transfer of construction waste, engineering aggregate and crushed stone, suitable for various infrastructure and solid waste recycling production lines



Customizable Inclined Belt Conveyor (0-45°)

Leave a reply

Product Overview

The belt conveyor is the core material transfer equipment for various production lines, adopting wear-resistant rubber belts and one-piece formed frames, focusing on the continuous, stable and efficient conveying of block, granular and sand materials without complicated installation. It can seamlessly connect with feeders, crushers, sand making machines, silos and other front and rear end equipment. The equipment is suitable for various indoor and outdoor working conditions, with the advantages of stable conveying, wear resistance, flexibility and convenience. It can adjust the conveying length and speed on demand, covering the material transfer needs of small, medium and large production lines, and is an essential basic equipment for the smooth flow of materials in the production line.

Core Parameter Specification

Model Processing Capacity (t/h) Belt Width (mm) Climbing Angle (°) Motor Power (kW) Conveying Length (m) Equipment Weight (t) Max Feeding Granularity (mm)
KP-800 100-200 800 0-30 7.5-15 10-30 3.5-5.0 ≤300
KP-1000 200-350 1000 0-35 15-30 10-50 6.0-8.5 ≤400
KP-1200 350-500 1200 0-40 30-45 15-60 9.5-12.0 ≤500
KP-1600 500-800 1600 0-45 45-75 15-80 15.0-18.5 ≤600

Product Advantages & Technical Highlights

  • Stable Conveying: Anti-deviation and anti-spillage design, no material scattering or loss during transfer
  • Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idlers, suitable for long-term outdoor use
  • High-efficiency Transfer: Continuous uninterrupted conveying, greatly improving material turnover efficiency of production lines
  • Flexible Adaptation: Customizable conveying length and width, suitable for various front and rear production equipment
  • Easy to Install & Maintain: Modular assembly, convenient installation and commissioning, simple daily maintenance

Applicable Scenarios & Materials

  • Placer Gold Mining Line: Horizontal/short-distance transfer of placer gold raw materials and sorted materials
  • Sand and Gravel Production Line: Transfer of river pebbles, granite and finished sand, connecting feeders and crushers
  • Mining Beneficiation Line: Continuous transfer of ore, tailings and finished ore, docking with beneficiation equipment
  • Infrastructure/Solid Waste Treatment: Transfer of construction waste, engineering aggregate and crushed stone
