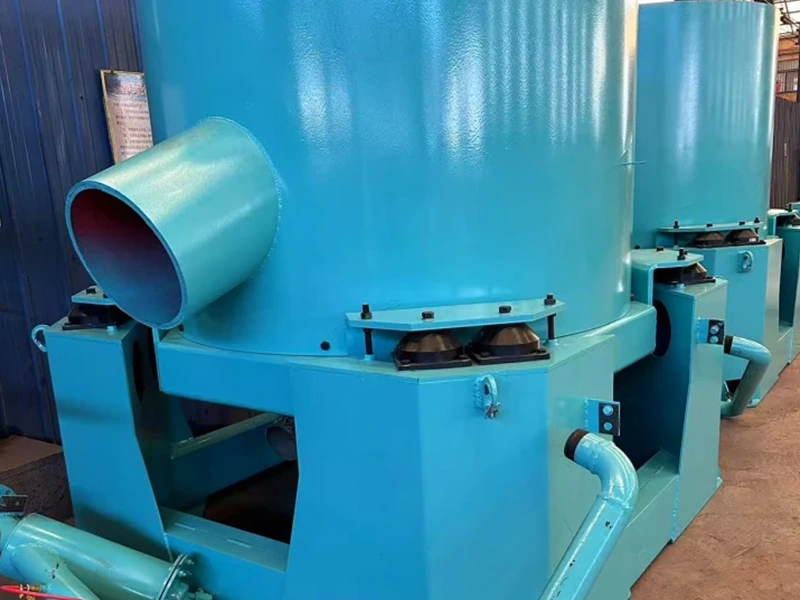

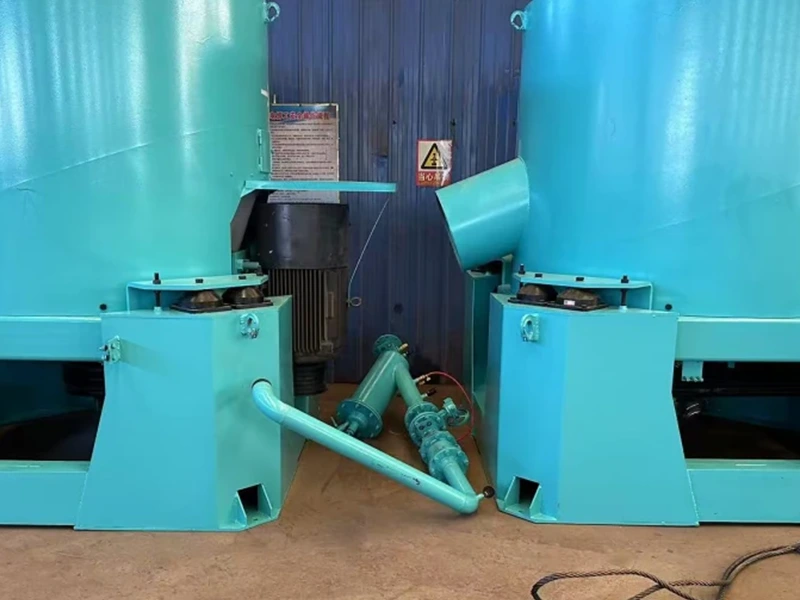

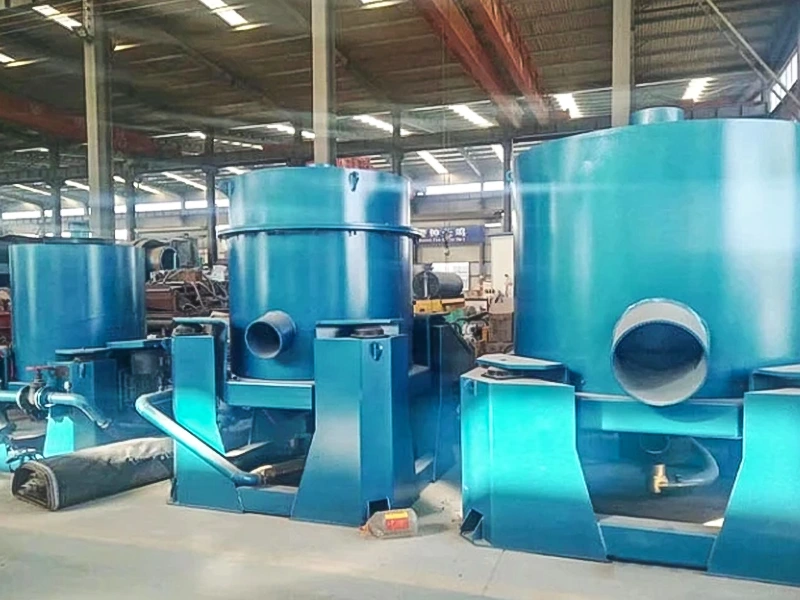

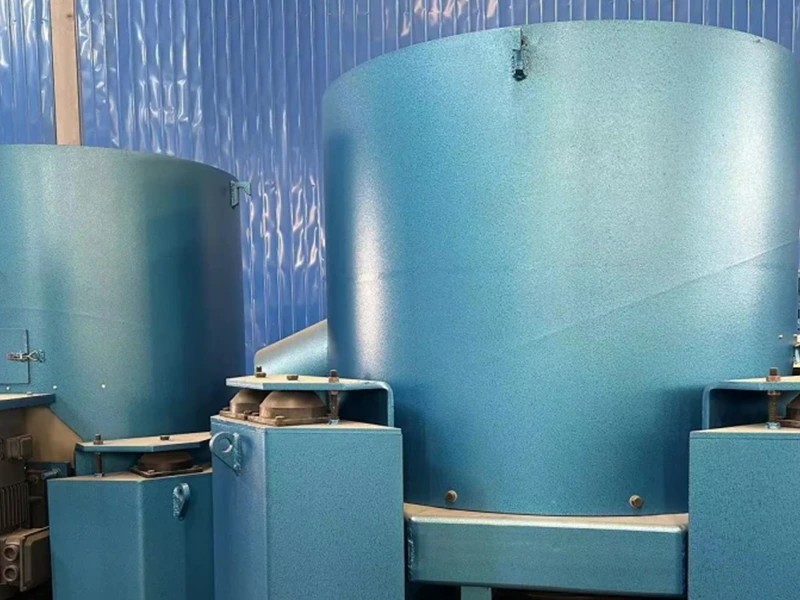

Water Jacket Centrifuge – High Efficiency Gravity Separation Equipment for Gold Recovery
This water jacket centrifuge is a core gravity separation equipment specially designed for gold and heavy mineral enrichment, adopting high-speed centrifugal sedimentation principle with double-layer wear-resistant structure.
It has a centrifugal force 50-150 times that of gravity, with the recovery rate of fine gold over 90% and enrichment ratio up to 1:500 or more.
The equipment supports 24-hour continuous operation, and is suitable for placer gold mining, vein gold dressing, tailings recovery and other scenarios.
The water jacket centrifuge is a high-efficiency gravity separation core equipment specially designed for the enrichment of gold and heavy minerals. It adopts the high-speed centrifugal sedimentation principle combined with a double-layer water jacket wear-resistant structure, focusing on the high-efficiency recovery of placer gold, vein gold and fine gold, and can also be used for the separation of tungsten, tin and other heavy non-ferrous metal minerals. The equipment strengthens the sedimentation of heavy minerals through centrifugal force and forms a stable separation environment combined with the water jacket to achieve accurate enrichment of gold particles. It is suitable for large-scale dressing plants, placer gold mining and tailings recovery scenarios, and has the advantages of high recovery rate, large processing capacity and convenient maintenance.
Core Parameter Specification
Equipment Model
STL20
STL30
STL40
STL60
STL80
Processing Capacity (T/h)
0.2-1
2-8
5-20
10-40
35-70
Feed Particle Size (mm)
0-3
0-4
0-4
0-5
0-6
Feed Concentration (%)
0-50%
0-50%
0-50%
0-50%
0-50%
Backwash Water Volume (T/h)
1.5-2
4-6
6-8
10-15
17-25
Concentrate Output (Kg / time)
2-3
10-20
10-25
30-40
60-70
Motor Power (kw)
1.5
2.2
3
5.5
11
Cone Speed (r/min)
800
600
500
460
400
Pressure Water (Mpa)
0.04
0.12
0.15
0.25
0.35
Overall Dimension (mm)
790*785*790
1180*1140*1250
1400*1200*1300
1970*1670*1750
2300*1800*2200
Equipment Weight (kg)
145
400
800
1300
1500
Product Advantages & Technical Highlights
High-efficiency Enrichment: Centrifugal force is 50-150 times that of gravity, the recovery rate of fine gold is over 90%, and the enrichment ratio can reach more than 1:500.
Wear-resistant Water Jacket: Double-layer water jacket structure + wear-resistant liner, the service life of the equipment is more than 8 years, which greatly reduces the maintenance cost.
Large Processing Capacity: The single unit processing capacity is 5-50 tons per hour, supporting 24-hour continuous operation and adapting to large-scale production.
Intelligent Ore Discharging: Automatically control the concentrate discharge cycle, no manual on duty required, and easy to operate.
Strong Adaptability: It can process various materials such as placer gold, vein gold and tailings, and has excellent separation effect on gold particles with a particle size of 0.01-2mm.
Applicable Scenarios & Materials
Placer Gold Mining Projects: Gold enrichment and recovery in river beaches and placer gold mines, replacing traditional chutes with efficiency increased by more than 30%.
Vein Gold Dressing Plants: High-efficiency enrichment of gold particles after grinding, serving as the core gravity separation equipment connecting the subsequent cyanidation process.
Tailings Recovery Projects: Recovery of residual gold in gold mine tailings, improving resource utilization and reducing environmental pressure.
Heavy Mineral Separation: Separation and purification of heavy non-ferrous metal minerals such as tungsten, tin, lead and zinc.
