Vibrating Sluice Box Special for Placer Gold – Professional Gold Recovery Equipment

Professional designed for placer gold mining, with high recovery rate of fine, flake and granular gold.

Realize continuous operation, no need to stop the machine for tank cleaning, low failure rate and easy maintenance.

Energy-saving and power-saving, suitable for long-term field operation, adaptable to various placer gold mining scenarios.

Inquiry Now

Product Overview

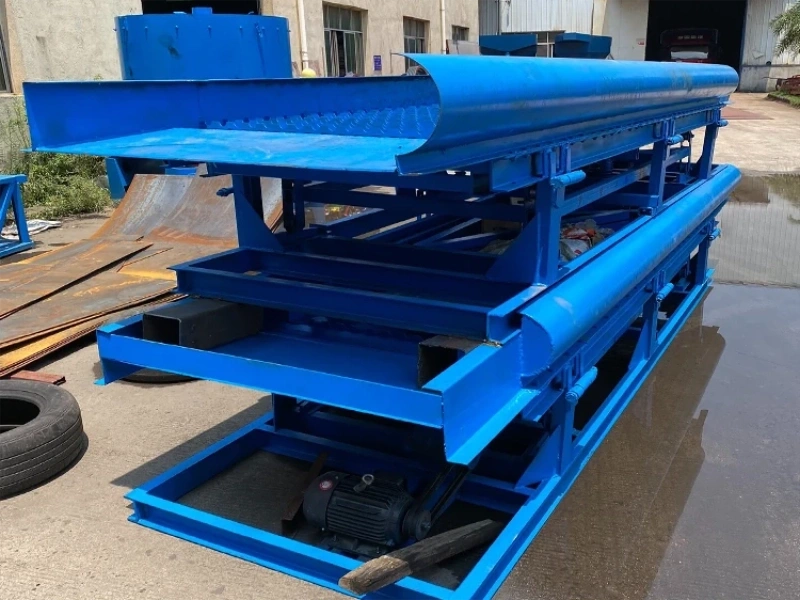

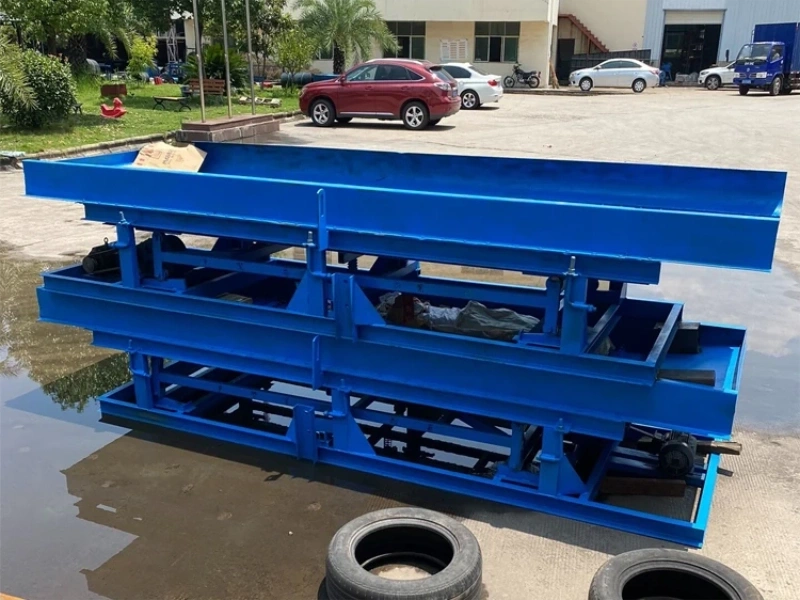

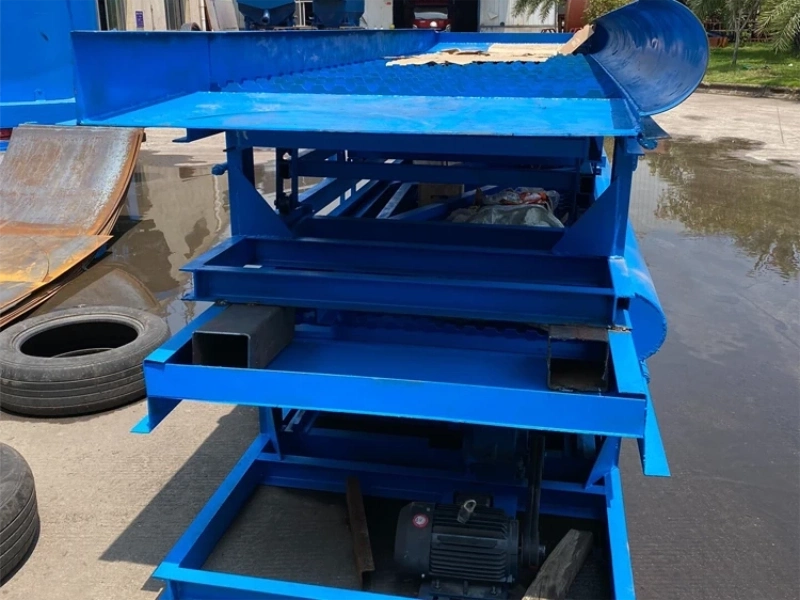

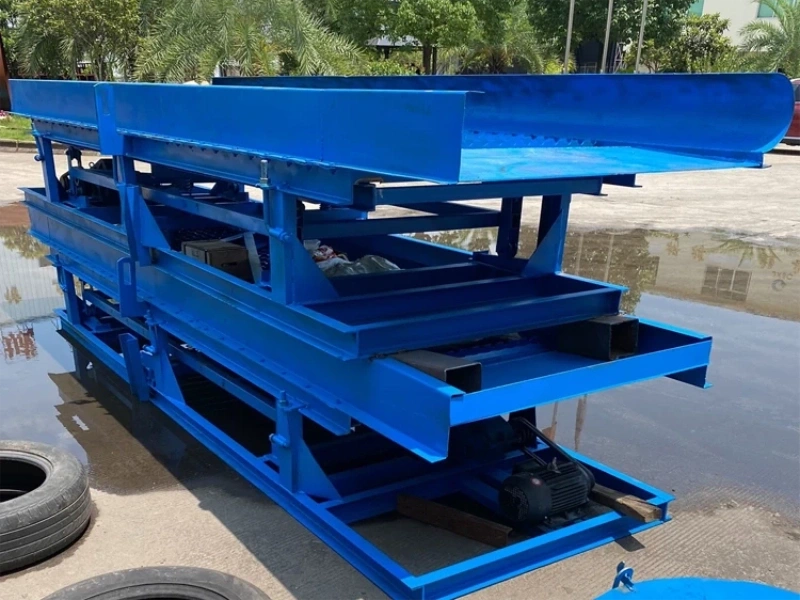

The vibrating sluice box special for placer gold is a professional gravity separation industrial equipment designed for placer gold separation and recovery. Driven by a motor, the transmission structure drives the bed surface to vibrate continuously and stably. Cooperating with the exclusive chute grid design for placer gold, it generates stable eddy current, which can quickly realize the accurate separation and enrichment of placer gold (especially fine gold and capillary gold) from sediment and gangue. Focusing on the core demand of placer gold recovery, the equipment has the advantages of high recovery rate, energy saving and high efficiency, anti-silting and anti-blocking, easy operation, etc. It can be flexibly matched with placer gold production lines and supports customization, no frequent relocation, suitable for various placer gold mining scenarios. It is the core exclusive equipment for long-term continuous operation in the placer gold mining and recovery industry, and effectively solves the industry pain points of low recovery rate of fine gold and gold particle loss.

Product Specification

Model	Bed Size (L×W) mm	Processing Capacity (t/h)	Vibration Frequency (times/min)	Motor Power (kW)	Stroke (mm)	Placer Gold Recovery Rate (%)
SGS-800 (for Placer Gold)	4000×800	1-3	320-400	1.5	8-15 (Adjustable)	≥90
SGS-1200 (for Placer Gold)	5000×1200	3-8	320-400	2.2	8-15 (Adjustable)	≥92
SGS-1500 (for Placer Gold)	6000×1500	8-15	350-420	3.0	10-18 (Adjustable)	≥93
SGS-2000 (for Placer Gold)	7000×2000	15-25	350-420	4.0	10-18 (Adjustable)	≥94

Product Advantages & Technical Highlights

Placer Gold Special: Exclusively designed for placer gold mines, high recovery rate of fine gold, flake gold and granular gold
Stable Vibration: Peristaltic vibration, pulp is loose without caking, good sedimentation effect of heavy minerals
Continuous Operation: Continuous feeding and tailing discharge, no need to stop for tank cleaning
High Enrichment: High gold enrichment multiple, less gold loss in tailings, good mineral processing benefit
Simple Structure: Compact overall structure, low failure rate, easy maintenance
Energy Saving: Small power, low energy consumption, suitable for long-term field operation

Applicable Scenarios & Materials

Applicable Scenarios

Placer gold mining
River sand mining and gold separation
Dry land placer gold mineral processing
Tailing re-separation and recovery
Small gold mine enrichment
Mountain placer gold spot operation

Applicable Materials

Placer gold ore, fine placer gold, flake gold, granular gold
River sand ore, mountain sand ore, weathered sand
Mud-containing gold-bearing ore sand, low-grade gold mine tailings
