Product Overview

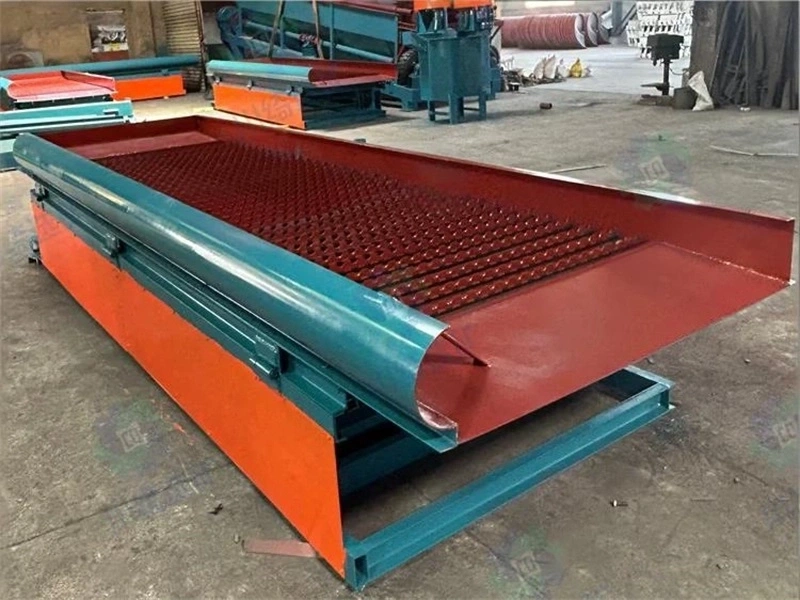

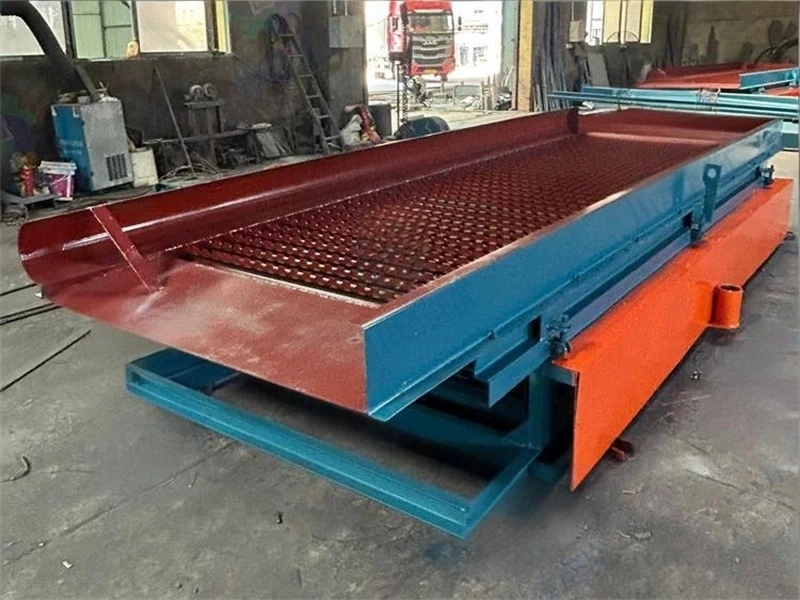

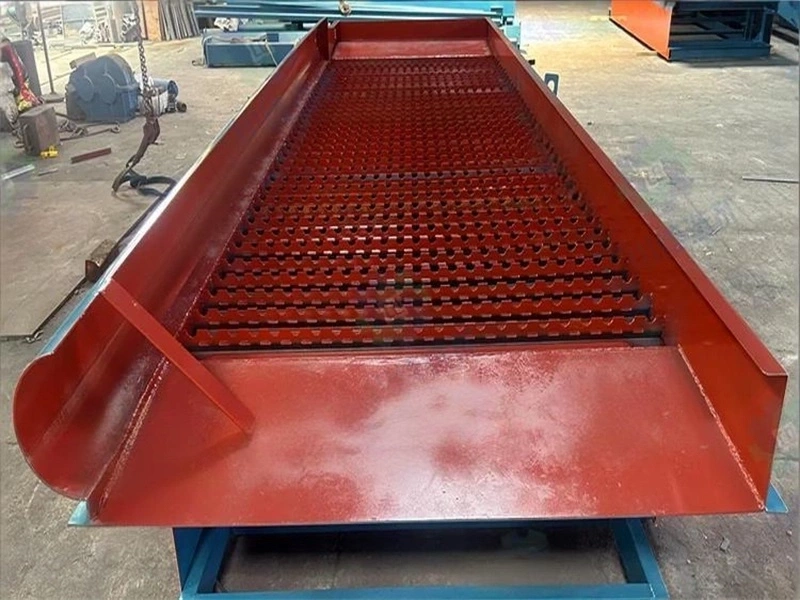

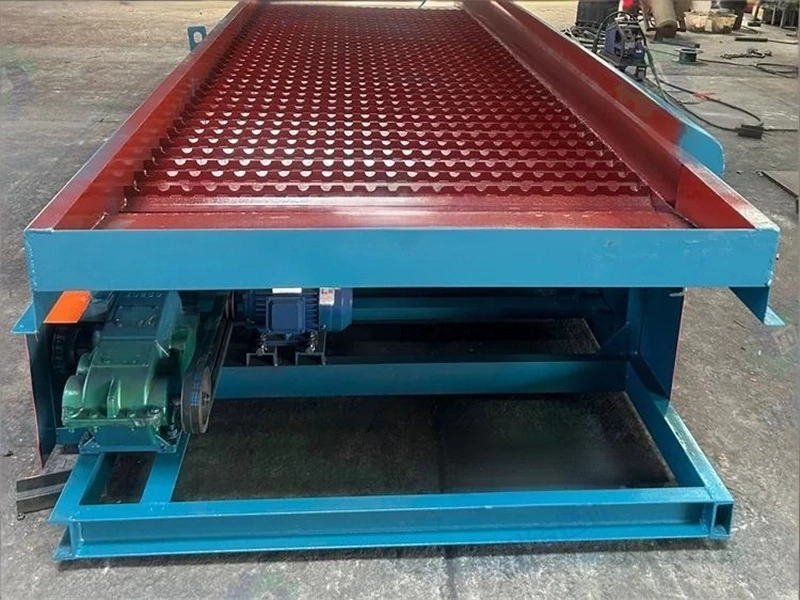

The crank connecting rod drive vibrating sluice is an industrial equipment for heavy mineral separation and enrichment adopting the classic crank connecting rod transmission structure. Driven by a motor, the crank connecting rod operates to drive the bed to vibrate continuously and coherently, and cooperates with the flushing water system to generate strong eddy current, realizing the accurate separation of heavy minerals (such as sand gold, iron ore) and gangue. With mature structure, reliable operation, wear resistance, energy saving, high separation efficiency and comprehensive adaptability, the equipment has the advantages of anti-silting, anti-blocking, intelligent controllability and convenient maintenance. It can be flexibly matched with production lines and supports customization without frequent relocation. It is the preferred equipment for long-term continuous beneficiation operations in sand gold mining, mine gravity separation and other industries, especially suitable for remote mining sites and scenarios with requirements for maintenance convenience.

Core Technical Parameters

Product Advantages & Technical Highlights

• Stable Transmission: Precise crank connecting rod drive, uniform vibration force, no severe vibration and noise during operation
• High-efficiency Separation: Stable vibration frequency, good retention of fine gold and flake gold, far higher gold recovery rate than ordinary sluice
• Durable & Sturdy: High-strength material for crank connecting rod, impact and wear resistance, suitable for harsh beneficiation working conditions
• Easy Control & Adjustment: Flexible adjustment of vibration amplitude and frequency, suitable for ore materials with different particle sizes and mud contents
• Low Failure Rate: Mature and simple structure, few wearing parts, convenient maintenance without professional technicians
• Energy-saving & Economical: Low power consumption, low continuous operation cost, suitable for long-term use in medium and small gold separation projects

Applicable Scenarios & Materials

Applicable Scenarios

• Fixed gold separation production line for placer gold mine
• River sand mining and gold separation
• Arid land sand gold mining
• Low-grade gold ore enrichment
• Gold tailings reprocessing
• Separation of muddy gold-bearing ore materials
• Supporting use in medium and small gold separation plants

Applicable Materials

• Placer gold ore, fine gold, flake gold, granular gold
• River sand ore, mountain sand ore, weathered sand gold-bearing ore
• Muddy gold ore, gold mine tailings, low-grade gold-bearing sand and stone
