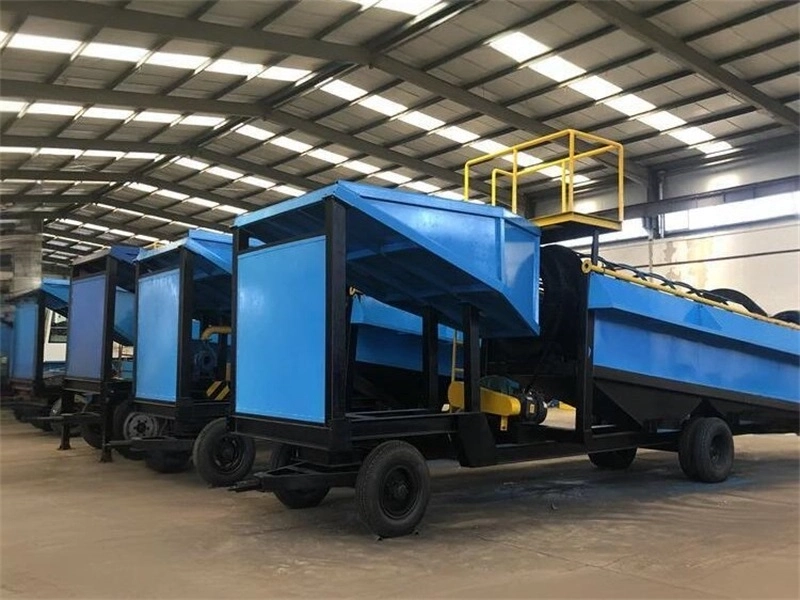

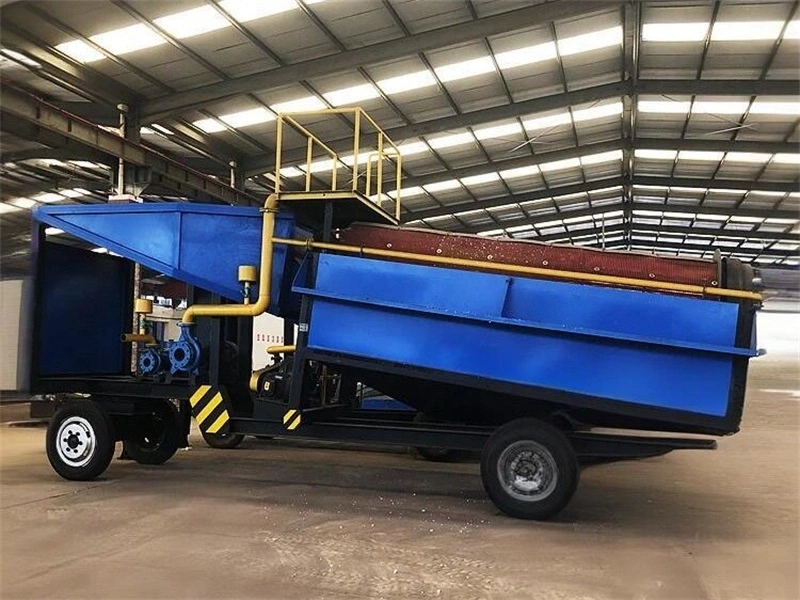

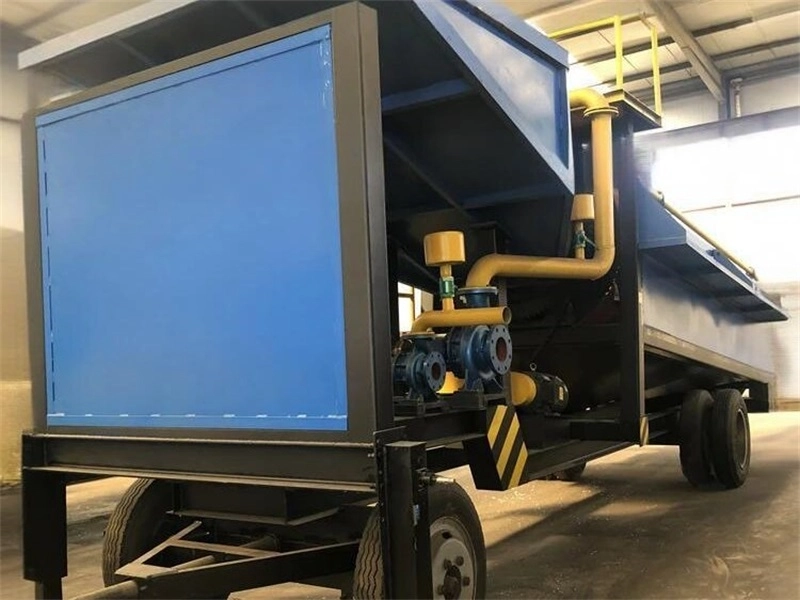

This dry land placer gold special trommel screen gold washing machine is a mobile gold mining industrial equipment adapted to waterless/less water dry land scenarios. It adopts a special anti-clogging trommel design for dry land, integrating screening, crushing, separation and conveying. Without a large amount of water supply, driven by electric motor (diesel power optional), it realizes the separation of dry sand and large impurities in dry land. Equipped with an exclusive separation system, it efficiently recovers coarse, fine and micro-fine placer gold. The equipment has the advantages of anti-silting and anti-clogging, wear resistance and weather resistance, energy saving and high efficiency, intelligence and convenience, strong adaptability, etc. It features off-road and convenient transfer, adapts to various dry land placer sand mine scenarios, no fixed site and large water supply required, and is the core exclusive equipment for dry land placer gold mining and gold panning in remote waterless mine sites.
Core Parameters
Model
Trommel Specification (D×L) mm
Processing Capacity (t/h)
Trommel Speed (r/min)
Total Power (kW)
Gold Recovery Rate (%)
Overall Dimension (L×W×H) mm
Movement Mode
HDT-1200 (Dry Land Special)
Φ1200×3500
50-80
22-30
37 (Diesel power optional)
≥91
10000×2800×3800
Tire traction type
HDT-1500 (Dry Land Special)
Φ1500×4000
80-120
20-28
55 (Diesel power optional)
≥92
11500×3000×4000
Tire traction/Semi-trailer traction
HDT-1800 (Dry Land Special)
Φ1800×5000
120-180
18-25
75 (Diesel power optional)
≥93
13000×3200×4200
Semi-trailer traction/Self-propelled
HDT-2200 (Dry Land Special)
Φ2200×6000
180-250
16-22
90 (Diesel power optional)
≥94
14500×3500×4500
Self-propelled (Hydraulic drive)
Product Advantages & Technical Highlights
Dry Land Special: Exclusively designed for dry land placer gold mines, adapted to waterless working conditions such as Gobi, mountain and hilly areas
Flexible Movement: Wheeled traction chassis for convenient site transfer and instant working point replacement
Large Processing Capacity: High-efficiency screening with large trommel, applicable for dry ore, wet ore and muddy ore
Integrated & High-efficiency: Integrating feeding, screening, gold separation and tailing discharge, a single machine forms a complete production line
No Infrastructure Required: No foundation construction and no large amount of water needed, start working immediately after landing
High Gold Recovery: Adapted to vibrating sluice box, with excellent recovery effect for fine gold and flake gold
Applicable Scenarios & Materials
Applicable Scenarios
Dry land placer gold mining, Gobi gold panning, mountain placer gold beneficiation, hilly dry area gold separation
Tailing dry separation and re-separation, mobile gold panning in waterless areas
Applicable Materials
Dry land placer gold ore, mountain sand ore, weathered sand, Gobi sand ore, muddy gold-bearing dry material
Fine gold, flake gold, granular gold, low-grade dry land gold mine tailings
