GS Series Fixed Drum Screen – Industrial Material Screening Equipment
It is a fixed-installed industrial equipment for loose material classification and screening, adopting the drum rotation screening principle to separate materials by particle size.
With solid structure, stable operation, wear resistance and energy saving, it supports customized transformation to improve screening efficiency and classification accuracy.
It has strong versatility and is widely applicable to screening of sand, mineral sand, construction waste, mine tailings and other materials in multiple industries.

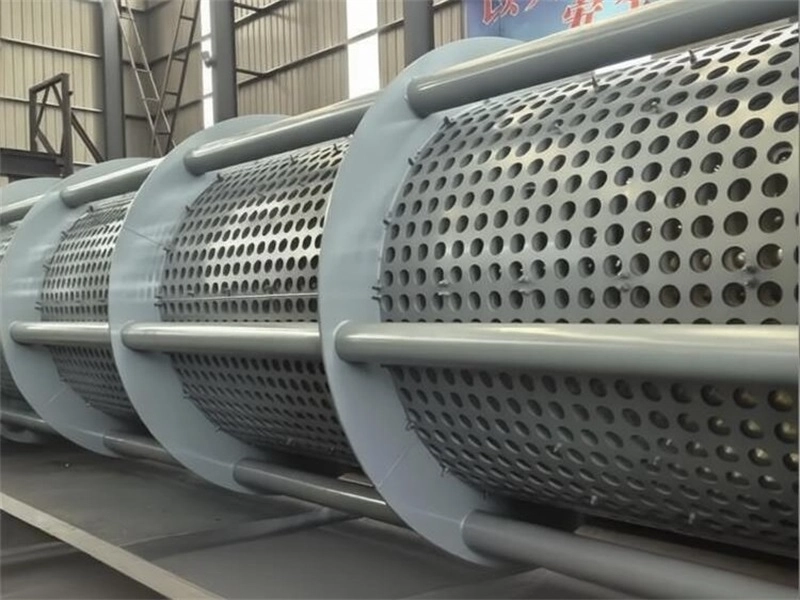

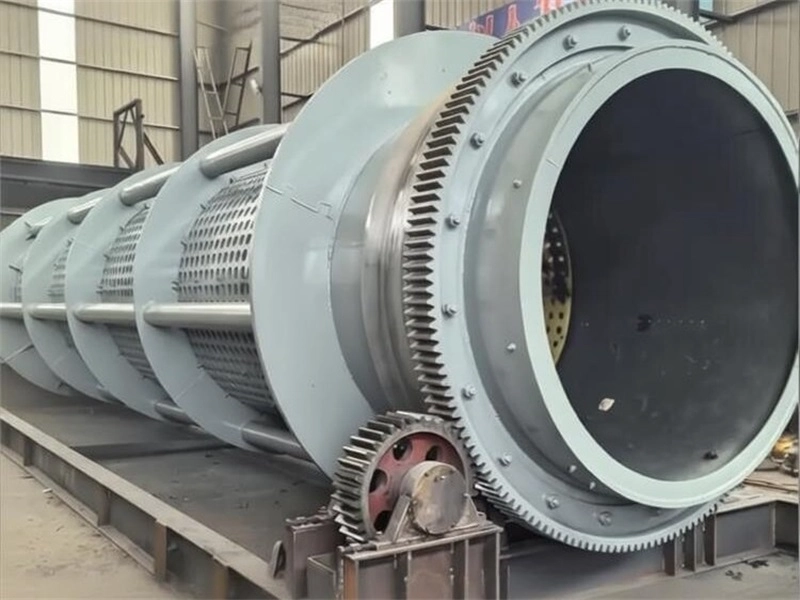

The fixed drum screen is an industrial equipment for the classification and screening of loose materials with fixed installation. It adopts the principle of drum rotation screening and separates materials by particle size through screen meshes of different apertures. The equipment has a solid structure, stable operation, wear resistance and energy saving, and can be adapted to various industry scenarios and support customized transformation. It can effectively improve the efficiency of material screening and classification accuracy, reduce labor and use costs, and is a core auxiliary equipment for material processing in mining, sand and stone, building materials and other industries.
Core Specifications
Model
Drum Specification (Diameter × Length) mm
Processing Capacity (t/h)
Drum Speed (r/min)
Motor Power (kW)
GS-800
Φ800×2000
10-20
15-22
3.0
GS-1200
Φ1200×3000
30-60
18-25
7.5
GS-1500
Φ1500×4000
60-100
20-28
15.0
GS-1800
Φ1800×5000
100-150
22-30
22.0
GS-2400
Φ2400×6000
150-200
25-30
30.0
Product Advantages & Technical Highlights
Sturdy and Durable: Solid fixed frame structure, no shaking or displacement during operation, stable for long-term running
Smooth Screening: Continuous drum rotation, no material blockage, clean separation of coarse and fine materials
Low Failure Rate: Simple and mature structure, few wearing parts, low later maintenance cost
Large Processing Capacity: Continuous feeding and discharging, suitable for long-term mass screening in production lines
Energy Saving & Environmental Protection: Reasonable power matching, low energy consumption, low noise, environmental protection and high efficiency
Strong Versatility: Adaptable to various materials such as sand and stone, mineral sand, soil with stone, gold ore material, etc.
Applicable Scenarios & Materials
Applicable Scenarios

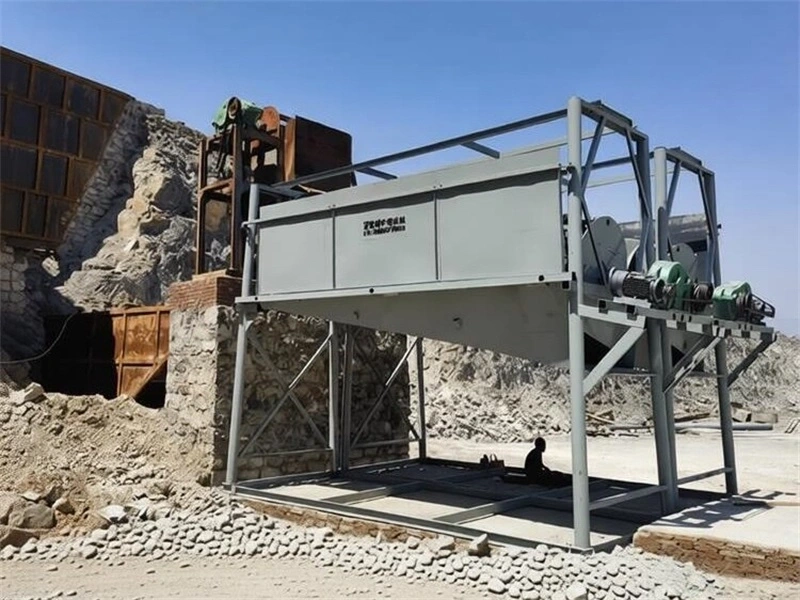

Fixed sand field screening, primary sand gold screening, river sand and stone classification
Mine tailings screening, sand making production line supporting, construction waste treatment
Soil and stone separation in stone plant, farmland soil improvement screening
Applicable Materials
River sand, mountain sand, weathered sand, sand gold ore material, sand and stone mixture
Soil with stone, silty clay, loose gravel, construction waste, mine tailings, muddy sand and stone
