Double Gravity Separation Table

It features a parallel double bed surface design, increasing production capacity by over 80% compared with single bed surface equipment.
It is mainly used for large-scale enrichment and separation of fine-grained valuable minerals such as gold, tungsten, tin, lead and zinc ores.
Realize precise separation of minerals with different densities through the cooperation of bed surface vibration and inclined water flow, with mineral enrichment ratio over 1:150.

Inquiry Now

Product Overview

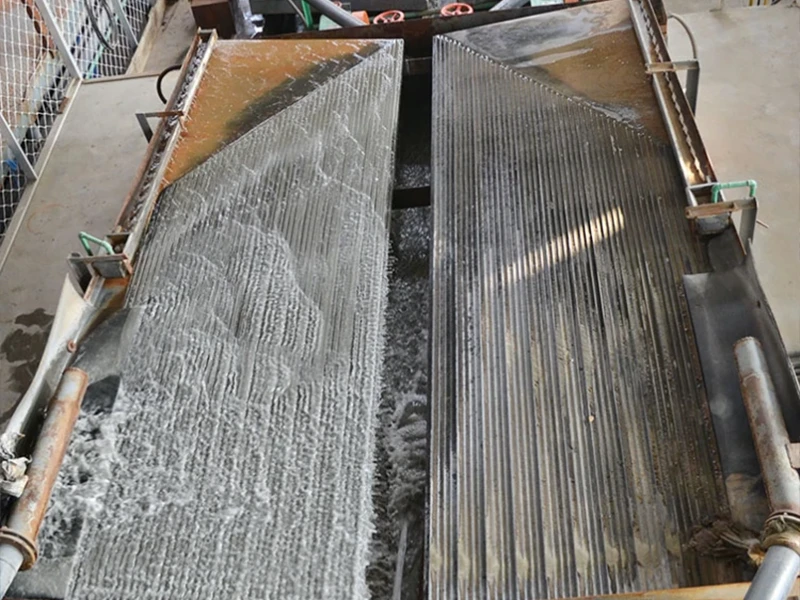

The double gravity separation table adopts a parallel double bed surface structure, matched with a heavy-duty drive mechanism and a wear-resistant bed surface. It is mainly for the large-scale enrichment and separation of fine-grained minerals such as gold, tungsten, tin, lead and zinc ores, and can also be used for the recovery of precious metals in large tailings ponds. The equipment realizes precise separation of minerals with different densities through the cooperation of reciprocating vibration of the bed surface and inclined water flow. The double bed surface design greatly improves the production capacity, suitable for large-scale ore dressing plants, precious metal purification bases and other scenarios, with the advantages of high separation accuracy, environmental protection without chemicals, and strong continuous operation capacity.

Core Specifications

Model	Bed Size (L × W) mm	Processing Capacity (t/d)	Stroke (mm)	Stroke Frequency (r/min)	Motor Power (kW)	Equipment Weight (t)
6-S Double Table	6100×3660	18-30	16-24	280-320	5.5	5.8-6.5
6-S Wide Surface Double Table	6100×4000	22-38	16-24	280-320	7.5	6.8-7.5
6-S Extended Double Table	7500×3660	25-45	18-26	260-300	9.0	8.2-9.0

Product Advantages & Technical Highlights

Double Efficiency: Parallel double bed surface design, production capacity increased by more than 80% compared with single bed surface
Continuous Operation: Heavy-duty drive + shock absorption structure, supporting 24-hour uninterrupted production
Precise Separation: Gravity + water flow coordination, mineral enrichment ratio over 1:150
Wear Resistant & Durable: Thickened wear-resistant bed surface, corrosion resistance service life over 5 years
Safe & Reliable: Equipped with protective railings and grounding device, in line with industrial safety standards

Applicable Scenarios & Materials

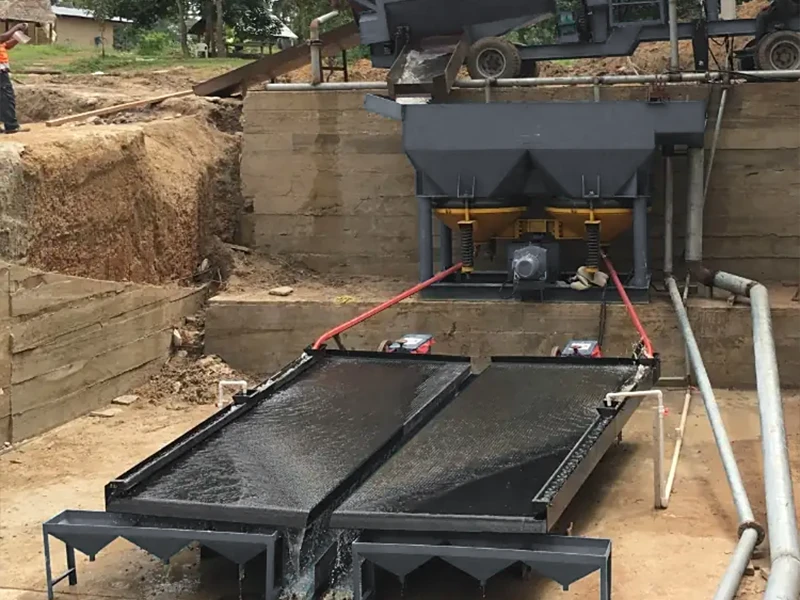

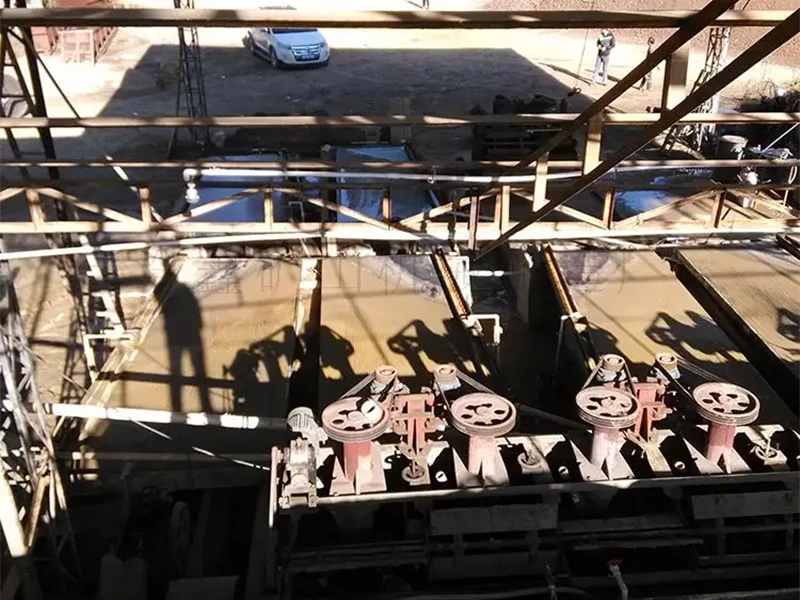

Large-scale ore dressing plants: Large-scale enrichment of gold, tungsten, tin, lead-zinc ores
Tailing recovery bases: Recovery of precious metals and useful minerals in large tailings ponds
Precious metal purification plants: Large-scale fine purification of placer gold and vein gold
Non-metallic ore separation: Gravity separation of fluorite, barite and other minerals
Core materials: Gold, tungsten, tin, lead-zinc ore and other fine-grained valuable minerals
Adapted materials: Fine materials from large tailings, rare metal ores, high specific gravity non-metallic ores
