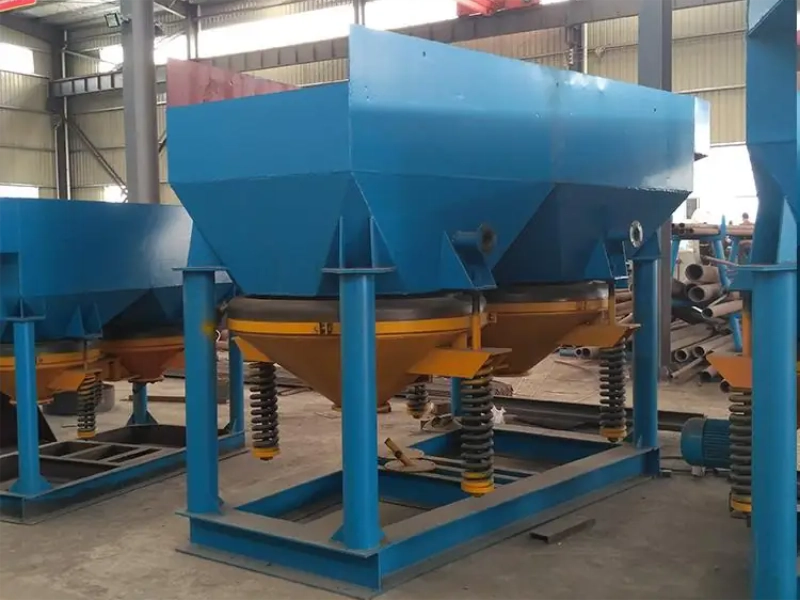

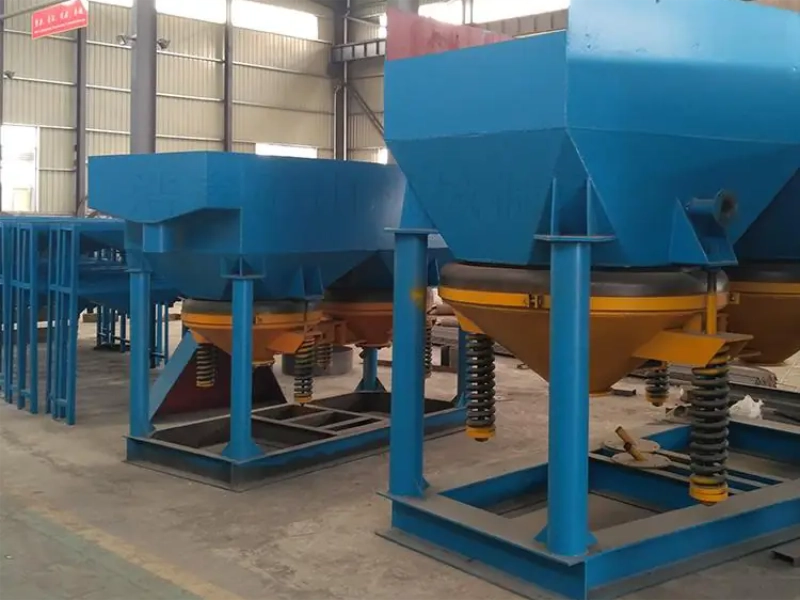

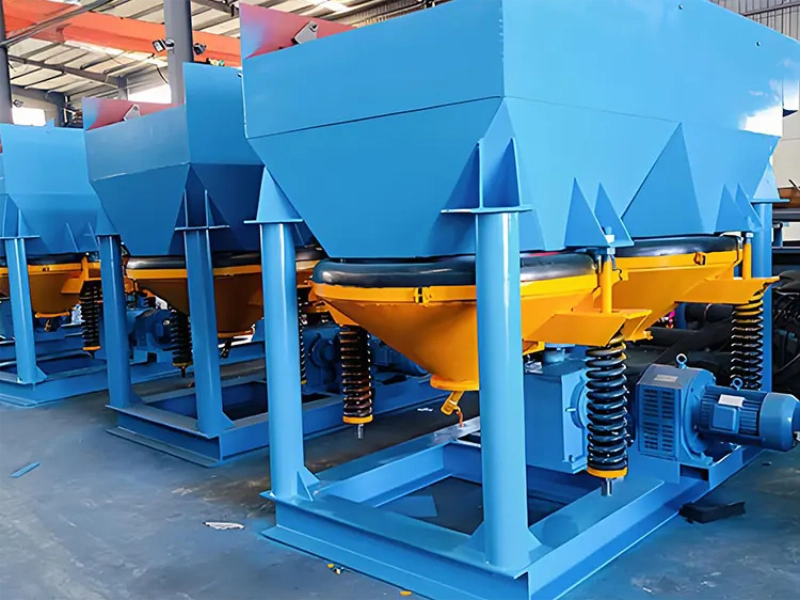

Diaphragm Jig – High Efficiency Gravity Separation Equipment For Ore Dressing
It is a high-efficiency ore dressing equipment based on gravity separation principle with hydraulic pulsation as the core power.
It separates minerals by specific gravity difference without chemicals, which is environmentally friendly and safe with high recovery rate.
It is suitable for processing sand gold, tungsten ore, tin ore and other minerals with obvious specific gravity difference, and adapts to various dressing scales.
The diaphragm jig is a high-efficiency ore dressing equipment based on the principle of gravity separation and with hydraulic pulsation as the core power. It loosens the ore particle group through vertical alternating medium flow and realizes layered separation according to density difference. It is divided into lab small type, industrial small and medium type and large multi-cylinder type, covering two structures of upper moving type and lower moving type. The equipment has the advantages of firm structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, accurate separation, safety and environmental protection. Adopting the sawtooth pulsation curve design, it has high separation efficiency and recovery rate, and can process various minerals such as sand gold, metal ore and non-metal ore, adapting to ore dressing needs of different scales. It is easy to operate and low in maintenance cost. It can not only complete the separation operation independently, but also form a complete ore dressing production line with crushing and grinding equipment. It is widely used in mining, metallurgy, environmental protection and other industries. It is the core preferred equipment for fine grain mineral purification, metal ore separation and metal recovery from smelting slag, which can effectively improve resource utilization rate and mineral added value.
Core Parameters
Model
Jig Chamber Specification (L×W) mm
Number of Jig Chambers
Feeding Granularity mm
Processing Capacity (t/h)
Motor Power (kW)
Stroke Range mm
Stroke Frequency (r/min)
Machine Weight (kg)
Separation Recovery Rate (%)
XT-100 (Lab Small Type)
150×100
2
0-3
0.02-0.7
0.55
0-20
420
65
≥90
XT-200 (Small Industrial Type)
300×200
2
0-6
0.8-3
0.75
0-32
346
75
≥91
XT-500 (Medium Type)
500×400
4
0-10
5-15
3-5.5
5-35
180-300
850
≥92
XT-1000 (Large Multi-cylinder Type)
1000×800
10
0-20
15-30
11-15
10-38
60-160
5500
≥93
Product Advantages & Technical Highlights
Gravity separation: Separate by specific gravity difference without chemicals, environmental protection and safety
High recovery rate: Effectively recover coarse gold, granular gold and fine gold
Stable operation: Uniform pulsation, stable bed layer and good separation effect

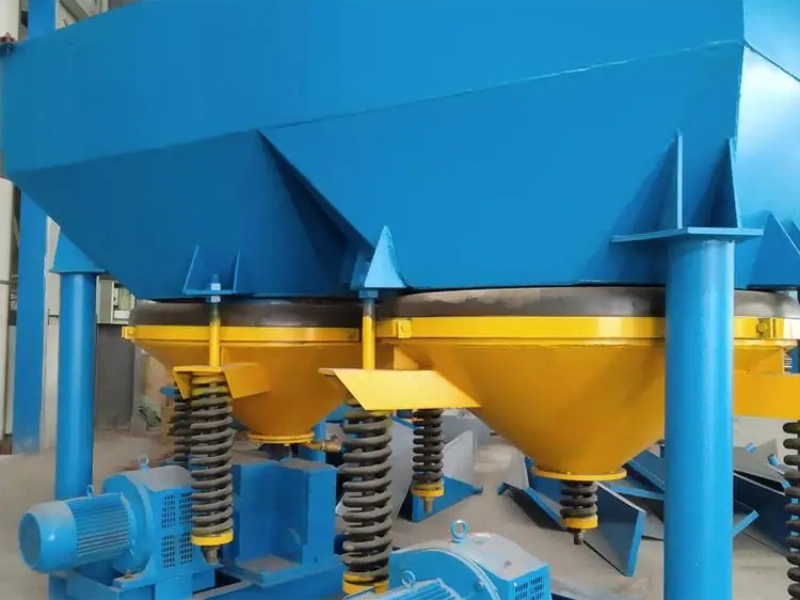

Diaphragm pulsation: Driven by rubber diaphragm, gentle water flow pulsation without gold loss
Adjustable stroke: Stepless adjustment of stroke frequency and stroke to adapt to different ore materials
Jig separation: Ore particles are layered by specific gravity with high concentrate purity
