Piston Jig – High Efficiency Gravity Separation Ore Dressing Equipment

The Piston Jig is a high-efficiency ore dressing equipment based on the gravity separation principle, with piston reciprocating motion as the core power to generate vertical pulsating water flow.
It is suitable for separating minerals with obvious specific gravity differences, and has a variety of models from laboratory small type to large multi-chamber type for different beneficiation needs.
It features stable operation, high separation recovery rate, durable structure, and can be used alone or combined into a complete beneficiation production line.

Inquiry Now

Product Overview

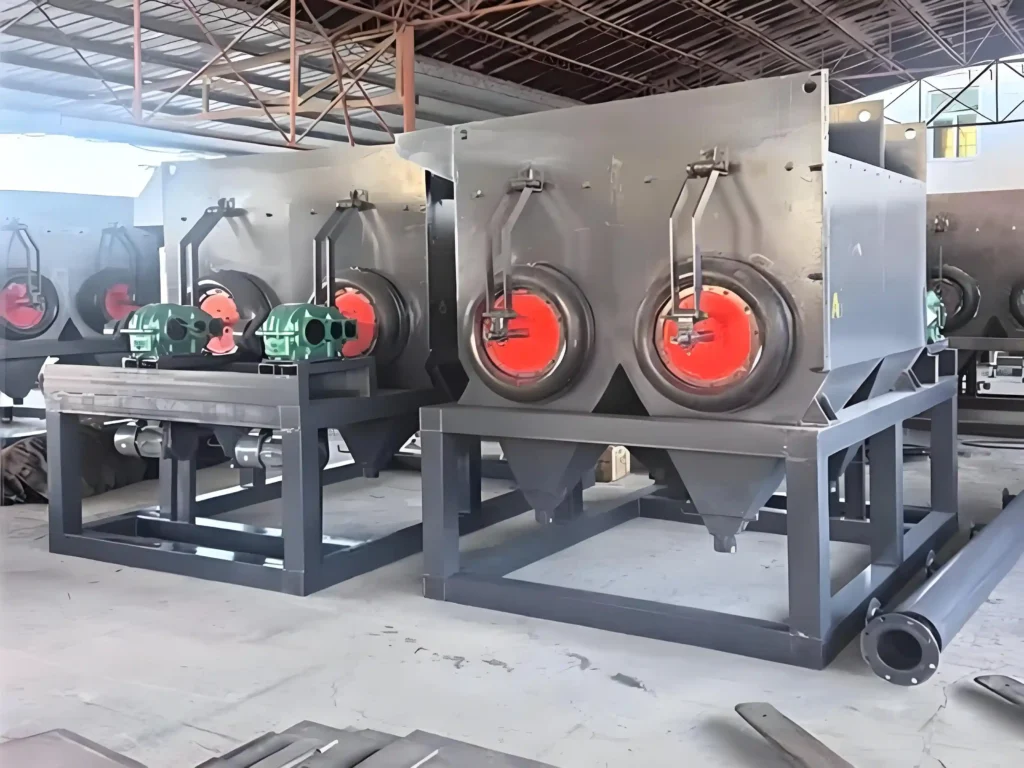

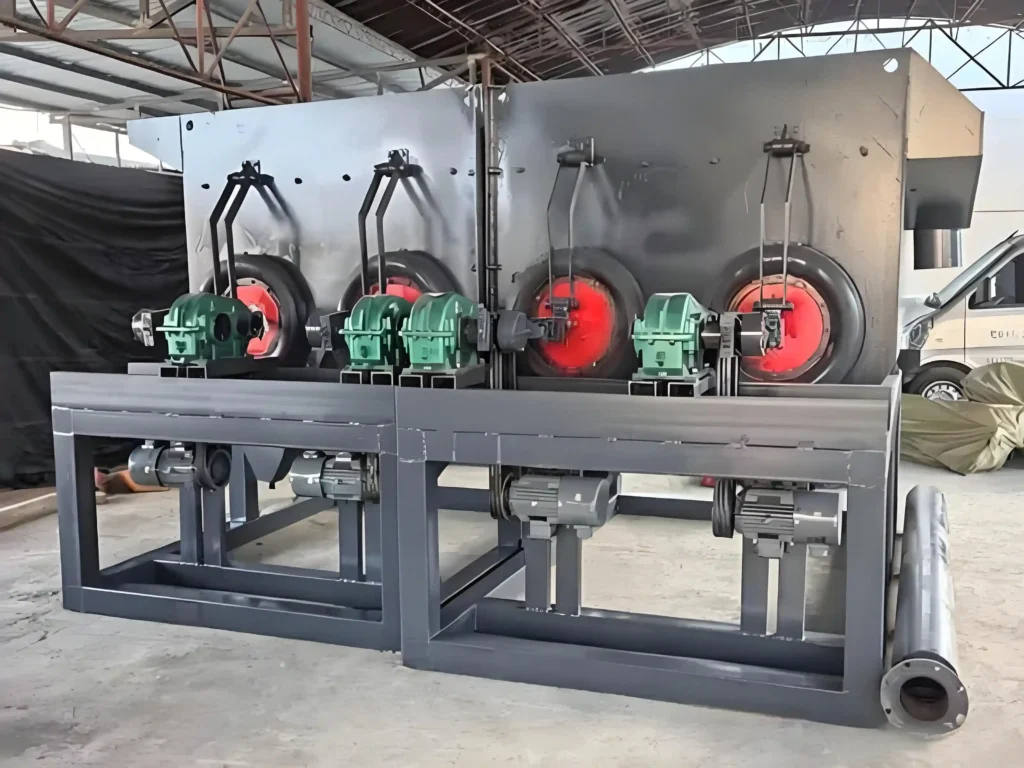

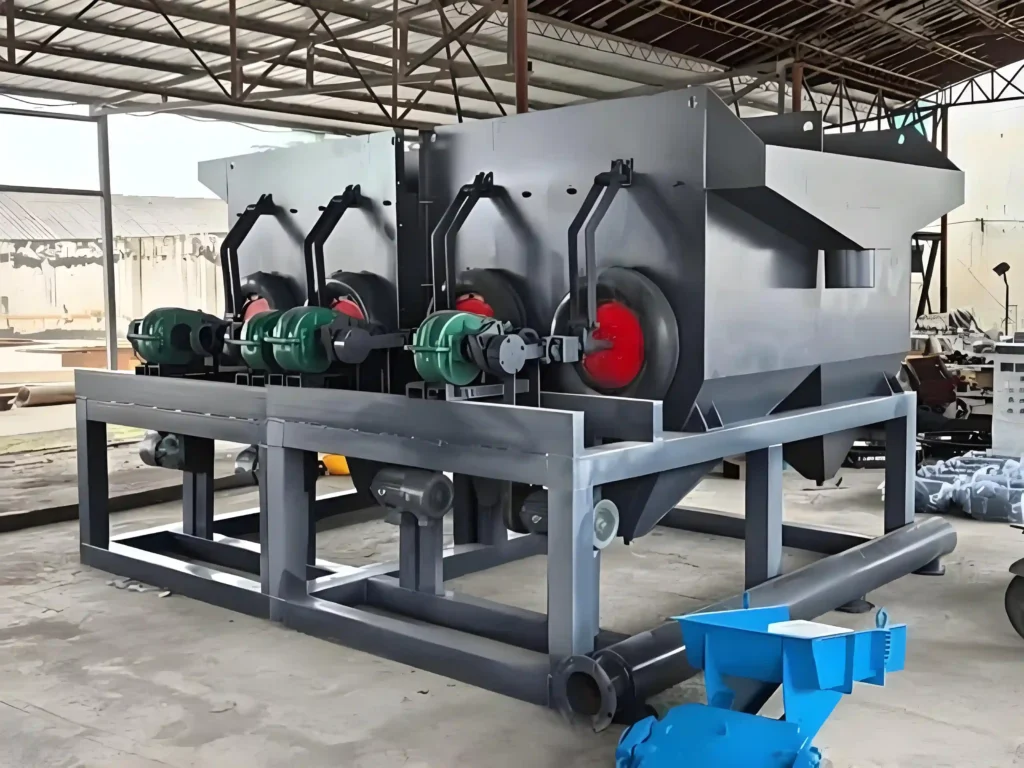

The Piston Jig is a high-efficiency ore dressing equipment based on the gravity separation principle, which takes the vertical pulsating water flow generated by the piston’s reciprocating motion as the core power. It drives the piston to move up and down through the eccentric connecting rod mechanism to form an alternating medium flow, which loosens the ore particle group and realizes layered separation according to the density difference. It is divided into laboratory small type, industrial small and medium type and large multi-chamber type, covering two structures: side-driven type and bottom-driven type. The equipment has the advantages of firm structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, accurate separation, safety and environmental protection. It adopts sawtooth pulsation curve and conical slide valve design, with high separation efficiency and recovery rate. It can process a variety of coarse and medium-grained minerals such as sand gold and metal ore, and adapt to beneficiation needs of different scales. It is easy to operate, low in maintenance cost, convenient for transportation and installation. It can not only complete the separation operation alone, but also be combined with crushing and grinding equipment to form a complete beneficiation production line. It is widely used in mining, metallurgy, environmental protection and other industries. It is the core preferred equipment for coarse and medium-grained mineral separation and metal recovery from smelting slag, which can effectively improve resource utilization rate and mineral added value, and meet the personalized beneficiation needs of different users.

Core Parameters

Model	Jig Chamber Specification (L×W) mm	Number of Jig Chambers	Feeding Particle Size mm	Processing Capacity (t/h)	Motor Power (kW)	Stroke Range mm	Stroke Frequency (r/min)	Machine Weight (kg)	Separation Recovery Rate (%)
HT-100 (Lab Small Type)	150×100	2	0.1-5	0.03-0.8	0.75	5-25	380-450	80	≥88
HT-200 (Small Industrial Type)	300×200	2	0.5-8	1.0-4	1.1	8-35	300-380	100	≥89
HT-500 (Medium Type)	500×400	4	1-15	6-18	4-7.5	10-40	160-320	950	≥90
HT-1000 (Large Multi-chamber Type)	1000×800	10	2-30	18-35	15-22	15-45	80-180	6200	≥91

Product Advantages & Technical Highlights

Powerful driving force: Piston driven, strong pulsation, stable separation of coarse ore
Thorough separation: Accurate layering by specific gravity, high recovery rate of coarse gold
Reliable operation: Mature and durable structure, suitable for long-term heavy load operation
Stable piston transmission: Reciprocating piston motion with stable and strong pulsation
Durable sieve plate: Thickened sieve plate, impact resistant and non-clogging

Applicable Scenarios & Materials

Applicable Scenarios

Sand gold gravity separation, river gold panning, tailings re-recovery
Tungsten and tin ore separation, manganese and iron ore dressing
Large and medium-sized gravity separation production lines

Applicable Materials

Sand gold, coarse gold, granular gold, tungsten ore, tin ore, manganese ore, iron ore
Barite, fluorite and other minerals with obvious specific gravity differences
