Product Overview

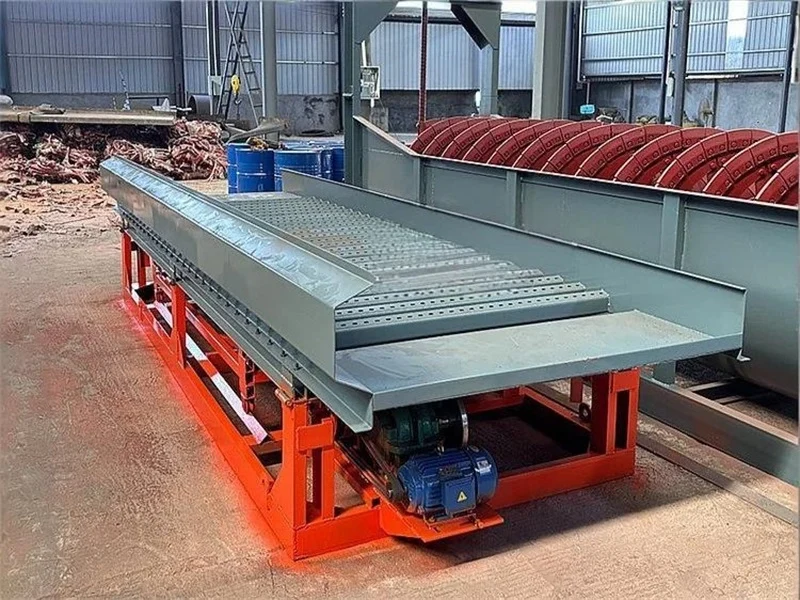

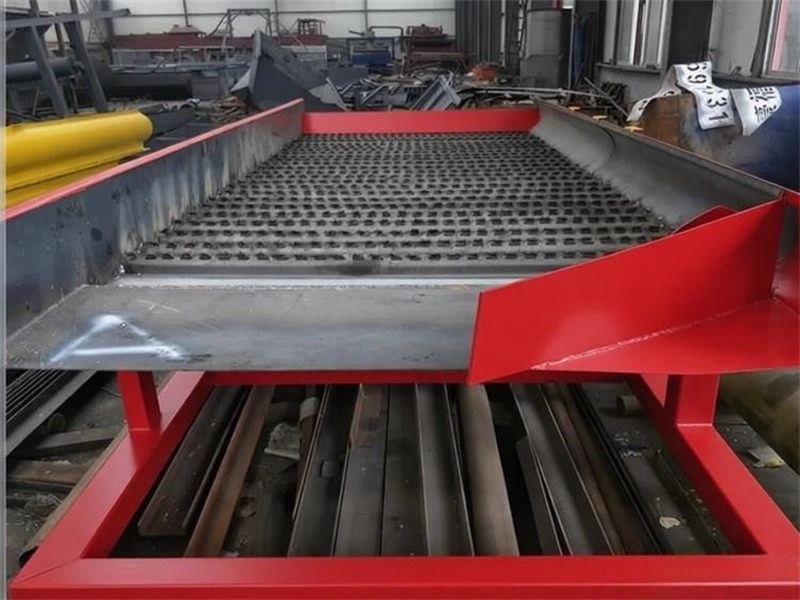

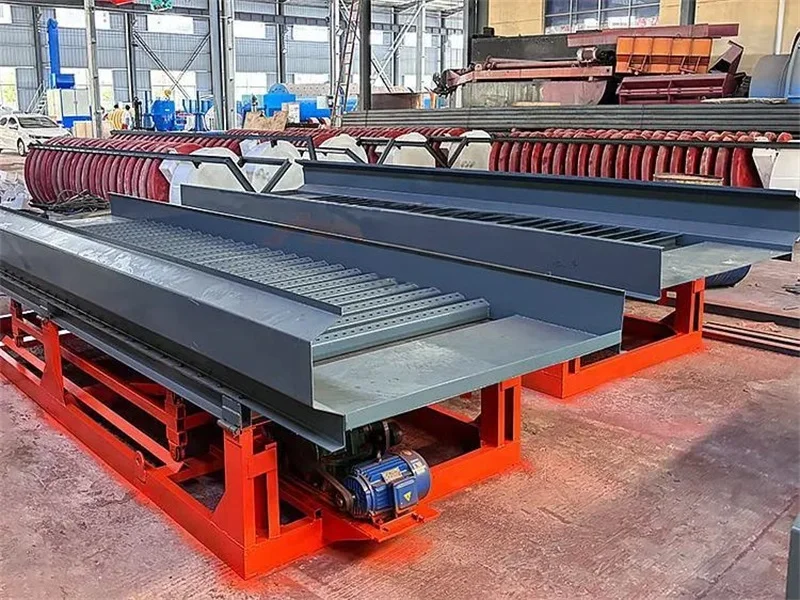

The cam drive shaking chute is a gravity separation industrial equipment adopting a precise cam drive structure. Its core is to drive the cam to rotate by a motor, drive the bed to shake stably at high frequency, and cooperate with the sluice grid design to generate stable and strong eddy current, so as to realize the accurate separation and enrichment of fine and micro-fine heavy minerals (such as capillary gold, fine iron ore) from gangue, sediment and sand. The equipment has the advantages of accurate transmission, stable operation, wear resistance, energy saving and high recovery rate of fine minerals. It can be flexibly matched with production lines and support customization, no frequent relocation, suitable for various heavy mineral separation scenarios, and is the preferred core equipment for fine heavy mineral recovery and high-precision mineral processing operations.
Core Parameter Specification
| Model |
Bed Size (L×W) mm |
Processing Capacity (t/h) |
Shaking Frequency (times/min) |
Motor Power (kW) |
Cam Stroke (mm) |
Fine Mineral Recovery Rate (%) |
| TGS-800 (Cam Drive) |
4000×800 |
1-4 |
350-420 |
1.5 |
6-12 (Adjustable) |
≥92 |
| TGS-1200 (Cam Drive) |
5000×1200 |
3-9 |
350-420 |
2.2 |
6-12 (Adjustable) |
≥93 |
| TGS-1500 (Cam Drive) |
6000×1500 |
8-16 |
380-450 |
3.0 |
8-15 (Adjustable) |
≥94 |
| TGS-2000 (Cam Drive) |
7000×2000 |
15-28 |
380-450 |
4.0 |
8-15 (Adjustable) |
≥95 |
Product Advantages & Technical Highlights
- Accurate Transmission: Cam mechanism drive, fixed stroke, consistent action, strong separation stability
- Stable Operation: Small motion impact, low equipment vibration and noise, safer operation
- High Efficiency for Fine Gold: Soft and uniform shaking, high recovery rate of fine gold and flake gold, low tailings loss
- Durable & Easy to Maintain: High strength cam structure, not easy to deform and wear, low failure rate for long-term use
- Continuous Operation: Continuous feeding and automatic tailings discharge, no caking or blockage, higher efficiency
- Energy Saving & Low Consumption: Reasonable power matching, low energy consumption, suitable for long-term use in field sand gold dressing
Applicable Scenarios & Materials
Applicable Scenarios
- Fixed sand gold ore dressing
- River sand mining and gold dressing
- Dry land sand gold mining
- Tailings reprocessing and enrichment
- Small and medium-sized fixed gold dressing production lines
- Separation of muddy sand gold ore
Applicable Materials
- Sand gold ore, fine gold, flake gold, granular gold
- River sand ore, mountain sand ore, weathered sand ore
- Muddy gold-bearing ore, low-grade gold ore tailings
