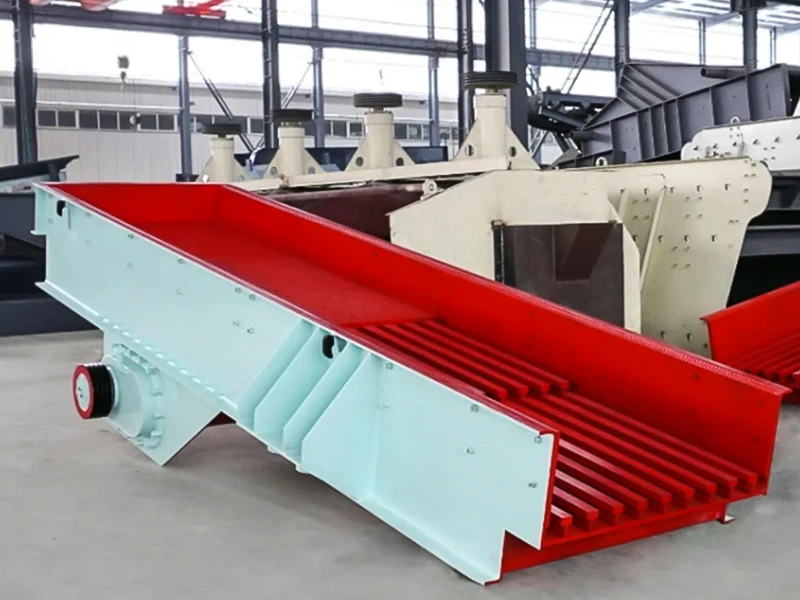

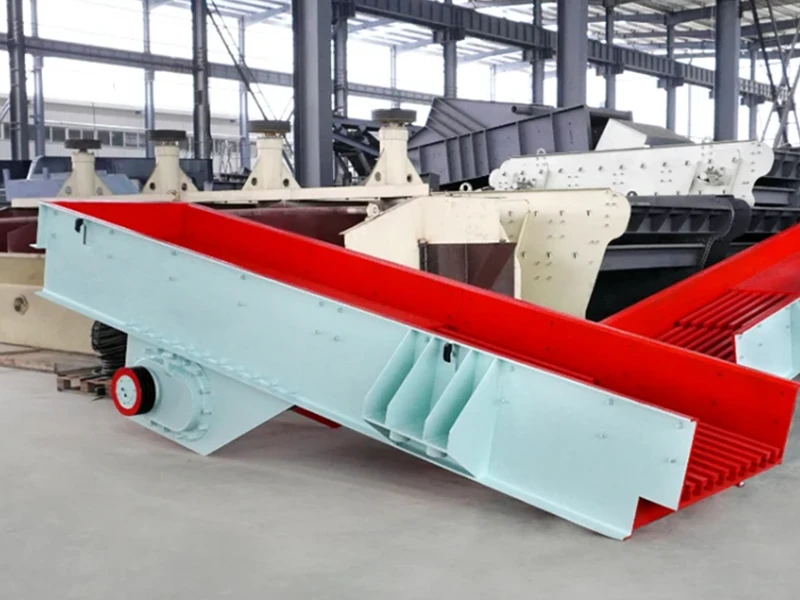

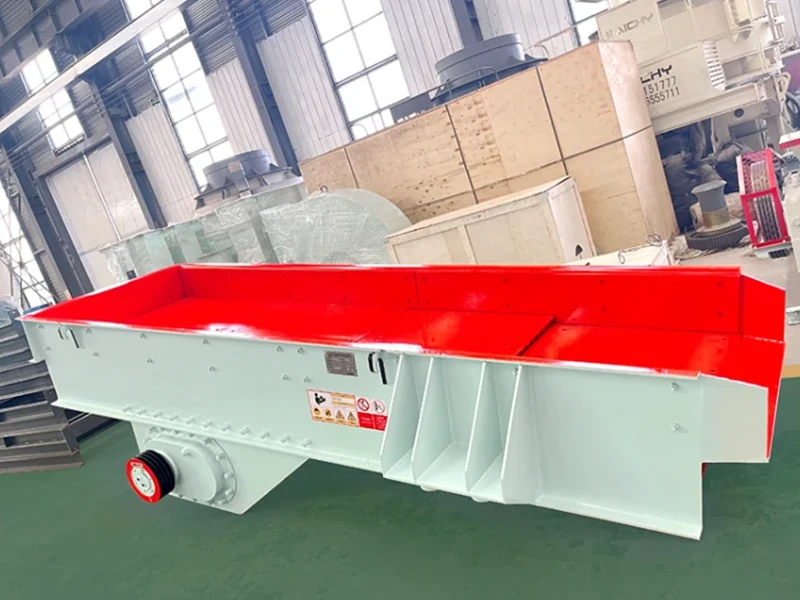

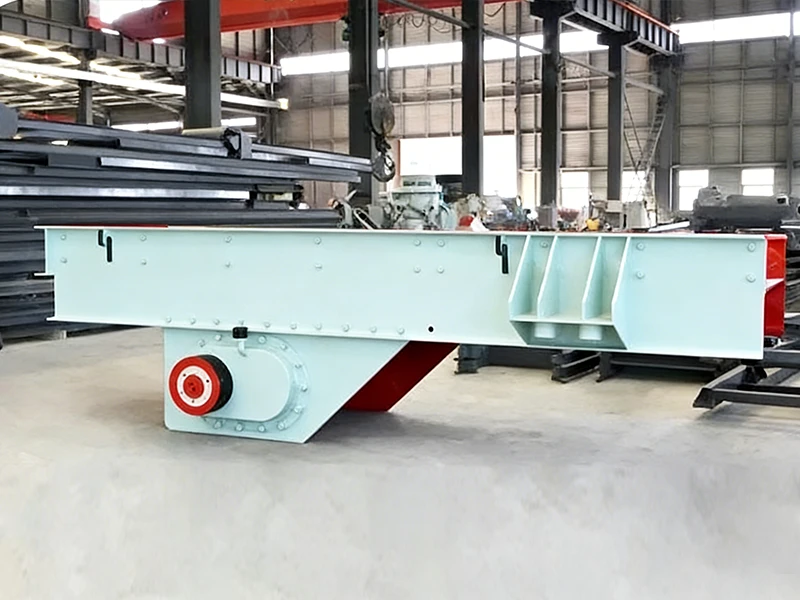

The vibrating feeder is a core feeding equipment at the front end of the production line, adopting the principle of high-frequency vibration feeding, equipped with wear-resistant liner and adjustable vibration mechanism, specially designed for block, granular and powder materials to realize continuous, uniform and stable feeding of raw materials. The equipment has compact volume and convenient installation, can be seamlessly connected with back-end production lines such as vibrating screen, crusher, sand making machine and gold panning equipment, effectively preventing material blockage and adhesion, and is suitable for various working conditions such as mining, sand and gravel plant, gold panning site, etc. It has the advantages of high efficiency, light weight and easy maintenance, and is an essential supporting equipment for stabilizing material and improving efficiency at the front end of small and medium-sized production lines.
Core Parameter Specification
Model
Max Feed Particle Size (mm)
Rotating Speed (r/min)
Processing Capacity (t/h)
Motor Power (kw)
ZSW380×95
600
500-750
150-350
15
ZSW420×10
600
500-800
160-380
15
ZSW490×110
600
500-800
160-380
22
ZSW500×120
600
500-800
160-380
22
ZSW500×150
700
500-800
240-480
37
ZSW600×130
700
500-800
320-600
30
ZSW600×140
700
500-800
400-700
37
ZSW600×150
700
500-800
400-700
37
ZSW600×160
700
500-800
400-700
45
Product Advantages & Technical Highlights
Uniform Vibration: High-frequency vibration feeding, stable feeding without deflection, ensuring efficient operation of back-end equipment.
Anti-block & Wear Resistant: Lined with high manganese steel wear plate, vibration anti-adhesion and blockage, suitable for wet and agglomerated materials.
Flexible Speed Regulation: Variable frequency adjustable vibration frequency, precise control of feeding amount, no waste of materials as required.
Light & Easy to Install: Compact volume, light weight, no need for large hoisting, quick installation and commissioning.
Wide Adaptability: Can process ore, sand gravel, gold sand and other materials, docking with all types of back-end equipment.
Applicable Scenarios & Materials
Placer Gold Panning Production Line: Feeding of placer gold ore raw materials and sand gravel mixture, accurately docking with vibrating screen and gold panning chute.
Sand Gravel Production Line: Feeding of cobblestone, granite, limestone and other raw materials, connecting with crusher and sand making machine.
Mining Beneficiation Production Line: Feeding of metal/non-metal ore and tailings, docking with magnetic separation, gravity separation and screening equipment.
Building Materials/Powder Processing Line: Stable feeding of crushed stone, aggregate, powder and other raw materials, suitable for small processing production lines.
