It is a heavy-duty screening equipment specially designed for multi-particle size classification, realizing three-stage screening at one time with multi-screen surface combination.
Adopting circular vibration trajectory, it has the advantages of fast material stratification, high classification accuracy and large processing capacity.
Equipped with heavy-duty frame and spring shock absorption, it is wear-resistant, durable and stable in operation for harsh working conditions.

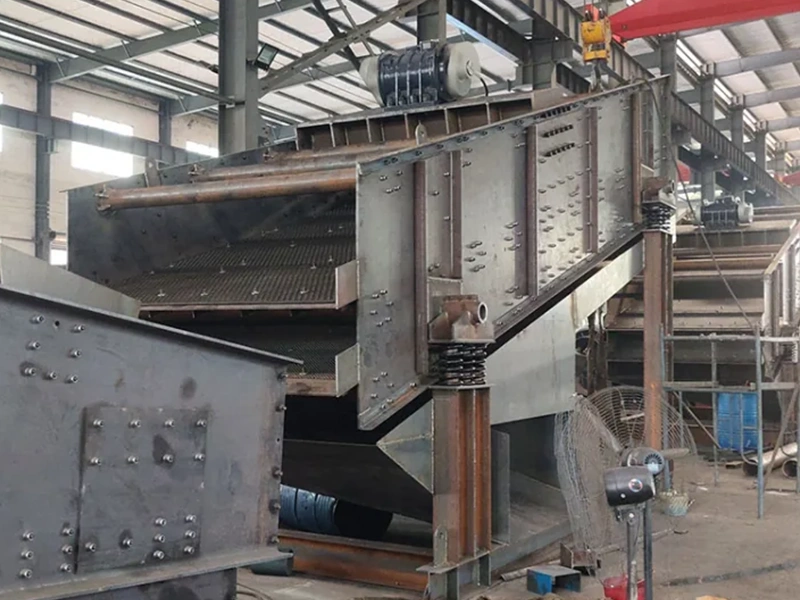

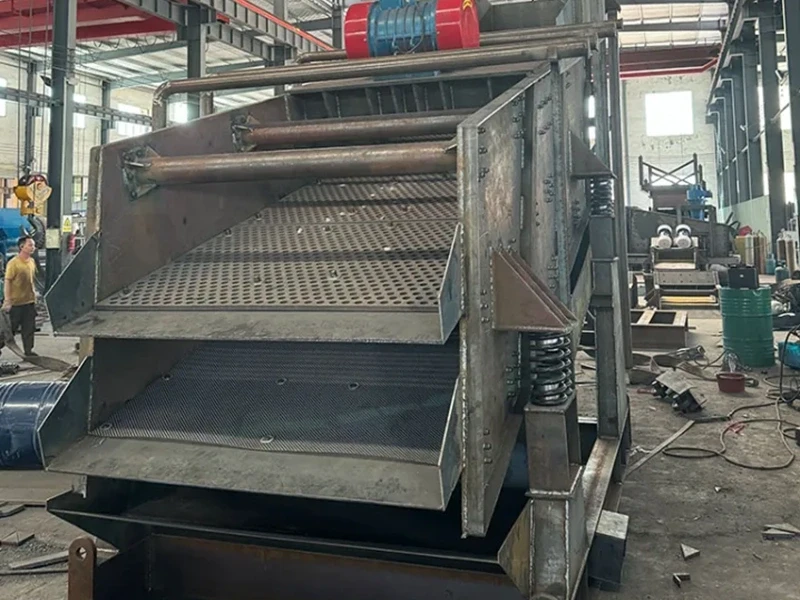

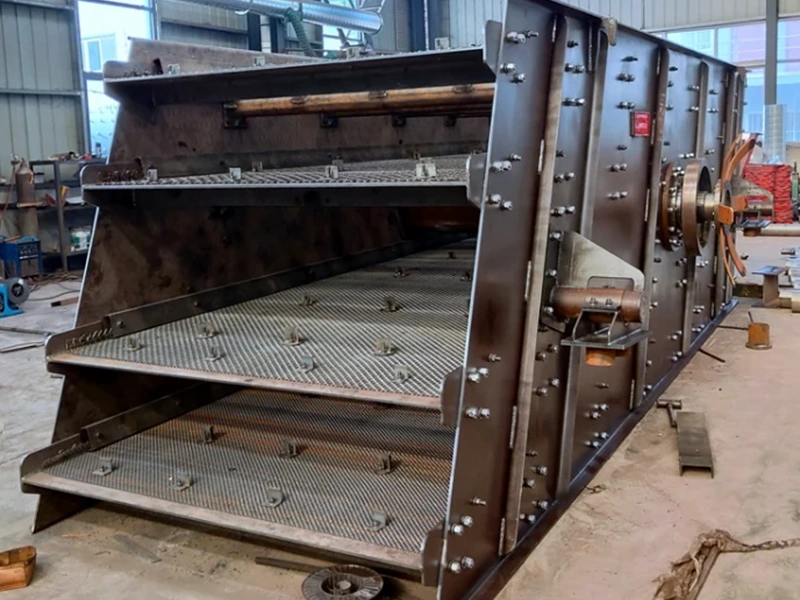

The three-deck circular vibrating screen (heavy-duty mining model) is a heavy-duty screening equipment specially designed for multi-particle size classification. Driven by a top eccentric block exciter, the screen body makes circular motion vibration, and is equipped with three layers of differentiated screen surfaces (upper punched screen plate, middle woven screen mesh, lower fine screen mesh), focusing on the three-stage accurate classification of ore, sand and gravel and other materials. The equipment has large processing capacity and high classification accuracy, suitable for heavy working conditions such as large-scale mines and sand and gravel plants. It can separate three kinds of finished materials with different particle sizes at one time, and has the advantages of wear resistance, durability and stable operation.
Core Specifications
Model
Screen Surface Size (L×W) mm
Processing Capacity (t/h)
Excitation Frequency (r/min)
Motor Power (kW)
Equipment Weight (t)
YS1836
1800×3600
100-250
700-850
22
8.2-9.0
YS2040
2000×4000
150-350
700-850
30
10.5-11.5
YS2448
2400×4800
200-450
700-850
37
14.5-15.8
Product Advantages & Technical Highlights
Three-stage Classification: Multi-screen surface combination, completing three-stage screening at one time
Durable Structure: Heavy-duty frame + spring shock absorption, withstanding harsh working conditions
Accurate Screening: Circular vibration trajectory, fast material stratification and high classification accuracy
Efficient Processing: Large flow design, adapting to heavy production needs
Wide Adaptability: Suitable for multi-particle size materials and compatible with various industries
Applicable Scenarios & Materials
Applicable Scenarios
Large-scale mines: Multi-stage classification of ore raw materials, separation of oversize lumps
Large-scale sand and gravel plants: Fine classification of sand and gravel raw materials, standardized processing of aggregates
Building material factories: Multi-stage classification of crushed construction waste, purification of recycled materials
Coal mines: In-depth classification of raw coal, fine separation of gangue
Applicable Materials
Core materials: Ore raw materials, sand and gravel rough materials, construction waste blocks
Adaptable materials: Raw coal, tailings coarse materials, multi-specification aggregates
