Submerged Spiral Ore Washer – Efficient Mineral Washing Equipment
It is an efficient mineral washing preprocessing equipment based on gravity sedimentation and hydraulic scrubbing, realizing mineral and sediment separation.
It integrates desliming, dehydration and classification, with high washing efficiency and low material loss, suitable for various muddy minerals.
It can be used alone or with other mining equipment to form a complete ore dressing production line for multiple industries.

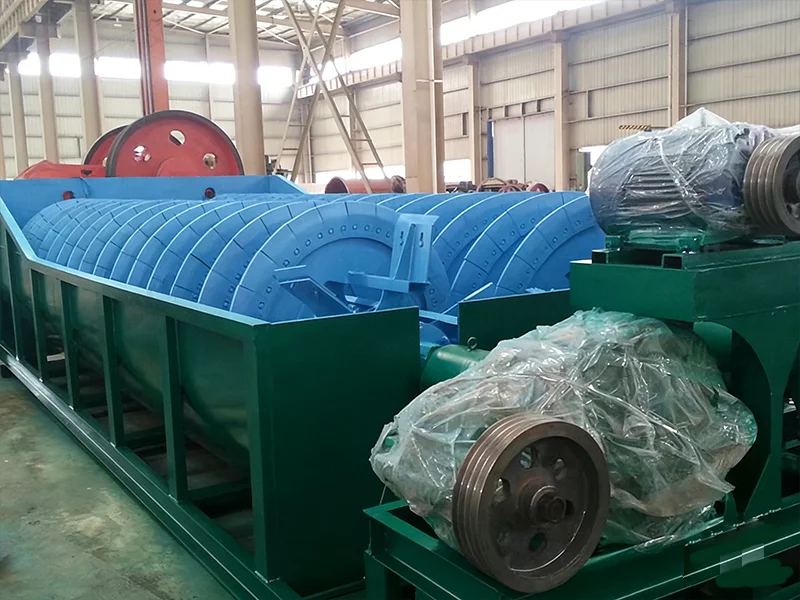

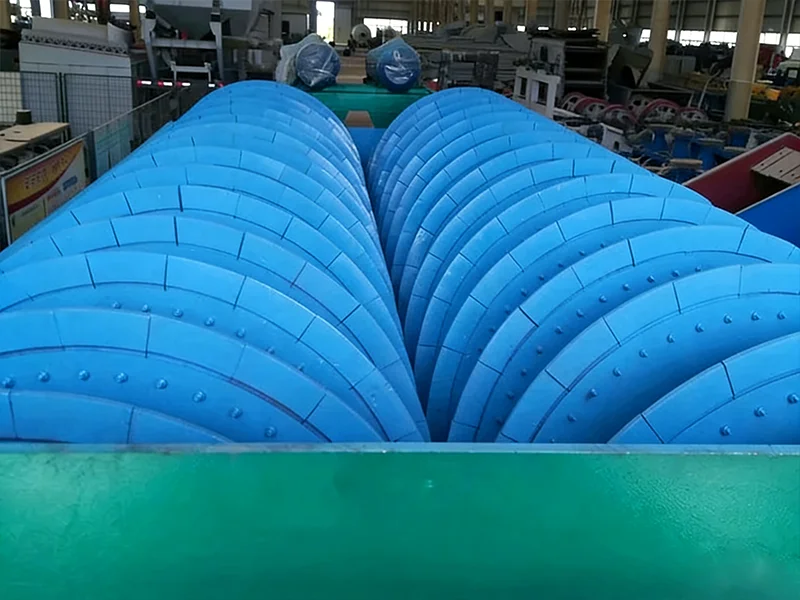

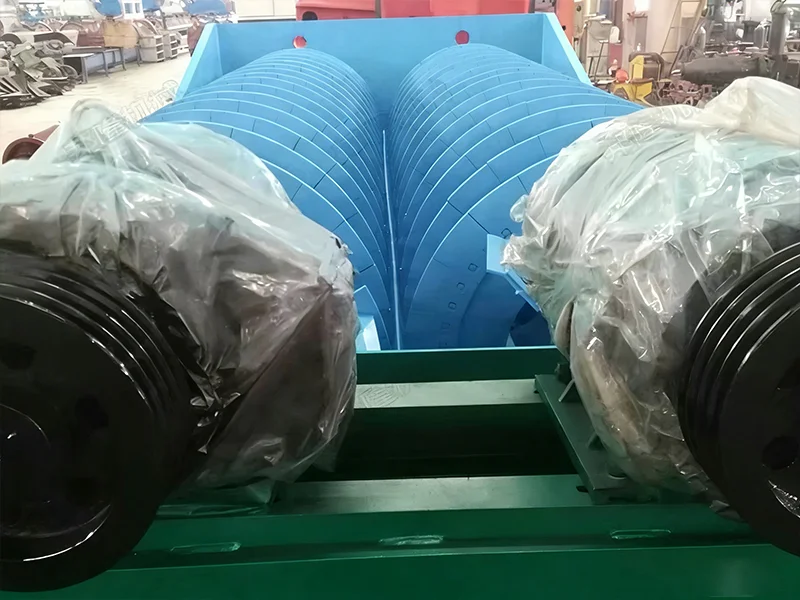

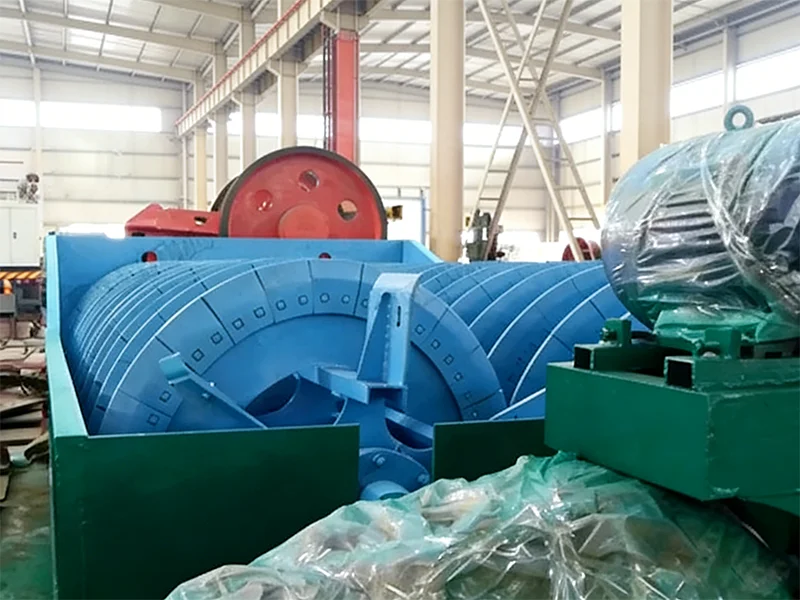

The submerged spiral ore washer is an efficient mineral washing and preprocessing equipment based on the principles of gravity sedimentation and hydraulic scrubbing. Its core is to submerge the spiral main body in the ore pulp, drive the material to tumble and scrub through the rotation of spiral blades, realize the separation of minerals from sediment and impurities, and complete desliming, dehydration and classification operations synchronously. It is divided into lab small, industrial small, medium and large-scale models, covering single spiral and double spiral series.
The equipment has the advantages of firm structure, stable operation, wear resistance, energy saving, intelligent control, strong adaptability, accurate ore washing, safety and environmental protection, with high ore washing efficiency and low material loss. It can process a variety of muddy minerals and adapt to washing needs of different scales. It is easy to operate and has low maintenance cost. It can not only complete ore washing operation alone, but also form a complete ore dressing production line with crushing, grinding and sorting equipment. It is widely used in mining, metallurgy, building materials, environmental protection and other industries. It is the core preferred equipment for muddy mineral washing and preprocessing, which can effectively improve the efficiency of subsequent operations and the grade of finished products, reduce resource waste and lower comprehensive operation costs, and is also an ideal equipment for the upgrading of the ore dressing industry.
Core Parameter Specification
Model Category
Model
Spiral Diameter (mm)
Water Tank Length (mm)
Feeding Size (mm)
Processing Capacity (t/h)
Motor Power (kW)
Spiral Speed (r/min)
Submersion Depth (mm)
Total Weight (kg)
Ore Washing Efficiency (%)
Lab Small (Single Spiral)
CX-300
300
2000
0.1-5
0.75-1.5
1.1
20-35
150-250
350
≥92
Industrial Small (Single Spiral)
CX-600
600
4500
0.5-20
8-25
5.5-7.5
15-28
250-400
1800
≥93
Industrial Medium (Double Spiral)
CX-1000
1000
6500
1-30
30-80
11-18.5
12-22
400-600
6200
≥94
Industrial Large (Double Spiral)
CX-1500
1500
9600
5-50
90-180
30-45
8-18
600-800
18500
≥95
Product Advantages & Technical Highlights
Thorough Washing: Strong stirring for desliming, high mineral cleanliness
Large Processing Capacity: Continuous feeding and washing, suitable for mass production
Stable Operation: Smooth spiral operation, low vibration and few failures
Wear Resistant & Durable: Thickened wear-resistant blades, long service life
Simple Structure: Easy maintenance, few wearing parts
Wide Application: Washable for sand, ore and ore pulp
Applicable Scenarios & Materials
Application Scenarios
Sand gold washing
Sand and gravel yard cleaning
Ore desliming
Concentrator preprocessing
Tailing washing
Applicable Materials
Sand gold, sand and gravel, cobblestone, limestone
