Product Overview

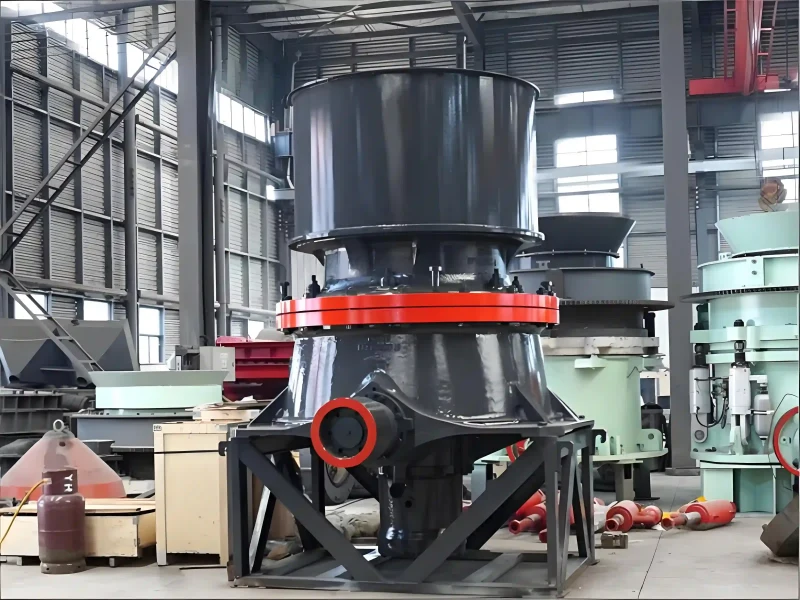

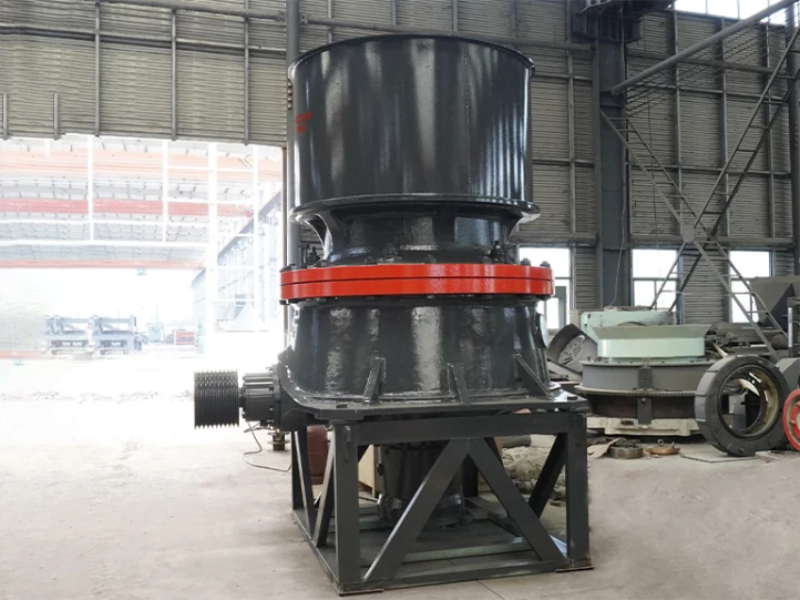

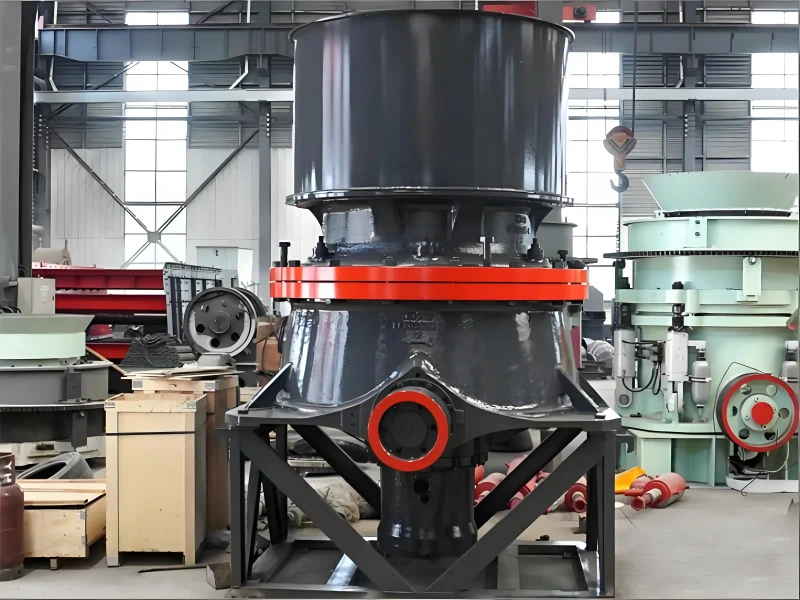

The single cylinder cone crusher is a high-efficiency mining crushing equipment integrating medium, fine and ultra-fine crushing. Its core adopts a single cylinder hydraulic integrated structure, driven by a motor to drive the eccentric spindle to rotate the crushing cone, and crushes massive materials into granular materials meeting requirements through the laminated crushing principle. The equipment has the advantages of compact volume, simple structure, wear resistance and energy saving, intelligent control, strong adaptability, safety and reliability, and high cost performance. It is divided into fixed and mobile types, covering small, medium and large specifications. Compared with multi-cylinder cone crushers, it is more convenient and economical, can adapt to a variety of scenarios and medium and high hardness materials. It can be used alone or with a complete crushing production line, and is the core crushing equipment in mining, sand and gravel processing, metallurgical mineral processing and other industries.
Core Parameter Specification
| Model |
Feed Opening Size (mm) |
Feed Particle Size (mm) |
Discharge Particle Size (mm) |
Processing Capacity (t/h) |
Motor Power (kW) |
Spindle Speed (r/min) |
Machine Weight (t) |
| SC-600 (Small) |
100-180 |
≤150 |
5-25 (Adjustable) |
10-30 |
15-30 |
1200-1500 |
2.5-4.0 |
| SC-1000 (Medium) |
180-250 |
≤220 |
8-35 (Adjustable) |
50-120 |
45-75 |
900-1100 |
10.5-13.0 |
| SC-1500 (Large) |
250-350 |
≤320 |
10-45 (Adjustable) |
150-300 |
90-160 |
700-900 |
32-38.0 |
| SCY-1200 (Mobile) |
200-280 |
≤250 |
8-30 (Adjustable) |
60-150 |
55-90 |
850-1050 |
18-22.0 |
Product Advantages & Technical Highlights
- Powerful Crushing: Single cylinder hydraulic drive, ideal for hard rock, large crushing ratio and high output
- Stable Operation: Stable continuous operation, suitable for long-term heavy load production in mines
- Uniform Discharge: Good finished particle shape and uniform size, meeting high-standard material requirements
- Intelligent Cavity Cleaning: Hydraulic cavity cleaning and automatic adjustment, reduce jamming and short downtime
- Wear Resistant & Durable: Wear-resistant material for core components, long service life and low cost
- Wide Application: Capable of crushing hard rock, ore, river pebbles, granite and other materials
Applicable Scenarios & Materials
Applicable Scenarios
Large sand and gravel plants, medium and fine crushing in mines, hard rock crushing, sand making production lines, gold ore dressing supporting, high-quality aggregate production in stone yards
Applicable Materials
Granite, basalt, river pebbles, iron ore, gold ore, limestone, quartz stone, cobblestone, various high-hardness rocks
