Product Overview

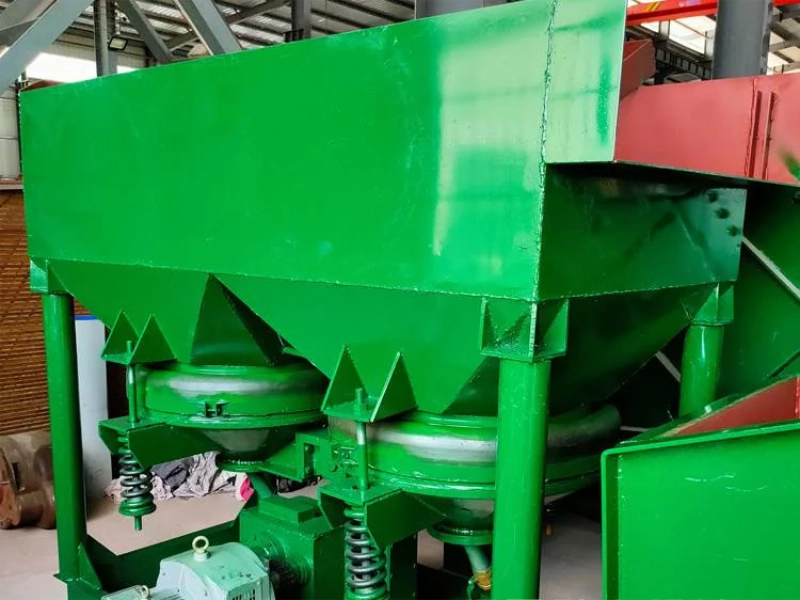

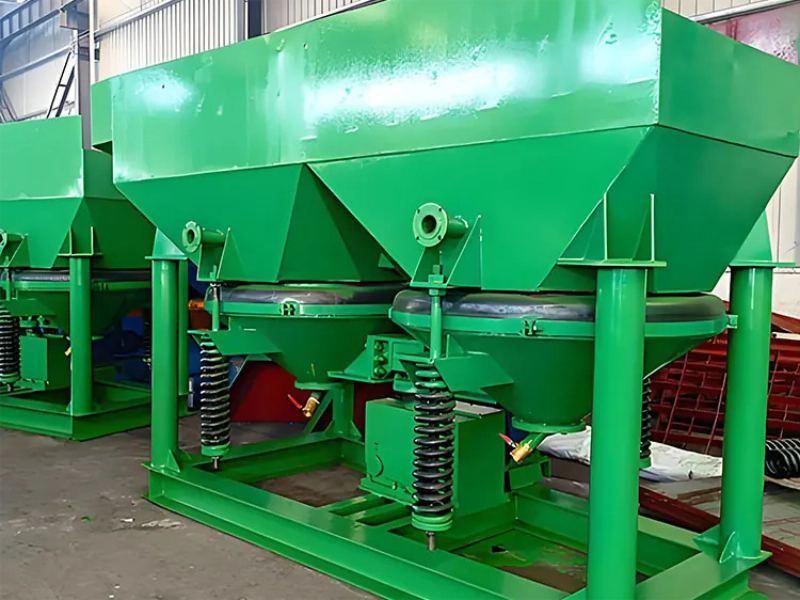

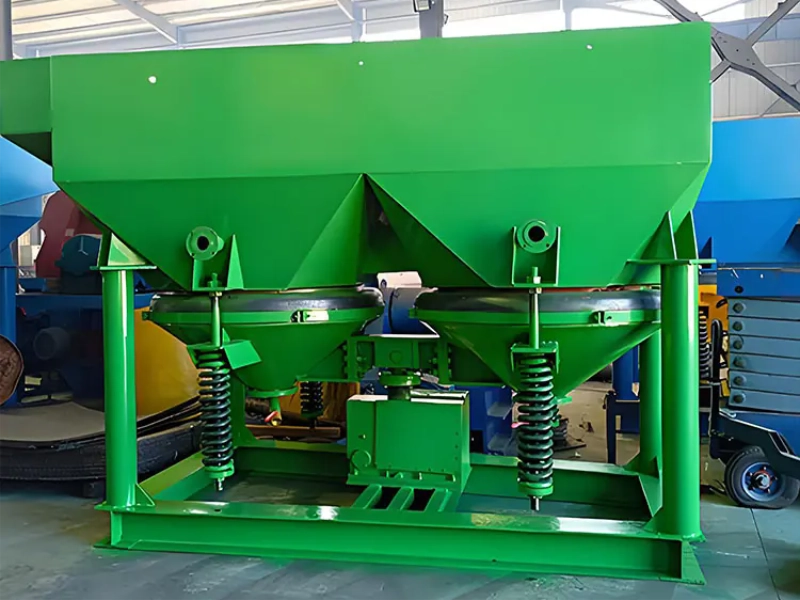

Jig separator is an efficient ore dressing equipment based on the principle of gravity separation, with pulsating water flow (hydraulic/pneumatic-hydraulic coordination) as the core power, covering mainstream types such as air pulsation, diaphragm and sawtooth wave. It is divided into full-scale models including lab small, industrial small and medium, large multi-chamber and movable types. The core of the equipment is to loosen the ore particle group through pulsating water flow and realize layered separation according to density differences. It has the advantages of solid structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, accurate separation, safety and environmental protection. It can process 0.02-30mm coarse, medium and fine minerals with a separation recovery rate of up to 90%-93%, especially good at purification of fine and micro-fine grain minerals. It is easy to operate, with low maintenance cost, convenient transportation and installation. It can not only complete the separation operation independently, but also form a complete ore dressing production line with crushing and grinding equipment. It is widely used in mining, metallurgy, environmental protection and other industries, and is the core preferred equipment for coarse, medium and fine grain mineral separation, smelting slag recovery and tailings utilization. It can meet the personalized needs of different users such as lab tests, small workshops and large and medium-scale mass production, and effectively improve resource utilization rate and mineral added value.
Product Specification
| Machine Type |
Model |
Jig Chamber Spec (L×W) mm |
Jig Chamber Qty |
Feeding Granularity mm |
Processing Capacity (t/h) |
Motor Power (kW) |
Stroke Range mm |
Stroke Frequency (r/min) |
Machine Weight (kg) |
Separation Recovery (%) |
| Lab Small (Universal) |
JT-100 |
150×100 |
2 |
0.02-5 |
0.05-1.0 |
0.75 |
5-25 |
350-480 |
90 |
≥90 |
| Air Pulsation Jig (Small Industrial) |
KT-200 |
300×200 |
2 |
0.1-10 |
1.2-5 |
1.5 |
8-35 |
280-400 |
120 |
≥91 |
| Diaphragm Jig (Medium) |
XT-500 |
500×400 |
4 |
0.5-20 |
7-20 |
5.5-11 |
10-40 |
150-330 |
1050 |
≥92 |
| Sawtooth Wave Jig (Large Multi-chamber) |
CT-1000 |
1000×800 |
10 |
1-30 |
20-40 |
18-30 |
10-45 |
70-180 |
6800 |
≥93 |
| Movable Jig (Universal Medium) |
YT-600 |
600×500 |
6 |
0.3-25 |
10-25 |
11-15 |
8-42 |
120-300 |
8500 |
≥92 |
Product Advantages & Technical Highlights
- Gravity separation: Separate by mineral specific gravity difference, no chemical reagents, environmental protection and safety
- High recovery rate: Efficiently recover coarse gold, granular gold and fine gold
- Stable operation: Uniform pulsation, stable bed layer, excellent separation effect
- Pulsating water flow: Driven by piston/diaphragm/air, clear stratification, no gold loss
- Continuous operation: Automatic ore discharge, 24-hour uninterrupted production available
- Durable sieve plate: Thickened wear-resistant sieve plate, impact resistance, no hole blocking
Applicable Scenarios & Materials
Applicable Scenarios
Sand gold gravity separation, river gold panning, tailings recovery, tungsten-tin ore separation, manganese-iron ore purification, coal gangue removal, large, medium and small gravity separation production lines
Applicable Materials
Sand gold, granular gold, tungsten ore, tin ore, manganese ore, iron ore, barite, fluorite, coal and various minerals with obvious specific gravity differences
