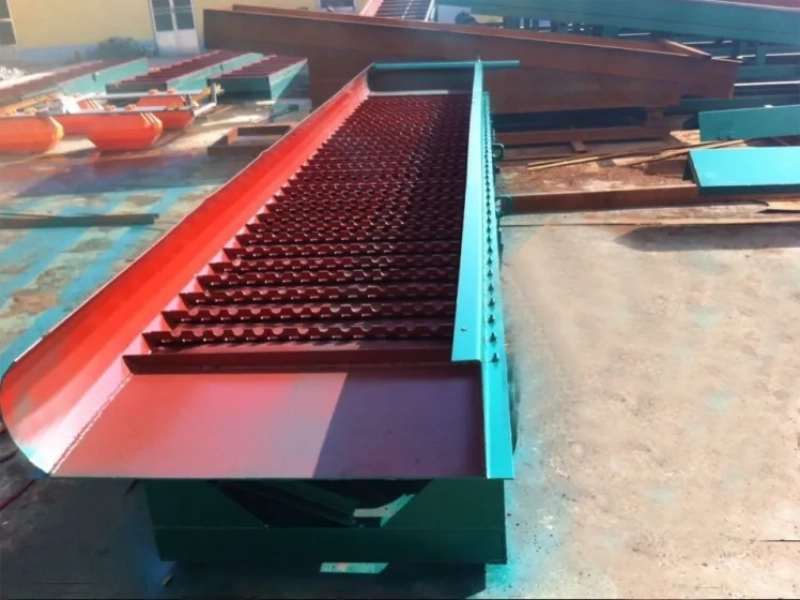

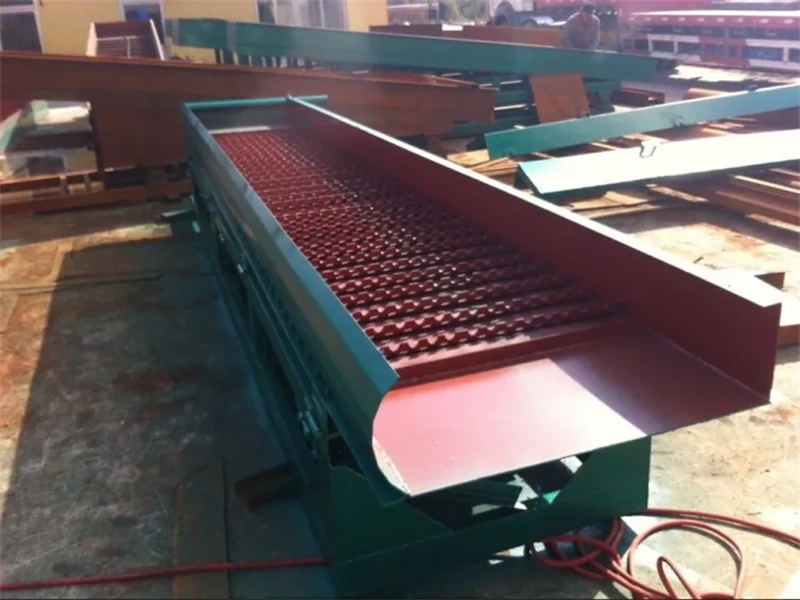

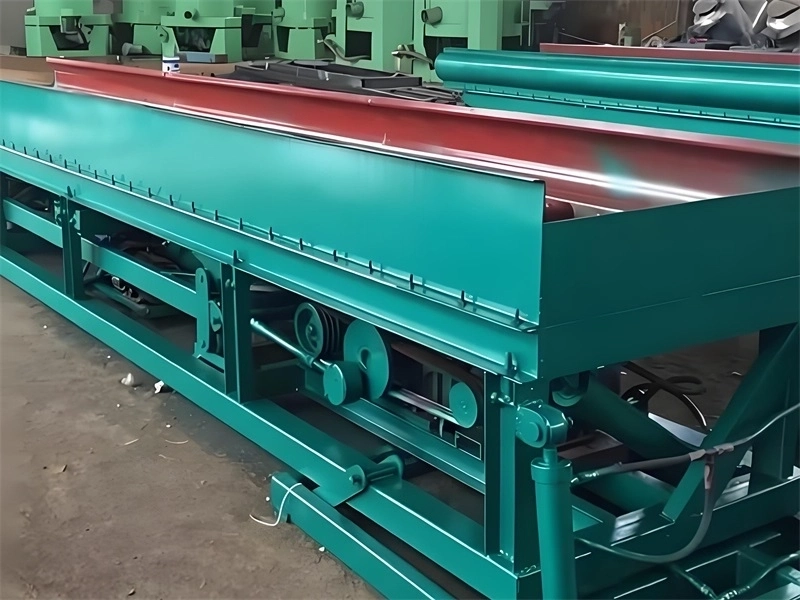

The mobile vibrating chute is a gravity separation industrial equipment with flexible transfer and no fixed installation. It adopts the combined design of mobile chassis and vibrating bed surface. Driven by a motor (diesel power optional) to drive the transmission structure, it drives the bed surface to vibrate continuously and stably. Cooperating with the chute grid design, it generates stable eddy current to realize the accurate separation and enrichment of fine and micro-grained heavy minerals (such as capillary gold, fine iron ore) from gangue and sediment. The equipment has the advantages of convenient movement, high separation efficiency, wear resistance, energy saving, anti-silting, anti-blocking, intelligent control and strong adaptability. It can quickly switch operation sites and adapt to outdoor scattered ore spots, temporary mineral processing and other scenarios without fixed site construction. It is the core preferred equipment for outdoor mobile mineral processing and fine-grained mineral recovery.
Core Parameters & Specifications
Model
Bed Size (L×W) mm
Processing Capacity (t/h)
Vibration Frequency (times/min)
Motor Power (kW)
Stroke (mm)
Movement Speed (km/h)
Fine Gold Recovery Rate (%)
YGS-800 (Mobile)
4000×800
1-4
320-400
1.5 (Diesel power optional)
8-15 (Adjustable)
≤15
≥92
YGS-1200 (Mobile)
5000×1200
3-9
320-400
2.2 (Diesel power optional)
8-15 (Adjustable)
≤12
≥93
YGS-1500 (Mobile)
6000×1500
8-16
350-420
3.0 (Diesel power optional)
10-18 (Adjustable)
≤10
≥94
YGS-2000 (Mobile)
7000×2000
15-28
350-420
4.0 (Diesel power optional)
10-18 (Adjustable)
≤8
≥95
Product Advantages & Technical Highlights
Wheeled walking: Equipped with walking tires/towing frame for easy short-distance movement
Bionic vibration: Bionic dustpan peristaltic mineral processing, good pulp stratification, easy settlement of heavy ore
Adjustable amplitude: Frequency and amplitude can be adjusted to adapt to different placer gold materials
Wear-resistant inner lining: Wear-resistant lining plate of chute body, resistant to scouring and longer service life
Automatic tailing discharge: Continuous feeding and automatic tailing discharge, no chute blockage and no bottom deposition
Integrated design: Integrating vibration, separation and tailing discharge, single machine forms a production line
Applicable Scenarios & Materials
Applicable Scenarios
Field placer gold mobile mining, river sand mining and gold separation
Dry land placer gold mobile mineral processing, multi-point re-selection of tailings
