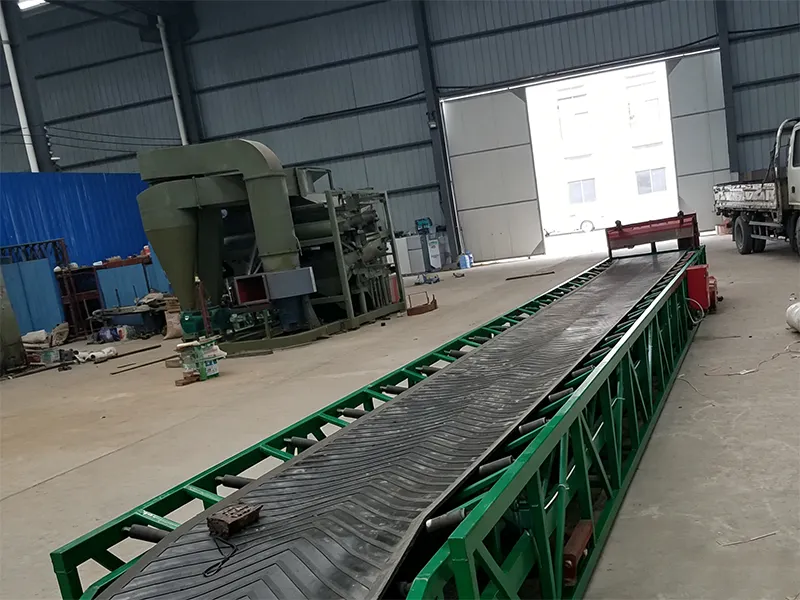

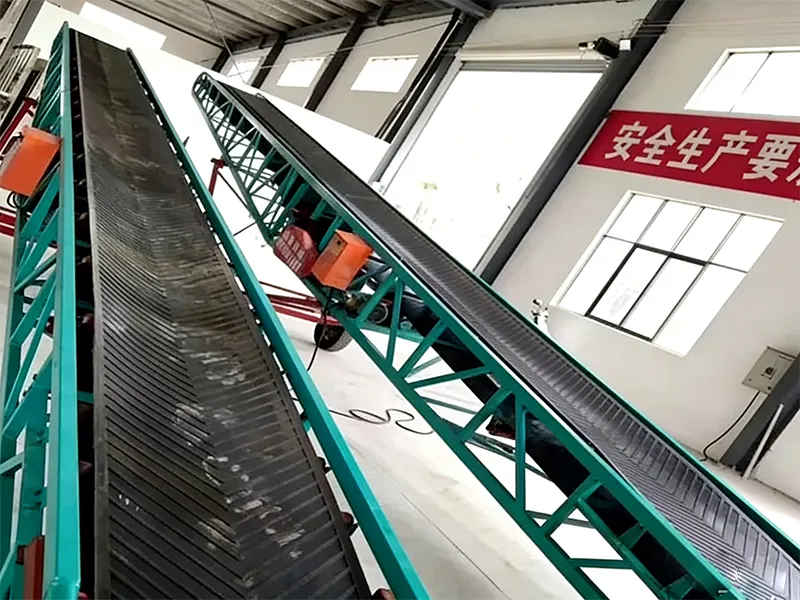

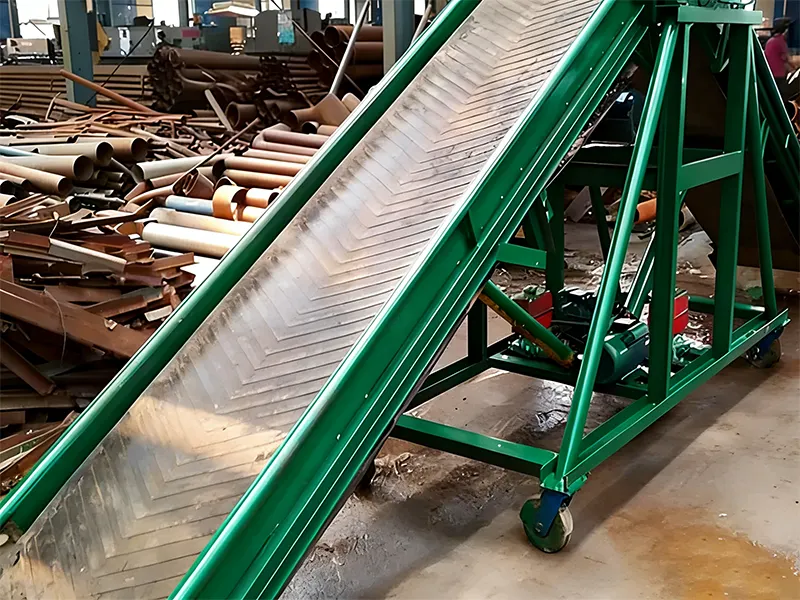

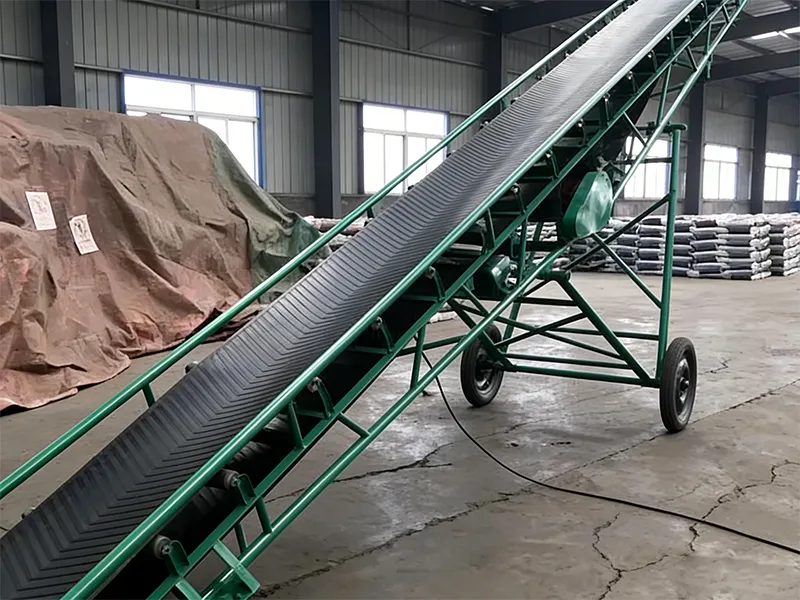

Mobile Bulk & Packed Material Belt Conveyor – YD Series
Designed for outdoor multi-point operation, it adopts wear-resistant and skid-proof rubber belt and reinforced wheeled movable chassis, no fixed installation and start-up with power on.
Supports 0-18° small slope material transportation, suitable for short-distance transfer of bulk materials and turnover of various bagged packed materials.
Lightweight and sturdy body, can be quickly transferred to different operation points and connect with various production line equipment seamlessly.
The mobile bulk & packed material belt conveyor is a lightweight and sturdy flexible transfer equipment specially designed for alternating transportation of bulk and packed materials, adopting wear-resistant and skid-proof rubber belt + reinforced wheeled movable chassis, focusing on the safe and efficient conveying of bulk materials such as sand and stone, ore and bagged materials such as cement, building aggregate with horizontal and small slope (0-18°) modes without fixed installation. It supports multi-mode movement such as hand push, towed and self-propelled, can be quickly transferred between warehouses and outdoor operation points and seamlessly connected with feeder, vibrating screen, gold panning equipment, crusher and other front and rear end production line equipment. The equipment is suitable for both indoor warehouse and outdoor harsh working conditions, with the advantages of anti-scratch, anti-breakage, impact resistance and wear resistance, and is a practical material turnover tool for multi-scenario operations such as infrastructure construction, sand and stone processing, mine operation and building material storage.
Core Parameters
Model
Processing Capacity (t/h)
Belt Width (mm)
Conveying Length (m)
Climbing Angle (°)
Motor Power (kW)
Mobile Mode
Equipment Weight (t)
Max Feeding Granularity (mm)
YD-600
30-80
600
5-15
0-15
3-5.5
Towed
1.2-1.8
≤200
YD-800
80-180
800
8-20
0-18
5.5-11
Towed / Self-propelled
2.5-3.5
≤300
YD-1000
180-300
1000
10-25
0-20
11-18.5
Self-propelled
4.0-5.5
≤400
YD-1200
300-500
1200
12-30
0-20
18.5-30
Self-propelled
6.5-8.0
≤500
Product Advantages
Flexible Movement: Wheeled chassis, towed/self-propelled optional, no fixed installation, quick transfer, suitable for multi-operation points.
Stable Protection: Skid-proof belt + anti-deviation, anti-spillage and anti-scratch design, no scattering for bulk materials, no damage for packed materials.
Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idlers, impact and wear resistant, suitable for long-term use in harsh outdoor working conditions.
Convenient & Universal: Adjustable conveying length and speed, adapt to various front and rear end equipment, suitable for both temporary and fixed operations.
Applicable Scenarios & Materials
Bulk Material Transfer: Short-distance/temporary transfer of bulk materials such as placer gold raw materials, sand and stone, mine tailings and engineering muck, connect with crushing, sand making and gold panning equipment.
Packed Material Transfer: Handling and transfer of bagged materials such as cement, ore, aggregate and building materials, suitable for turnover of packed materials in warehouses, construction sites and mines.
Multi-scenario Compatibility: Infrastructure construction sites, small and medium sand and stone plants, mine temporary operation points, building material warehouses, beneficiation plants, etc., more efficient for alternating transfer of bulk and packed materials.
