Mining Inclined Belt Conveyor – Heavy Duty Ore Conveying Equipment

It is the core material lifting equipment for mining and sand and gravel production lines, designed for heavy-duty climbing and harsh working conditions.

It can realize stable conveying at 0-45° arbitrary slope, with triple protection against deviation, slip and material falling.

It is suitable for conveying bulk and granular materials such as ore and sand, and can be seamlessly connected with various mining equipment.

Inquiry Now

Product Overview

The mining inclined belt conveyor is the core material lifting and conveying equipment for mines, beneficiation and sand and gravel production lines, specially designed for heavy-duty climbing and harsh working conditions. It adopts wear-resistant and anti-slip belt + heavy-duty welded frame, equipped with triple protection structures against deviation, slip and material falling, and can realize stable conveying at 0-45° arbitrary slope. The equipment is suitable for heavy-duty materials such as block and granular ore, sand and gravel, tailings, and can be seamlessly connected with front and rear production lines such as feeders, crushers, silos and beneficiation equipment. It takes into account both underground and open-pit mine scenarios, with the core advantages of strong climbing capacity, high conveying efficiency and wear resistance. It is an essential equipment for vertical/inclined lifting and long-distance conveying of mining materials.

Core Parameter Specification

Model	Processing Capacity (t/h)	Belt Width (mm)	Climbing Angle (°)	Motor Power (kW)	Conveying Length (m)	Equipment Weight (t)	Max Feeding Granularity (mm)
KP-800	100-200	800	0-30	7.5-15	10-30	3.5-5.0	≤300
KP-1000	200-350	1000	0-35	15-30	10-50	6.0-8.5	≤400
KP-1200	350-500	1200	0-40	30-45	15-60	9.5-12.0	≤500
KP-1600	500-800	1600	0-45	45-75	15-80	15.0-18.5	≤600

Product Advantages & Technical Highlights

Strong climbing capacity: Adapt to arbitrary slope of 0-45°, no slip or material falling under heavy load, lift materials efficiently
Wear resistant: Thickened wear-resistant rubber belt + high manganese steel idler, resistant to ore impact and wear

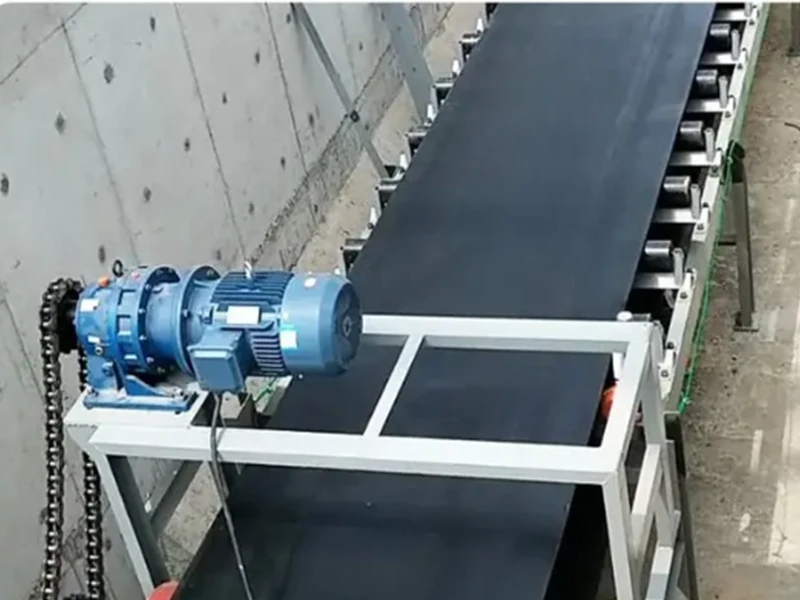

Heavy duty conveying: High torque motor + reinforced belt, can convey large ore without deviation or jamming
Stable and durable: Heavy-duty frame + shock absorption and anti-slip design, anti-deviation protection, 24-hour continuous operation
Flexible adaptation: Customizable conveying length, slope and belt width, connect with the whole series of mining equipment

Applicable Scenarios & Materials

Underground/open-pit mining: Climbing and lifting transportation of ore and slag, connect with crushers and silos to realize material transfer between underground and ground
Sand and gravel plant: Climbing conveying of raw materials such as cobblestone and granite, connect with sand making machines and silos to improve material turnover efficiency
Mine beneficiation plant: Climbing conveying of finished ore and tailings after beneficiation, connect with magnetic separation and gravity separation equipment to complete material classification and transfer
Tailing recovery project: Climbing and lifting of mine tailings and waste residue, realize secondary utilization of resources, adapt to working conditions with height difference
