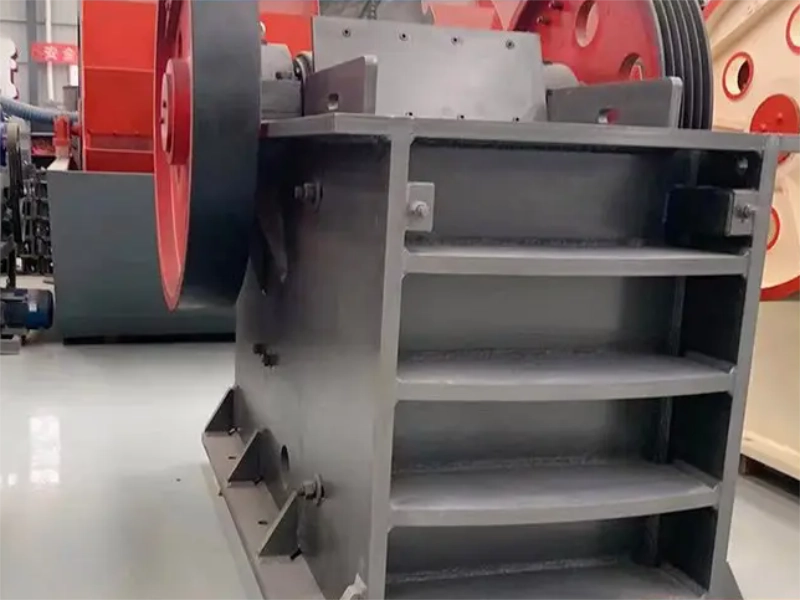

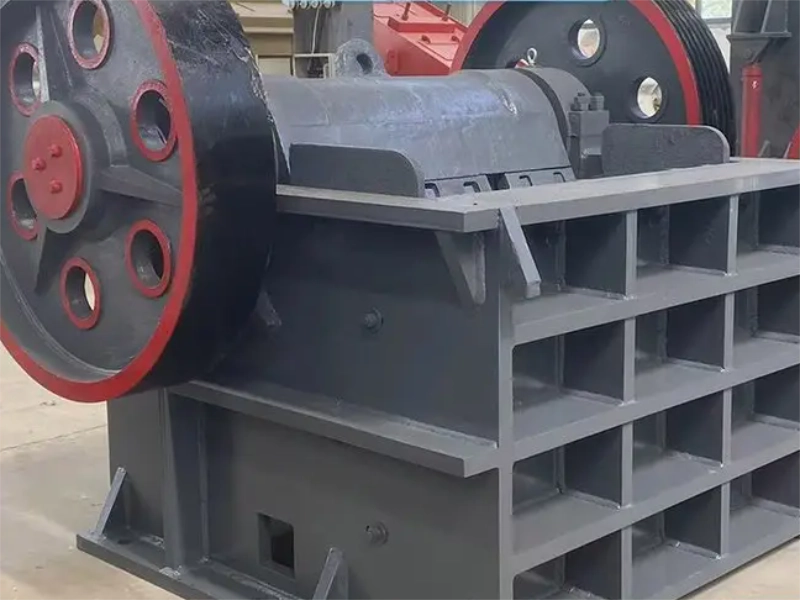

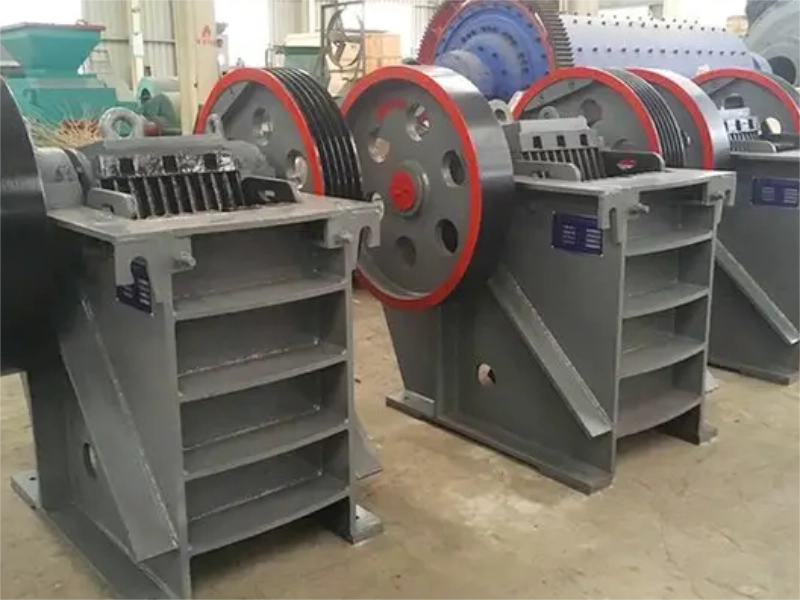

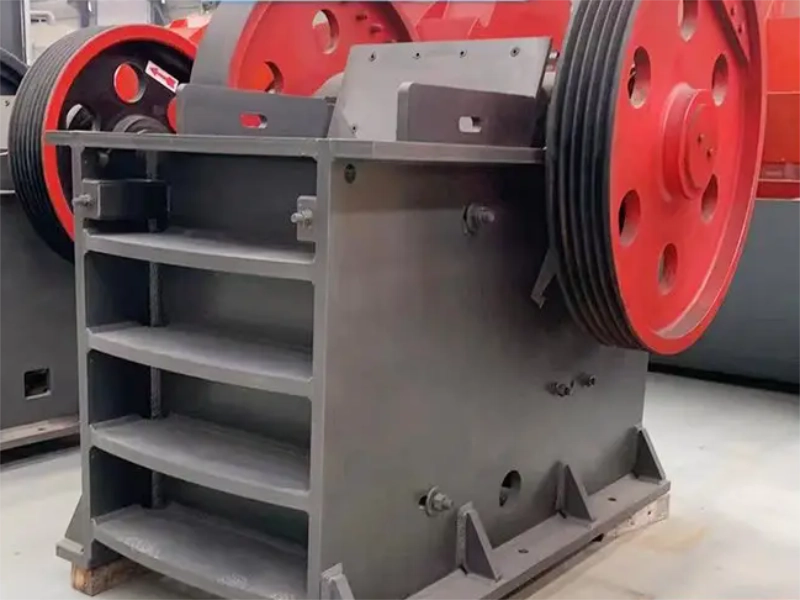

The jaw crusher is an efficient coarse crushing equipment with “extrusion crushing” as the core, which is composed of moving jaw, fixed jaw, eccentric shaft, frame and other core components. Driven by the motor, the eccentric shaft drives the moving jaw to swing back and forth to realize the extrusion and bending crushing of materials. The equipment is divided into fixed and mobile types, covering small, medium and large specifications, with the advantages of simple structure, stable operation, wear resistance and energy saving, intelligent controllability, strong adaptability, safety and environmental protection. It can process various high-hardness large materials and is the first choice for coarse crushing links in various crushing scenarios. It is easy to operate and has low maintenance cost. It can not only complete coarse crushing operation independently, but also form a complete production line with subsequent crushing equipment, and is widely used in mining, sand and stone, construction, metallurgy and other industries to meet the coarse crushing needs of different scales and scenarios.
Core Parameter Specification
Model
Feed Opening Size (mm)
Max Feed Particle Size (mm)
Discharge Particle Size (mm)
Processing Capacity (t/h)
Motor Power (kW)
Eccentric Shaft Speed (r/min)
Total Weight (t)
Crushing Method
PE-250×400 (Small)
250×400
≤210
10-40 (Adjustable)
5-15
15
300
2.8
Double Swing Extrusion
PE-500×750 (Medium)
500×750
≤425
25-60 (Adjustable)
40-110
55
275
15.5
Double Swing Extrusion
PE-900×1200 (Large)
900×1200
≤750
40-100 (Adjustable)
100-250
110
220
68
Double Swing Extrusion
PEY-600×900 (Hydraulic Mobile)
600×900
≤500
30-80 (Adjustable)
80-180
75
250
32
Hydraulic Double Swing Extrusion
Product Advantages & Technical Highlights
Powerful Coarse Crushing: Large bite force of jaw plate, one-time crushing of large ore
Sturdy Structure: Thick and stable body, impact resistant and non-deformable
Adjustable Discharge: Flexible adjustment of discharge opening size to adapt to different production needs
Anti-jamming: Deep cavity crushing, smooth feeding, capable of crushing wet and hard materials
