As a core material transfer equipment for all production lines, it realizes continuous and stable conveying of block, granular and sand materials.
Equipped with anti-deviation and anti-spillage design, it has no material loss during transportation and is suitable for indoor and outdoor working conditions.
Modular assembly for easy installation and maintenance, and can be customized to connect with various front and rear production equipment seamlessly.

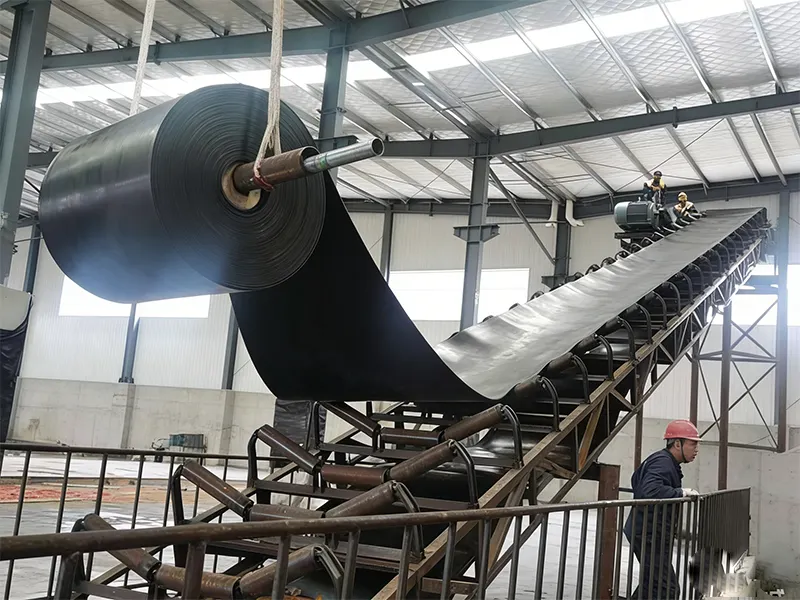

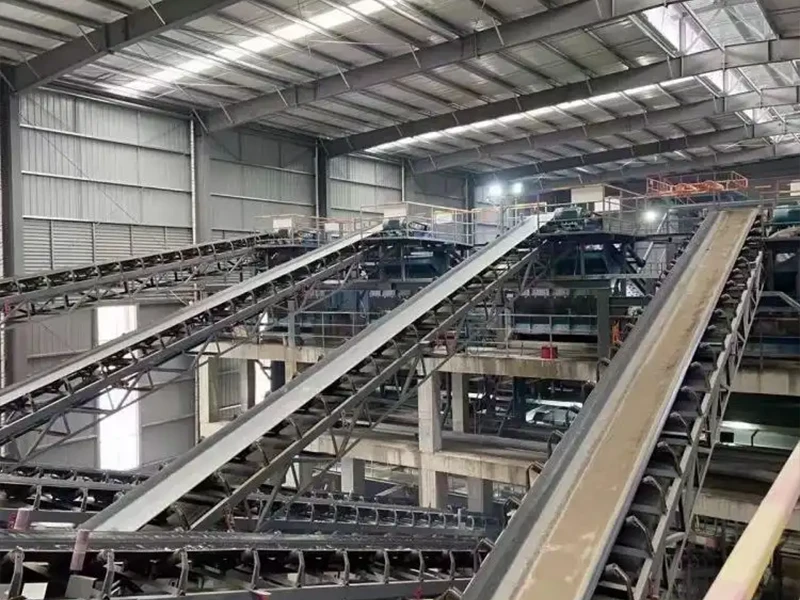

The belt conveyor is the core material transfer equipment for various production lines, adopting wear-resistant rubber belts and one-piece formed frames, focusing on the continuous, stable and efficient conveying of block, granular and sand materials without complicated installation. It can seamlessly connect with feeders, crushers, sand making machines, silos and other front and rear end equipment. The equipment is suitable for various indoor and outdoor working conditions, with the advantages of stable conveying, wear resistance, flexibility and convenience. It can adjust the conveying length and speed on demand, covering the material transfer needs of small, medium and large production lines, and is an essential basic equipment for the smooth flow of materials in the production line.
Core Parameter Specification
Model
Processing Capacity (t/h)
Belt Width (mm)
Climbing Angle (°)
Motor Power (kW)
Conveying Length (m)
Equipment Weight (t)
Max Feeding Granularity (mm)
KP-800
100-200
800
0-30
7.5-15
10-30
3.5-5.0
≤300
KP-1000
200-350
1000
0-35
15-30
10-50
6.0-8.5
≤400
KP-1200
350-500
1200
0-40
30-45
15-60
9.5-12.0
≤500
KP-1600
500-800
1600
0-45
45-75
15-80
15.0-18.5
≤600
Product Advantages & Technical Highlights
Stable Conveying: Anti-deviation and anti-spillage design, no material scattering or loss during transfer
Wear Resistant & Durable: Thickened wear-resistant belt + anti-corrosion idlers, suitable for long-term outdoor use
High-efficiency Transfer: Continuous uninterrupted conveying, greatly improving material turnover efficiency of production lines
Flexible Adaptation: Customizable conveying length and width, suitable for various front and rear production equipment
Easy to Install & Maintain: Modular assembly, convenient installation and commissioning, simple daily maintenance
Applicable Scenarios & Materials
Placer Gold Mining Line: Horizontal/short-distance transfer of placer gold raw materials and sorted materials
Sand and Gravel Production Line: Transfer of river pebbles, granite and finished sand, connecting feeders and crushers
Mining Beneficiation Line: Continuous transfer of ore, tailings and finished ore, docking with beneficiation equipment
Infrastructure/Solid Waste Treatment: Transfer of construction waste, engineering aggregate and crushed stone
