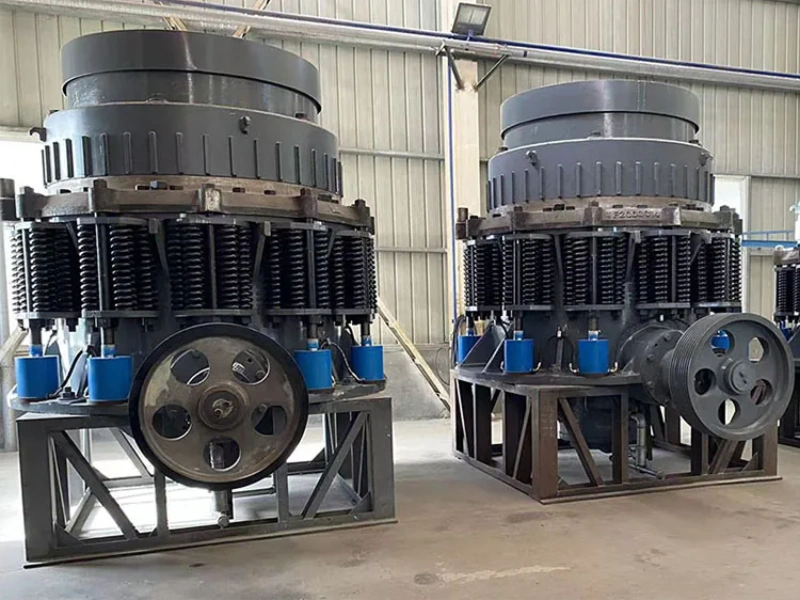

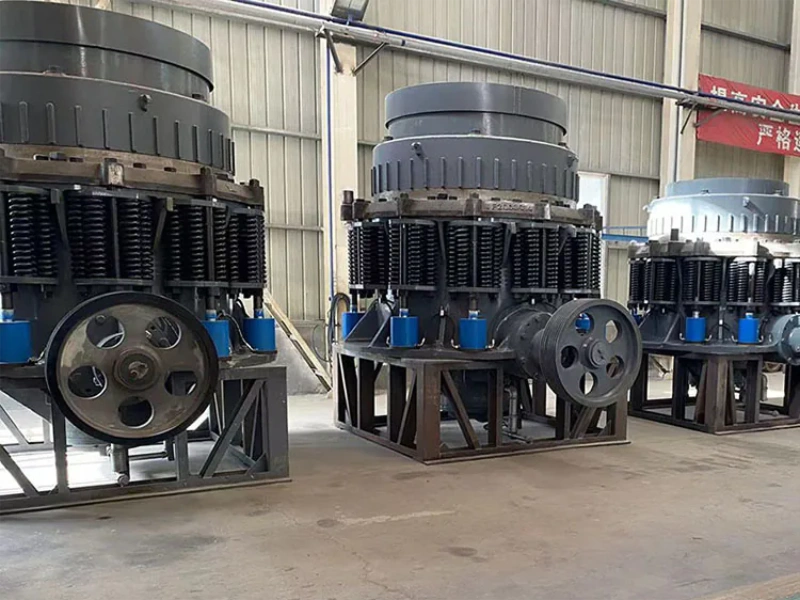

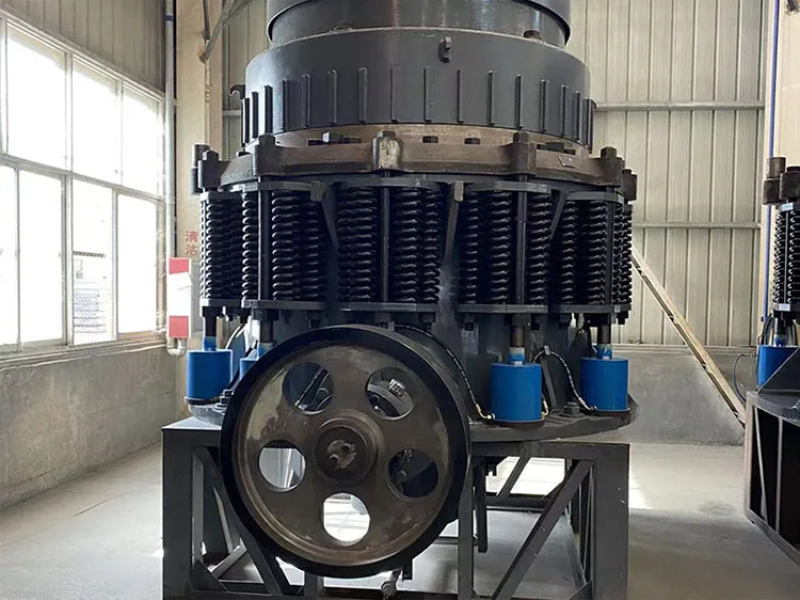

Cone Crusher – High-efficiency Hard Rock Crushing Equipment
It is a high-efficiency medium and fine crushing equipment with extrusion and shearing as the core, realizing material crushing through the cooperation of moving cone and fixed cone.
Strong crushing force, stable operation, excellent particle shape, adjustable discharge size and wide applicability for various high-hardness materials.
Widely used in mining, sand and gravel, metallurgy, construction and other industries for medium and fine crushing of high-hardness ores and rocks.
The cone crusher is a high-efficiency medium and fine crushing equipment with “extrusion + shearing” as the core, composed of crushing cone, concave, eccentric shaft, frame, hydraulic system and other core components. Driven by the motor, the eccentric shaft rotates to drive the crushing cone to swing, and cooperates with the concave to realize the extrusion and shearing crushing of materials. The equipment is divided into fixed and mobile types, covering small, medium and large specifications, with the advantages of firm structure, stable operation, wear resistance and energy saving, intelligent control, strong adaptability, safety and environmental protection. It is mainly suitable for crushing high-hardness materials, with uniform finished product granularity and high-quality particle shape, and can process a variety of medium and high-hardness materials. It is easy to operate and low in maintenance cost, which can not only complete medium and fine crushing operations independently, but also form a complete production line with jaw crushers and other equipment. It is widely used in mining, sand and gravel, metallurgy, construction and other industries, and is the first choice for medium and fine crushing operations of high-hardness materials, meeting the crushing operations of different scales and different finished product requirements.
Core Parameters & Specifications
Model
Feed Opening Size (mm)
Max Feed Granularity (mm)
Discharge Granularity (mm)
Processing Capacity (t/h)
Motor Power (kW)
Spindle Speed (r/min)
Machine Weight (t)
Crushing Type
PY-600 (Small)
100×600
≤80
3-15 (Adjustable)
15-40
30
1100
7.5
Extrusion Cone Crushing
PY-1200 (Medium)
150×1200
≤120
5-25 (Adjustable)
50-120
75-90
850
18.8
Extrusion Cone Crushing
PY-1600 (Large)
200×1600
≤180
8-35 (Adjustable)
130-250
132-160
700
36.5
Extrusion Cone Crushing

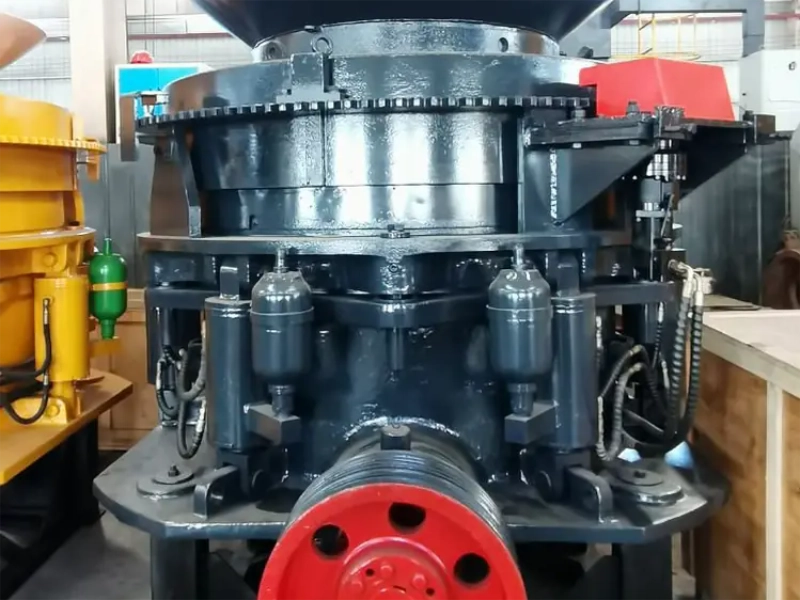

PYY-1800 (Hydraulic Mobile)
220×1800
≤200
10-40 (Adjustable)
180-300
200
650
65
Hydraulic Extrusion Cone Crushing
Product Advantages & Technical Highlights
Strong crushing force: Laminated crushing, ideal for hard rock, large crushing ratio and high output
Stable operation: Suitable for long-term heavy load in mines, continuous operation without jamming
Excellent particle shape: Uniform finished product granularity, high cube content and good appearance
Wear resistant and durable: Wear-resistant materials for core components, long service life
Adjustable discharge: Flexible adjustment of discharge opening to meet different production needs
Wide applicability: Efficient crushing of high-hardness ores and rocks
Applicable Scenarios & Materials
Applicable Scenarios
Medium and fine crushing in large mines
Sand and gravel aggregate production line
Hard rock crushing
Gold ore dressing supporting
High-quality aggregate production in stone yards
Applicable Materials
Granite, basalt, cobblestone, iron ore, gold ore, quartz stone, limestone
